battery packs are the heart of energy storage systems (ESS), electric vehicles (EVs), industrial area, and even small power tools—but their performance hinges on one critical factor:cell balance. When individual battery cells (LFP, NMC, or SIB) drift in voltage or capacity, your system loses range, lifespan, and safety. That’s where active balancers—specifically capacitive and inductive models—come in.

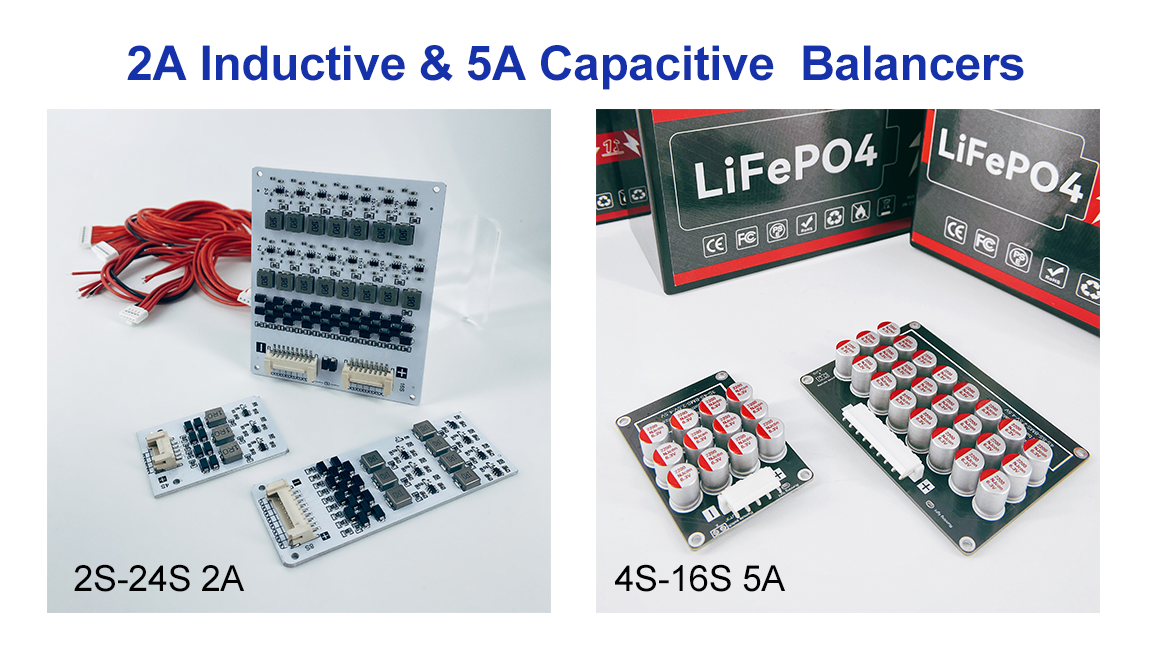

We offer two active balancers designed to solve cell imbalance for nearly any application: our 2S–24S 2A Inductive Balancer and 4S–16S 5A Capacitive Balancer. Both work seamlessly with LFP, NMC, and SIB batteries, and they’re built to adapt—from small power tools to high power industrial ESS. Let’s break down why battery balancing matters, how these balancers work, and which is right for your project.
No two battery cells are identical—even from the same production batch. Manufacturing variations, temperature fluctuations, and repeated charging/discharging cause cells to drift: some hold more charge, others drain faster. Left unaddressed, this imbalance leads to:
- Shorter battery life: Overcharged cells degrade faster; undercharged cells waste capacity. A single imbalanced cell can cut overall pack life by 30–50%.
- Reduced performance: Your ESS or EV won’t reach its rated capacity—e.g., an electric tool dies early, or an industrial ESS fails to store enough energy for peak demand.
- Safety risks: Overcharged cells can overheat, swell, or even catch fire—especially critical for high-voltage systems like EVs (electric vehicles) or industrial ESS (energy storage system).

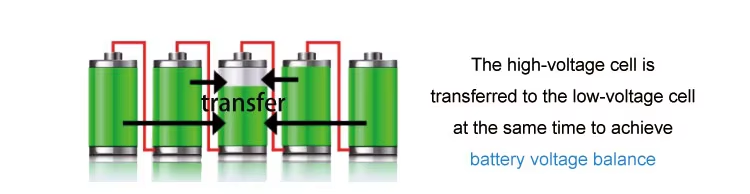

Active balancers fix this by transferring energy between cells, ensuring every cell charges/discharges uniformly. Unlike passive balancers (which waste energy as heat), our active models are efficient, fast, and suitable for high-demand scenarios.
Active balancers use energy transfer to equalize cell voltages—they work in two key phases, covering the entire battery cycle:
When the battery pack charges, some cells reach full voltage faster than others. Our capacitive and inductive balancers detect this drift and redirect excess energy from “overcharged” cells to “undercharged” ones:
- For example, if a 4S LFP pack (14.8V nominal) has one cell at 3.6V (full) and others at 3.4V, the balancer moves energy from the 3.6V cell to the others, ensuring all reach 3.6V simultaneously.
- This prevents overcharging (a top cause of LFP/NMC degradation) and ensures the pack charges to its full capacity.
During discharge (e.g., when an EV drives or an ESS powers equipment), some cells drain faster. The balancer shifts energy from “higher-voltage” cells to “lower-voltage” ones, keeping all cells above the minimum safe voltage (e.g., 2.5V for LFP):
- This avoids undercharging (which damages cell chemistry) and ensures the pack delivers consistent power until the entire pack is depleted.
The result? Maximum capacity, longer battery life, and zero safety risks from imbalanced cells.
We’ve engineered two active balancers to cover every use case—from small power tools to industrial ESS. Both support LFP, NMC, and SIB batteries, but they excel in different scenarios:

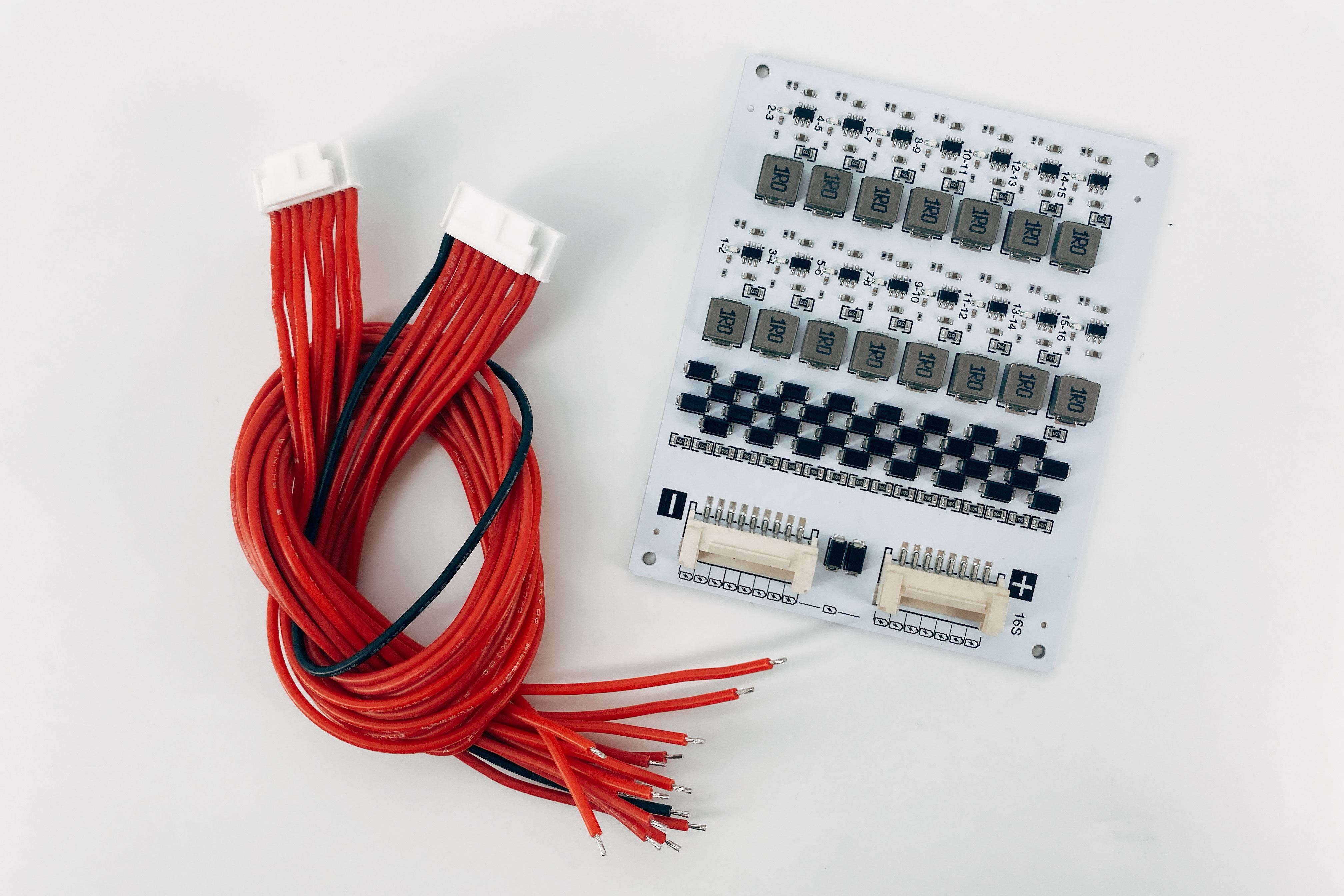

Inductive balancers use inductors (coils) to transfer energy between cells. They’re ideal for systems that need wide compatibility and stable performance across high cell counts:
- Specs: 2S–24S cell configuration, 2A balancing current, works with LFP/NMC/SIB.
- Strengths: High energy transfer efficiency (up to 90%), handles more cell strings (up to 24S—perfect for industrial ESS or large EV battery packs), and performs reliably in extreme temperatures (-20°C to 60°C).
- Best for: Industrial energy storage systems (ESS), large EVs (e.g., commercial vans), and high-voltage backup systems—where long-term stability and multi-cell support are critical.

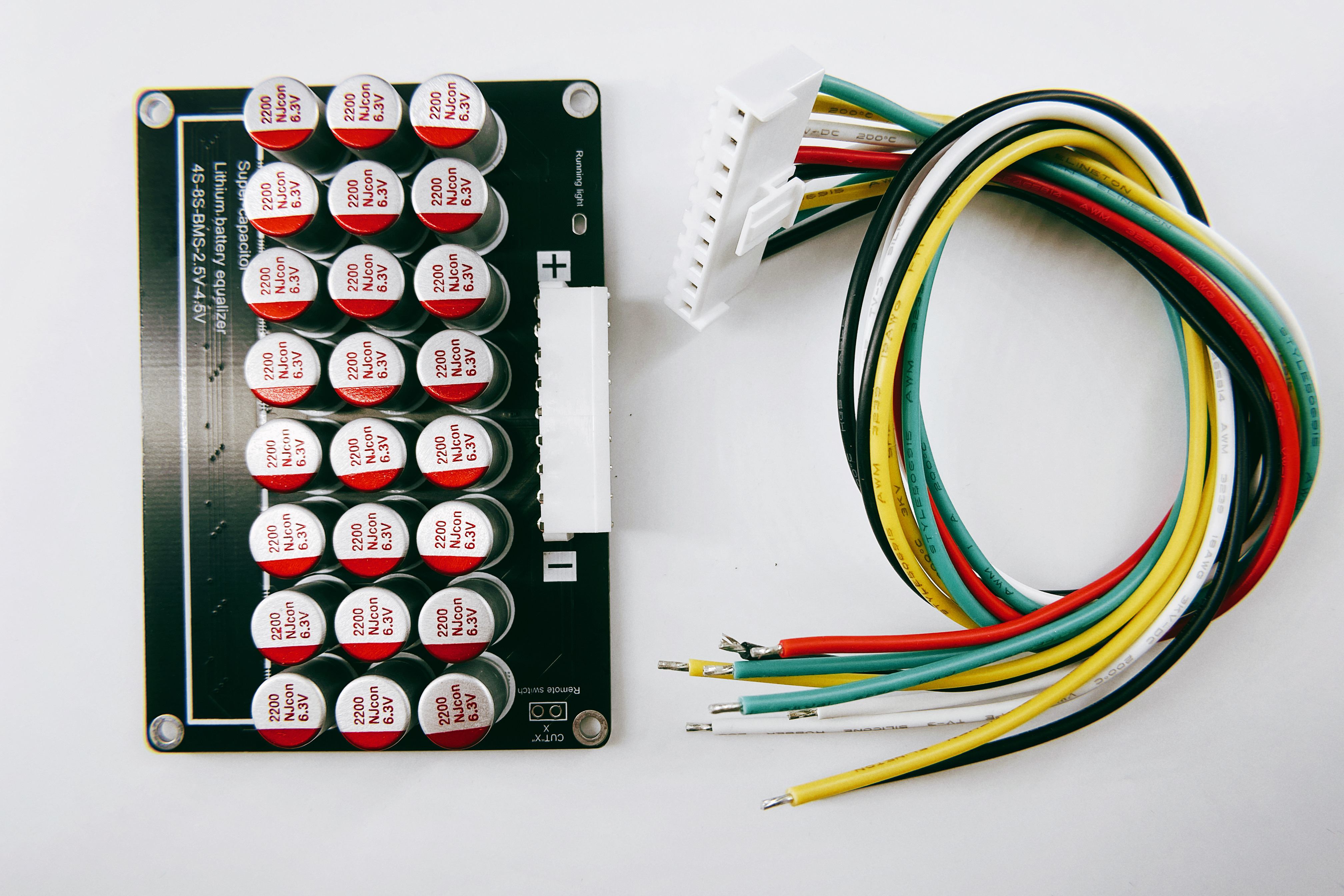

Capacitive balancers use capacitors to shuttle energy between cells. They shine in applications that need fast response times and compact design:
- Specs: 4S–16S cell configuration, 5A balancing current, compatible with LFP/NMC/SIB.
- Strengths: Blazing-fast balancing (ideal for quick-charging systems like power tools or small EVs), smaller form factor (fits tight spaces in portable gear), and lower cost for mid-range cell counts.
- Best for: Electric tools (e.g., cordless drills), small EVs (e.g., e-scooters), residential ESS, and automotive auxiliary batteries—where speed and size matter.
The best part about our capacitive and inductive balancers? They’re application-agnostic. Whether you’re building:
- A residential ESS to store solar energy (use our 4S–16S capacitive balancer for compact efficiency);
- An industrial ESS powering a factory (our 2S–24S inductive balancer handles high cell counts);
- Electric tools for DIY or professional use (capacitive balancers’ fast response keeps tools running longer);
- EVs or automotive systems (inductive balancers’ temperature resilience works in engine bays);
Both models deliver the active balancing your battery pack needs. And with support for LFP, NMC, and emerging SIB batteries, your battery will safer and lifespan will longer.
Battery imbalance doesn’t have to limit your energy storage system’s performance. Our capacitive (4S–16S 5A) and inductive (2S–24S 2A) balancers are engineered to keep your LFP/NMC/SIB batteries balanced, safe, and long-lasting—no matter the application.
For technical specs, sample requests, or a custom recommendation for your ESS, industrial gear, or EV project, contact our team today: info@xj-bms.com
