BMS for Solar Lamps: Ultra-Thin Bare BMS Selection Guide for Solar Street Lights
Solar street lamp BMS is one of XJBMS’s core competitive advantages. With years of in-depth industry experience, our factory has long specialized in the research, development, and production of dedicated battery protection boards for solar lighting systems. We have accumulated rich technical precipitation and mature mass production experience in the solar lamp field. Especially our complete series of ultra-thin, ultra-light, mini bare BMS perfectly matches the compact installation structure and low-power cycle working characteristics of solar street lights, enabling us to maintain long-term leading product competitiveness in the global solar lighting supporting market.

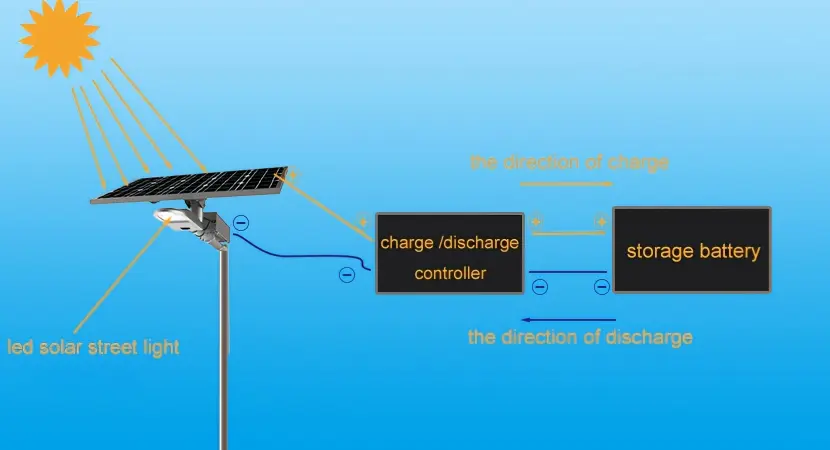

Working Principle of Solar Street Lights: How Solar Energy Converts to Lighting Energy
The entire working logic of solar street lights relies on the photovoltaic effect to realize energy conversion, storage, and automatic lighting circulation, which can be divided into two core stages:
Daytime Energy Storage Stage: Solar panels absorb solar radiation energy and convert light energy into DC electrical energy through semiconductor photovoltaic conversion. The matched BMS and controller perform constant current and constant voltage regulation to safely charge the lithium battery pack, storing clean solar energy in the battery.
Night Lighting Discharge Stage: As ambient light dims at night, the system automatically triggers the discharge mode. The battery pack outputs stable current through the BMS protection system to supply power to the LED lamp, realizing long-duration street lighting. The BMS acts as the core safety barrier throughout the process, preventing overcharge, overdischarge, overcurrent, and short circuits to ensure stable cycle operation of the solar lighting system all year round.
Core BMS Requirements for Solar Street Lights
Solar street lights have unique outdoor working scenarios and low-power cycle operating characteristics, putting forward targeted professional requirements for supporting BMS, which are completely different from power-type equipment BMS:
- Ultra-Thin & Ultra-Light Mini Size: Solar lamp battery boxes have limited internal space and lightweight design requirements. Bulky BMS cannot be installed, so ultra-thin bare board is the mainstream industry standard.
- Low-Power Cycle Stability: Solar lights adopt intermittent charging and long-term low-current discharge operation. The BMS needs ultra-low self-consumption and excellent low-load cycle stability to avoid battery power loss and premature aging.
- Outdoor Environmental Adaptability: Long-term outdoor operation requires BMS to resist high and low temperature changes, with stable protection performance to adapt to complex outdoor climatic environments.
- Precision Overcharge & Overdischarge Protection: Solar charging is affected by weather and light intensity with unstable current. High-precision BMS protection can effectively avoid battery damage caused by irregular charging and extend battery service life.

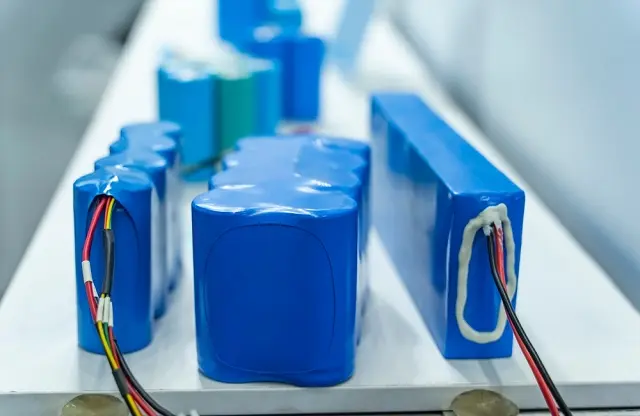

Common Battery Cell Specifications for Solar Street Lights
Solar street lighting systems are dominated by low and medium voltage small-capacity battery packs, with highly standardized cell specifications:
- Mainstream String Counts: 3S and 4S lithium battery packs are the most widely used, corresponding to 11.1V and 14.8V system voltages, fully matching low-power LED solar street lights, garden lights, and landscape lights.
- Common Cell Types: 18650 lithium-ion cells are the mainstream choice, featuring low cost, stable performance, and long cycle life. A small number of high-end landscape solar lamps adopt compact polymer lithium batteries.
- Capacity Matching: Conventional solar street lamp batteries range from 2000mAh to 10000mAh, matched with low-current 3A–45A BMS to meet daily cycle charging and discharging needs.
How to Choose the Right BMS for Solar Street Lights
When selecting a solar lamp BMS, users should match the model according to battery string count, capacity, and installation space, following three core principles:
- Match String Count Precisely: Select 3S BMS for 3S battery packs and 4S BMS for 4S battery packs to avoid protection failure caused by mismatched string counts.
- Priority to Ultra-Thin Bare Board: For integrated solar lamp batteries with limited space, ultra-thin bare BMS is the first choice, which saves space and reduces overall equipment weight.
- Select Current According to Lamp Power: Low-power small solar garden lights match 3A–10A low-current BMS; medium and large outdoor street lights match 10A–45A medium-current BMS to ensure stable discharge without power attenuation.
High-Demand Regions for Solar Street Lights
Solar street lights feature zero electricity bills, environmental protection, energy saving, and no wired wiring, showing huge market demand in multiple regions worldwide:
- Southeast Asia, Africa, and South America: These regions have sufficient sunlight all year round, underdeveloped municipal power facilities, and high demand for outdoor public lighting, making them the largest consumer markets for solar street lights.
- European and American Rural Areas: Focus on environmental protection and energy saving, widely used in rural roads, villa courtyards, parks, and scenic spot landscape lighting.
- Island and Remote Areas: No municipal power supply support, solar lighting becomes the most reliable and cost-effective long-term lighting solution.
XJBMS Ultra-Thin Bare BMS Series for Solar Lamps (Recommended Models)
All the following recommended models are ultra-thin, ultra-small, and ultra-light bare boards, specially customized for solar street lights, garden lights, solar landscape lights, and outdoor solar lighting equipment. They feature compact size, low self-consumption, stable cycle performance, and high cost performance, covering full-range 3S/4S low-current specifications required by the solar lighting industry.
3S Solar Lamp BMS Series
- XJ-D040: 3S 3A, ultra-mini size, perfect for tiny solar garden lights and small landscape lamps

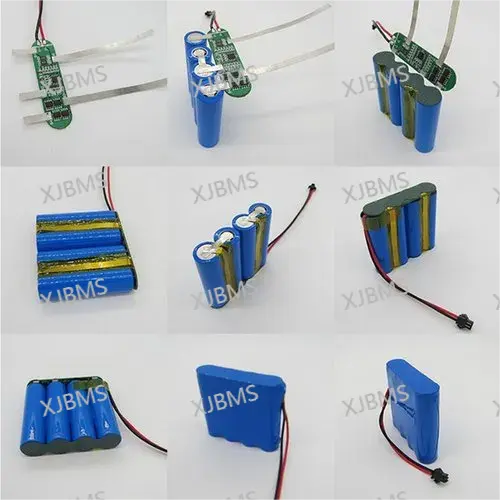

- XJ-D164: 3S 5A/10A, dual current optional, universal for most low-power solar street lights
- XJ-D102: 3S 10A–25A, medium current specification, suitable for medium-sized outdoor solar street lamps
- XJ-D001: 3S 20A–45A, high current version, matching high-brightness high-power solar street lighting equipment
4S Solar Lamp BMS Series
- XJ-D133: 4S 4A/8A, low-current ultra-thin model, ideal for small solar courtyard lights
- XJ-D468: 4S 5A/10A, stable low-cycle performance, widely used in standard 4S solar lamp batteries
- XJ-3434: 4S 10A, fixed universal current, high cost performance for mass standardized solar lamp projects
- XJ-D432: 4S 10A–25A, wide current range, adaptable to multiple power-level 4S solar lighting systems
- XJ-D096: 4S 20A–40A, medium and high current, dedicated for high-power 4S solar street lights and large outdoor solar lamps
Conclusion
As the global new energy outdoor lighting industry continues to develop, solar street lights will become more popular in urban and rural public facilities, scenic spots, and residential landscapes. Ultra-thin mini bare BMS is the core matching component for solar lighting battery packs. With professional industry technology, full-spec product coverage, and ultra-high cost performance, XJBMS provides the most reliable dedicated BMS solutions for global solar lamp manufacturers and engineering projects.
