Best Electric Motorcycle BMS: Complete Bare, Hardware & Smart Bluetooth BMS Guide
Electric motorcycles and scooters have become the most popular urban mobility tools worldwide. Thanks to their lightweight body, affordable price, small footprint, and outstanding flexibility, two-wheeled electric vehicles perfectly solve short-distance commuting pain points. More importantly, on rugged mountain roads, bumpy rural routes, and congested urban streets where four-wheel vehicles struggle to pass, electric two-wheelers deliver far better accessibility and practicability.
As the core protection component of electric two-wheeler lithium battery packs, a high-qualityelectric motorcycle BMS (Battery Management System) directly determines vehicle power stability, riding safety, and battery service life. For over a decade, XJBMS has been fully specialized in two-wheeler BMS R&D and manufacturing. With more than 10 years of industry experience, we focus 100% on electric motorcycle and e-scooter BMS solutions, accumulating over a thousand mature models to cover global two-wheeler market demands.
3 Main Categories of Our Electric Motorcycle BMS
We classify our two-wheeler BMS into three core series to match different cost budgets, power demands, and intelligent upgrade needs: bare board BMS, hardware BMS, and smart Bluetooth BMS. From basic cost-effective versions to high-end intelligent multi-function models, we provide one-stop battery protection solutions for all electric two-wheelers.

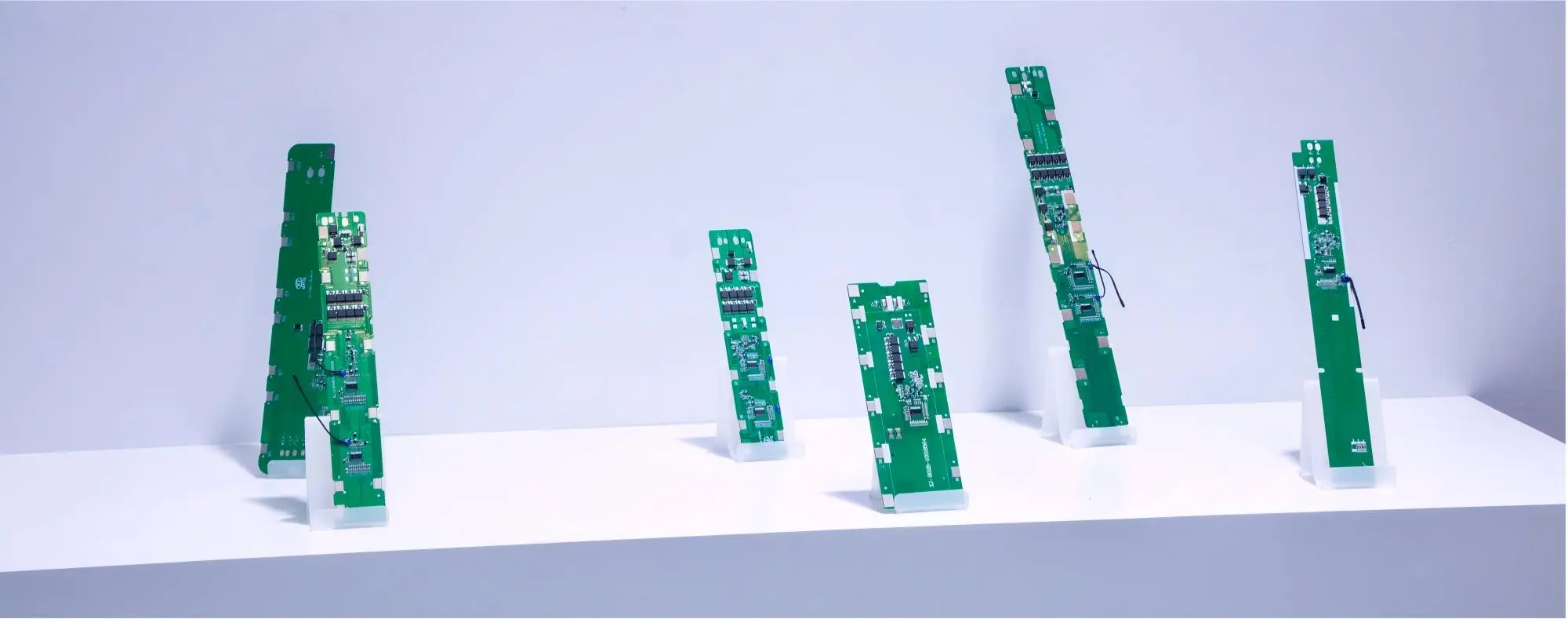

Bare Board BMS (Ultra-Thin, Lightweight & Cost-Effective)
Our bare board BMS features an ultra-thin and lightweight design, which can be closely attached to the battery cells to save internal battery box space. With ultra-low pricing and high cost performance, this series adopts fixed string design (single model for fixed string count), covering 7S–13S string range and 10A–35A current range. It is the best choice for standard civilian electric scooters and low-power commuter two-wheelers with stable daily operation and low failure rate.
Recommended Bare Board BMS Models
- XJ-B008V4: 10S 15A/20A, separate port, size 256*38*4mm
- XJ-D493: 10S 15A–25A, separate port (Special for Xiaomi Scooters), size 296*34*4mm
- XJ-B028V1: 10S 25A, separate port, size 185*64*4mm
- XJ-D440: 10S 20A, common port, size 178*38*4mm
- XJ-D485: 13S 30A, separate port, size 245*64*4mm
- XJ-D356V2: 13S 20A, separate port, size 245*64*6mm
- XJ-D482: 13S 30A, separate port, size 355*58*4mm
- XJ-D481: 13S 30A, separate port, size 281*99*4mm
- XJ-D480: 13S 30A, separate port, size 290*79*4mm

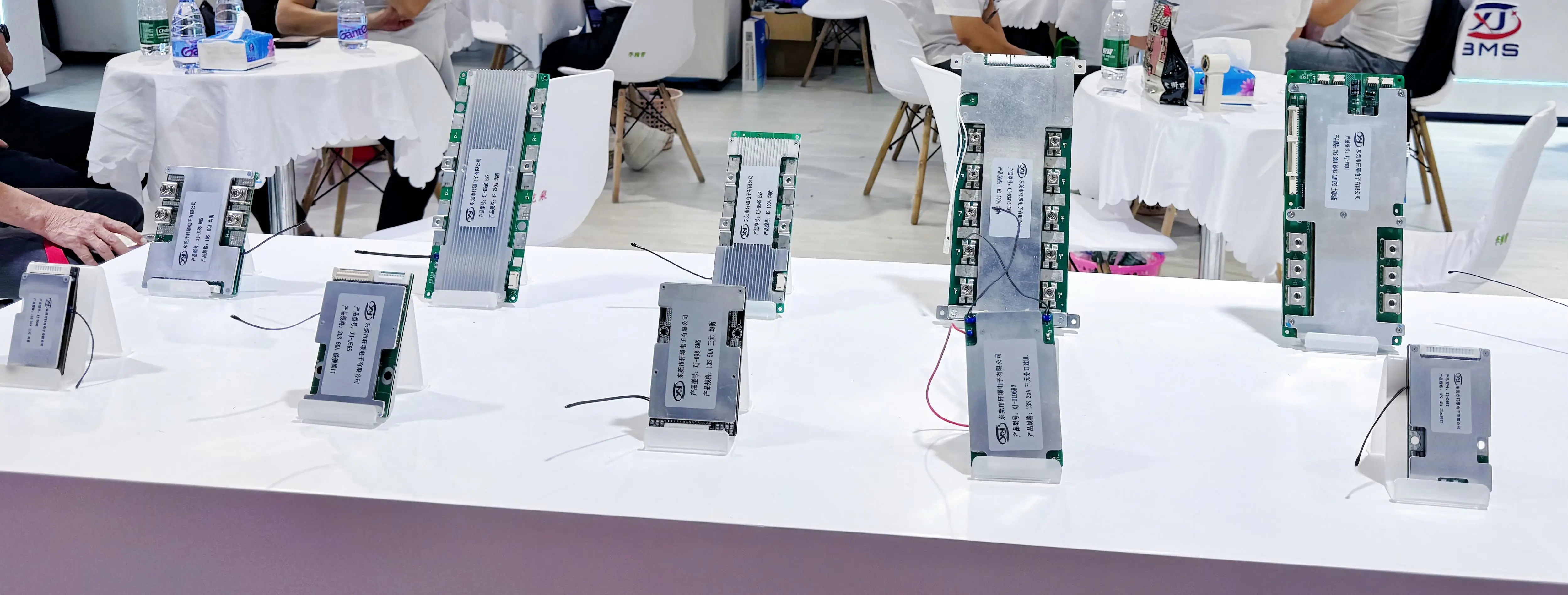

Hardware BMS (Excellent Heat Dissipation & Wide Specification Coverage)
Equipped with professional heat sinks, our hardware BMS achieves excellent heat dissipation performance, effectively solving overheating risks during high-current and long-time riding. This series boasts an ultra-wide specification coverage: 4S–24S string range and 10A–300A current range, supporting low to high power two-wheelers. Balancing function, NTC temperature control, and weak current switch are optional customized configurations (non-standard), adapting to high-power electric motorcycles, heavy-load scooters, and complex road condition operation scenarios.
Recommended Hardware BMS Models
- XJ-D598: 10S 10A–20A, separate port, size 60*32*7.5mm
- XJ-D198: 13S 10A–25A, separate port, size 60*32*7.5mm
- XJ-D308: 11S–14S 20A–30A, separate port, size 65*35*10mm
- XJ-D603: 6S–10S 10A–30A, common port, size 60*32*7.5mm
- XJ-D068: 4S–21S 10A–40A, common port, size 100*60*10mm
- XJ-D098: 4S–14S 20A–50A, common port, size 100*60*8mm
- XJ-D565: 6S–24S 30A–60A, common port, size 100*60*10mm
- XJ-D495: 6S–16S 40A–60A, common port, size 90*50*7mm
Smart Bluetooth BMS (Multi-Functional & Intelligent Monitoring)
Our high-end smart Bluetooth BMS is designed for intelligent electric two-wheelers and commercial fleets, with 4S–24S wide string coverage and 30A–250A current range. It supports three independent data display methods: LCD screen display, mobile APP monitoring (XJ-I-BMS), and host computer data viewing. Rich reserved industrial interfaces including CAN, RS485, UART, and GPS realize real-time battery data monitoring, positioning anti-theft, and intelligent fleet management. Most models support automatic string identification, weak current switch, and battery heating function, perfectly adapting to high-end intelligent electric motorcycle scenarios.
Recommended Smart Bluetooth BMS Models
- XJ-F002: 4S–20S 30A–120A, automatic string identification, with RS485, weak current switch, heating function
- XJ-F002A: 4S–20S 150A–250A, automatic string identification, with RS485, weak current switch, heating function
- XJ-F002C: 4S–20S 30A–60A, automatic string identification, with weak current switch, heating function
- XJ-F005: 21S–24S 30A–140A, with RS485, CAN, GPS, weak current switch, heating function
- XJ-F013: 4S–20S 30A–120A, with RS485, CAN, GPS, weak current switch, heating function
Why Choose Our Factory for Electric Motorcycle BMS?
Unlike general BMS manufacturers with scattered product lines, our factory has focused on electric two-wheeler BMS field for more than 10 years, focusing on scene optimization for electric motorcycles and scooters. We have accumulated over a thousand mature BMS models, fully covering low-power, medium-power, high-power, civilian, and commercial two-wheeler application needs.
Whether you need standard off-the-shelf BMS bulk procurement, personalized custom board development, or professional battery pack protection scheme design, we can provide reliable one-stop solutions. All products are strictly tested for vibration resistance, high-temperature resistance, and current stability, fully adapting to global complex road conditions and long-term high-frequency riding scenarios.
Conclusion
Electric two-wheelers will remain the mainstream global short-distance mobility tool, and the market demand for professional electric motorcycle BMS will continue to grow. With ultra-cost-effective bare boards, high-stability heat-dissipating hardware boards, and multi-functional intelligent Bluetooth boards, we cover all two-wheeler battery protection scenarios. With ten years of professional manufacturing experience and rich product reserves, we are your most reliable partner for global electric motorcycle BMS supply and customized solutions.
