Battery Management System (BMS) for Power Tools

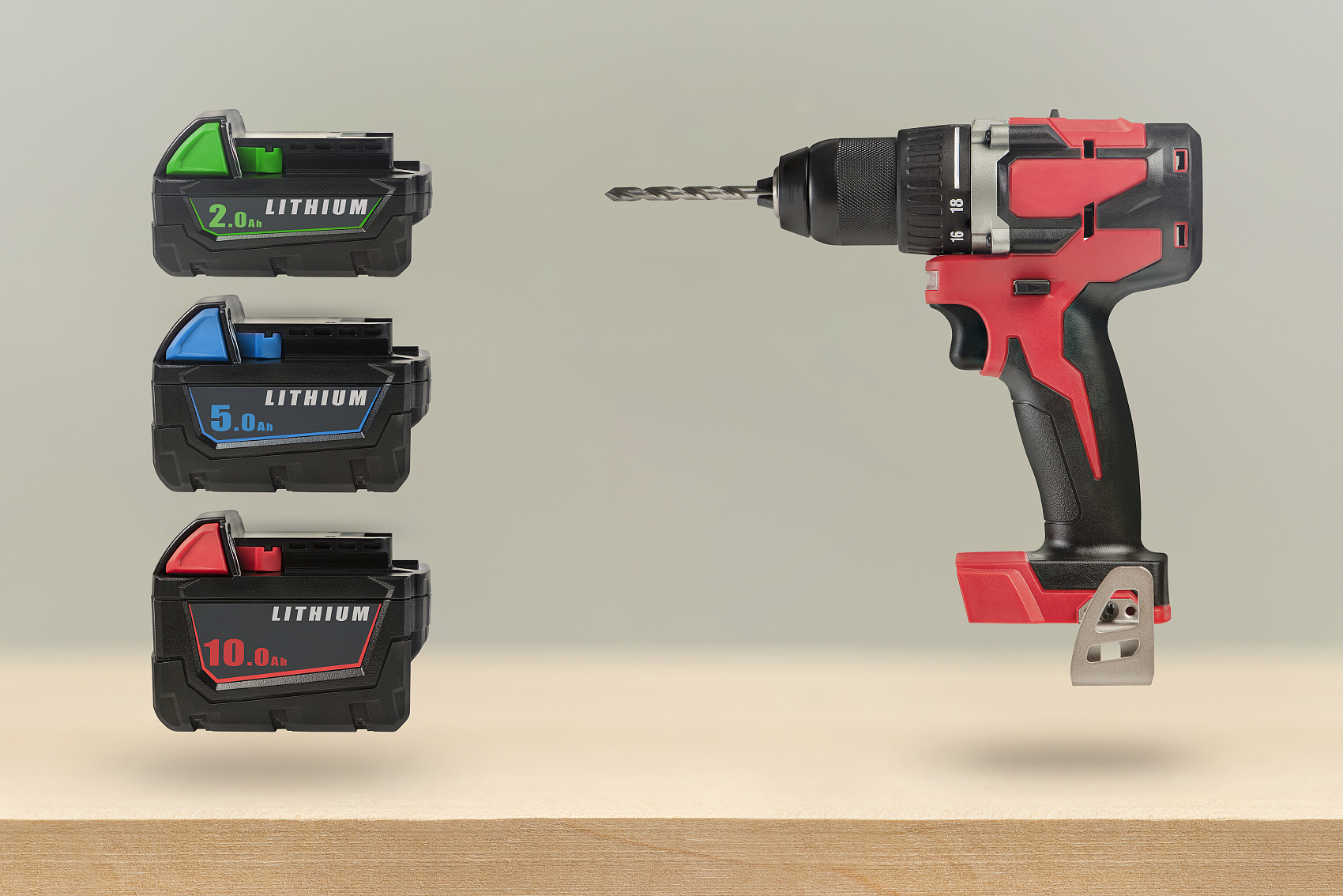

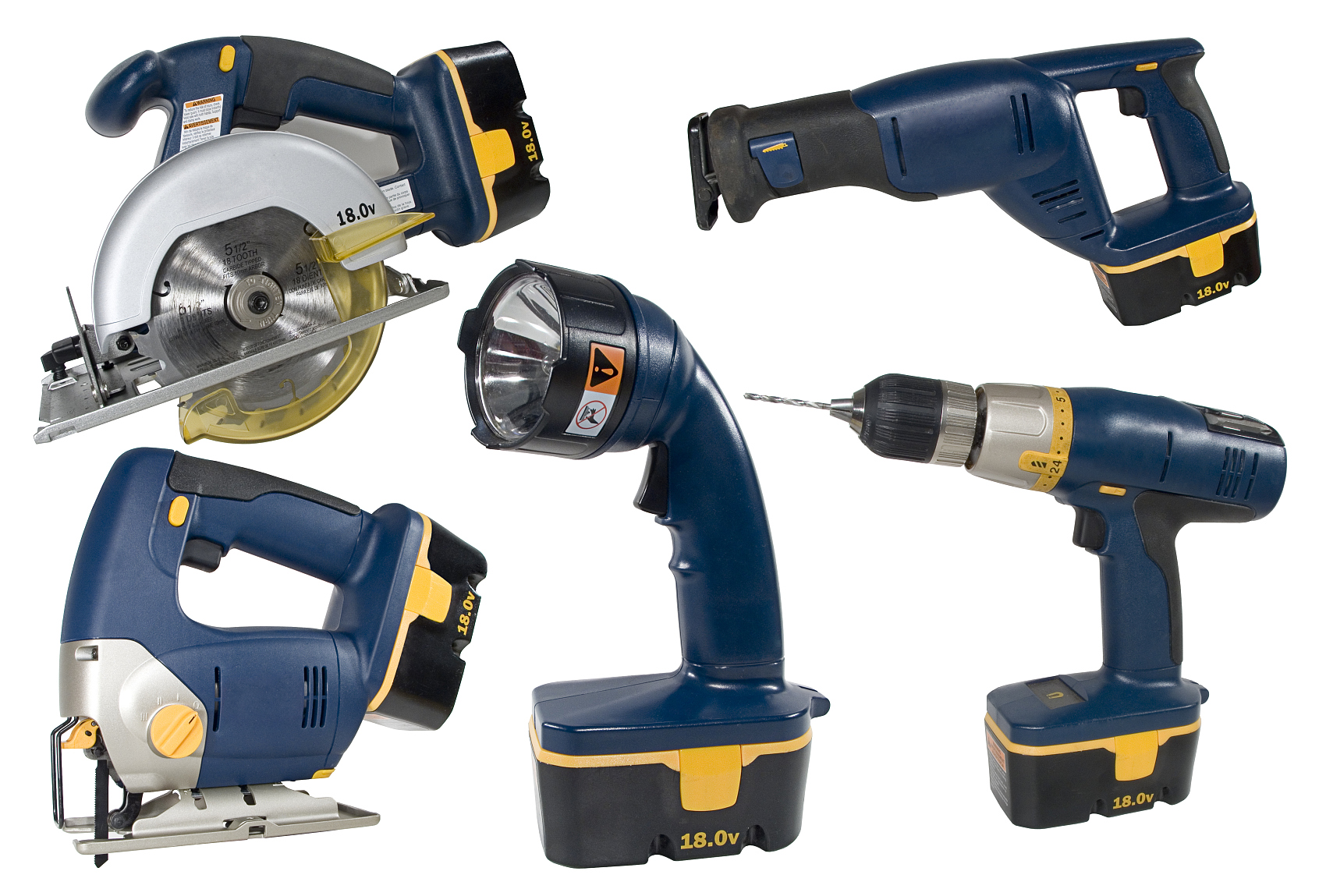

I. What Are Power Tools?

Power tools are available in a wide range of types, which can be roughly classified by power and application:

II. battery Voltage, Number of Cells, and Current

Power tool battery packs consist of multiple lithium-ion cells (usually 18650 or 21700) connected in series (to increase voltage) and parallel (to increase capacity).

Notes:

- 20V Max vs 18V: They are essentially the same specification. "20V Max" refers to the no-load voltage (4V × 5 cells), while "18V" is the rated voltage (3.6V × 5 cells). These terms are often used interchangeably in the market.

- Current Value: Determined by the power of the tool’s motor. For example, an 18V 500W tool has an operating current of approximately `500W / 18V ≈ 28A`. The peak current (e.g., during startup or jamming) will be even higher.

III. How to Choose a Battery Management System (Bms) for Power Tools?

Power tools have extremely strict requirements for BMS—power BMS is completely different from ordinary energy storage BMS. When purchasing, focus on the following core parameters:

1. Continuous Discharge Current (Most Critical Indicator)

- Requirement: The BMS’s continuous discharge current must be greater than the tool’s maximum operating current, with a sufficient margin (20%-30% is recommended).

- Example: If your angle grinder has an operating current of 25A, choose a BMS with continuous discharge capacity ≥ 30A.

- Consequence: If the current is insufficient, the BMS will trigger overcurrent protection due to overheating, causing the tool to shut down suddenly. This seriously affects work efficiency and may even damage the BMS.

2. Peak Discharge Current

- Requirement: Must withstand the instantaneous high current generated when the tool starts or jams suddenly (usually 2-3 times the operating current) and maintain this for a period without triggering protection.

- Example: For the 30A BMS mentioned above, its peak current capacity should ideally reach 60A-90A and last for a few seconds.

3. Hardware and MOSFET Selection

- MOSFETs: These are key components determining current capacity. Always ask the supplier for the MOSFET model used in the BMS, then check its Datasheet (technical manual) to confirm its actual performance.

- Low Internal Resistance (Low Rds(on)): Lower internal resistance means less heat generation and higher efficiency. Power BMS must use low-resistance MOSFETs.

4. Basic Protection Functions

- Overcharge Protection: Cuts off charging when the voltage of each cell reaches 4.25V ± 0.05V.

- Overdischarge Protection: Cuts off discharge when the voltage of each cell drops to 2.8V ± 0.1V (some tools require a higher threshold, e.g., 3.0V, to prevent cell damage).

- Overcurrent/Short-Circuit Protection: Cuts off the circuit instantly (response time in microseconds) when the current exceeds the set value or a short circuit occurs.

- Temperature Protection: Must be equipped with an NTC Temperature Sensor to stop operation when the battery temperature is too high (e.g., 70℃) or too low (e.g., 0℃).

5. Balancing Function

- Passive Balancing: Sufficient for power tools. At the end of charging, resistors are used to discharge cells with higher voltages, keeping the voltage of all cells consistent and extending the overall lifespan of the battery pack.

6. Communication Protocol (Essential for Smart Tools)

Many branded tools (e.g., Dewalt, Milwaukee) have communication protocols between the battery and the tool host. Third-party BMS may require protocol cracking or simulation; otherwise, the tool may not work or display errors. For general DIY users, choose protocol-free or universal BMS.

IV. Summary: Purchasing Checklist

When selecting or replacing a BMS for your power tool, verify the following items:

1. Confirm Battery Voltage: How many cells (how many "S") is my battery pack?
2. Confirm Tool Current: What is the power of my tool, and what are its approximate normal operating current and peak current? (Roughly estimate using the formula: `Power (W) / Voltage (V) = Current (A)`)
3. Core Parameters: Do the BMS’s continuous discharge current and peak current meet the requirements with a sufficient margin?
4. Protection Functions: Are overcharge, overdischarge, overcurrent, short-circuit, and temperature protection all available?
5. Balancing Function: Does it have passive balancing?
6. Protocol Issue: Does my tool host require a specific communication protocol?
7. Craftsmanship & Heat Dissipation: Is the BMS board well-made? Do the MOSFETs come with thermal silicone pads or require heat sinks for installation?

V. Recommend XJBMS: E-power tools BMS
