Battery BMS with Balancing: Why It Matters, Active vs Passive

First: What Is battery Balancing, and Why Do Some BMS Skip It?

Battery balancing is the BMS function that equalizes voltage across individual cells in a battery pack. Its core goal? Prevent overcharging of "strong" cells and over-discharging of "weak" cells—two issues that drastically shorten battery lifespan. But not all BMS include this feature, and the reason boils down to cost, battery type, and use case:

When BMS Don't Need Balancing:

• Low-cost, low-capacity setups: Small devices (e.g., toy cars, emergency lights) with 1-2 cell lithium batteries often use basic BMS. Omitting balancing cuts hardware costs by 30-50%, and since these batteries have short lifespans (6-12 months), balancing isn't worth the expense.
• High-consistency batteries: Premium lithium iron phosphate (LiFePO4) cells with minimal voltage differences (≤0.02V per cell) and low usage frequency (≤5 cycles/month) rarely need balancing—their natural consistency stays within safe limits.
• Simple protection needs: Devices like flashlights or Bluetooth speaker backups only require basic overcharge/over-discharge protection, not long-term lifespan optimization.

When Balancing Is Non-Negotiable:

• 3+ cell packs: Any battery pack with 3 or more cells (e.g., 48V marine thruster packs with 13 LiFePO4 cells) will develop voltage inconsistencies over time. Without balancing, "strong" cells overcharge during charging, and "weak" cells die early from over-discharging.
• High-value, high-frequency use: Marine thrusters, electric vehicles, or energy storage systems rely on expensive battery packs (often $5,000+). Balancing extends pack life by 30-50%, reducing replacement costs.
• High discharge currents: Systems drawing 10A+ (marine thrusters typically use 20-50A) accelerate cell degradation—balancing mitigates this by keeping cells in sync.

Active vs Passive Balancing: What's the Difference, and Which Is Better?

If you decide to use a balanced BMS, you'll face two options: active or passive balancing. The choice depends on energy efficiency, speed, and your application's demands—here's how they stack up:

How to Choose the Right BMS: 3-Step Framework

Follow this simple process to select a BMS that fits your needs—whether for a marine thruster or another high-demand device:

Step 1: Decide If You Need Balancing

• Yes, you need it if:
  • Your pack has 3+ cells.
  • Capacity is ≥20Ah and you use it ≥10 cycles/month.
  • Discharge current exceeds 10A (standard for marine thrusters).
• No, you don't if:
  • It's a 1-2 cell pack with ≤10Ah capacity and low usage.

Step 2: Pick Active or Passive Balancing

• Choose Active Balancing for marine thrusters if:
  • Discharge current is ≥20A (most thrusters qualify).
  • Your battery pack costs $3,000+ (active balancing protects this investment).
  • You use the thruster frequently (daily/weekly) – active balancing slows capacity loss.
• Choose Passive Balancing only if:
  • Discharge current is ≤10A, and you prioritize cost over lifespan.

Step 3: Determine Balancing Current Size

Balancing current should match your battery capacity and charging time. Use this rule of thumb:

For a marine thruster battery pack:

• 100Ah pack: 3-5A balancing current (balances in 8-12 hours).
• 200Ah pack: 5-10A balancing current (avoids delays in charging cycles, normally 5A is enough).

Eample: BMS Selection for Marine Thrusters: A Practical Guide

Marine thrusters are harsh-environment, high-power devices—so their BMS needs extra durability and performance. Here's what to prioritize:

Must-Have Features:

• Active Balancing: Non-negotiable. Thrusters draw 20-50A, and their large packs (100-300Ah) degrade quickly without efficient balancing.
• High Continuous Discharge Current: Choose a BMS rated for 1.5x your thruster's max current (e.g., 75A BMS for a 50A thruster) to avoid overload shutdowns.
• IP68 Waterproof Rating: Marine environments are wet—IP68 ensures the BMS survives submersion (1m depth for 2 hours).
• Cell Type Compatibility: Match the BMS to your battery chemistry:
  • LiFePO4: Overcharge protection (3.65-3.8V/cell), over-discharge protection (2.0-2.5V/cell).
  • Li-ion (NMC): Overcharge protection (4.2-4.25V/cell), over-discharge protection (2.5-3.0V/cell).
• Communication: 485/CAN bus support lets you monitor voltage, current, and temperature remotely—critical for safe marine operations.

Final Thoughts

Choosing the right BMS with balancing isn't just about technical specs—it's about protecting your battery investment and ensuring reliable performance. For marine thrusters, active balancing with 5-10A current, high discharge ratings, and IP68 waterproofing is non-negotiable. By following this guide, you'll extend your battery life, reduce downtime, and keep your thruster running smoothly in tough marine conditions.

If you're still unsure about your specific setup, reach out to us XJBMS - BMS manufacturer with your machines' power requirements and battery details—we can help tailor a solution to your needs.

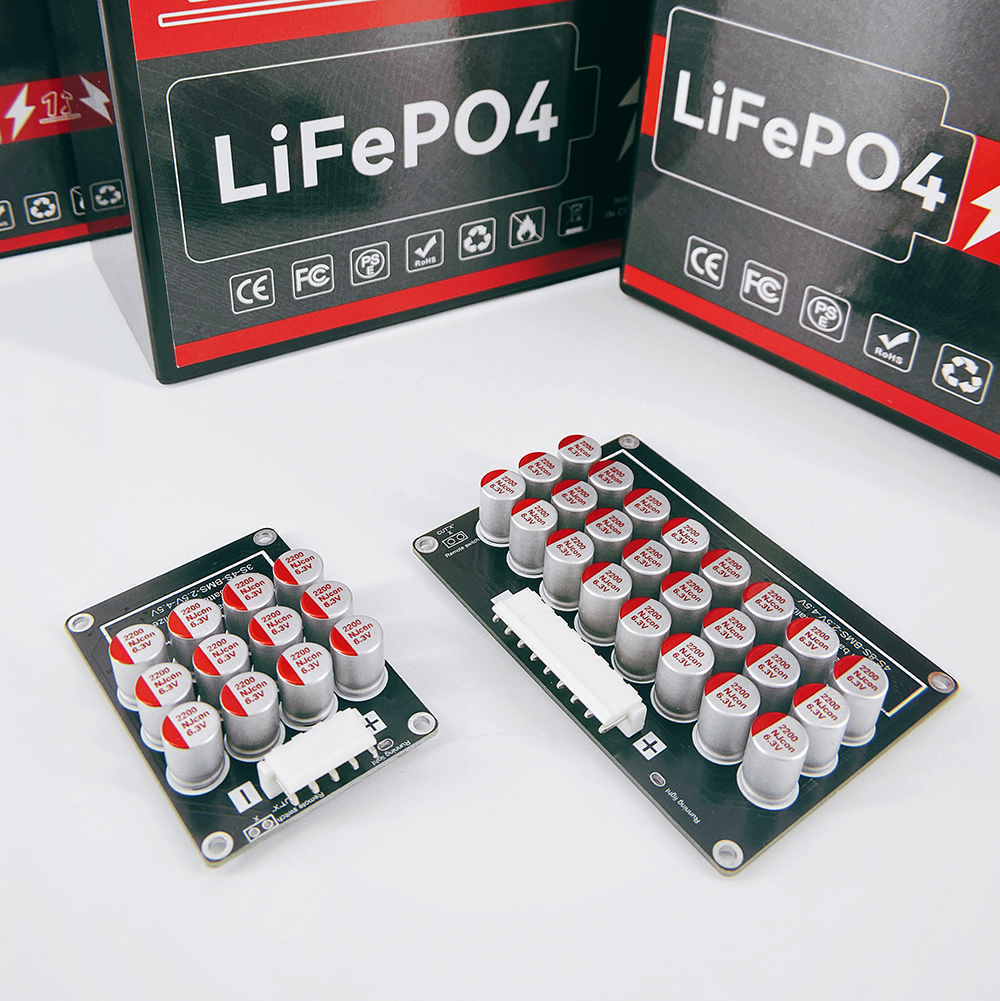

XJ BMS with Balance Models:
