72V Battery BMS Guide: 20S Cell Structure, Current Classification, Protection Functions & Applications
The 72v battery system based on 20S series lithium cells is a mainstream high-power voltage platform for mid-to-high-end electric mobility equipment. Unlike compact low-voltage battery packs such as 36V and 48V, 72V battery packs are mostly assembled into regular square and rigid structures. This standardized square battery design features high internal space utilization and unified external dimensions, resulting in extremely loose compatibility requirements for BMS shapes. Most mainstream BMS models on the market can be perfectly installed and matched without complex structural modification, greatly reducing assembly difficulty and improving production and maintenance efficiency for manufacturers and DIY users.
72V 20S batteries support an extremely wide working current range, covering low, medium, high and ultra-high current grades. Different current specifications correspond to completely different application scenarios, ranging from daily lightweight electric vehicles to heavy-load commercial mobility equipment. Among all protection functions, thermal temperature protection is the most critical core feature for 72V vehicle battery systems. Combined with full-set basic protection, cell balancing and NTC temperature monitoring functions, XJBMS 72V series ensures long-term safe and stable operation of high-power electric vehicles.
72V 20S Battery Current Range & Corresponding Application Scenarios
The 72V battery system has diverse and rich current specifications, covering 20A, 30A, 40A, 50A, 55A, 60A, 75A, 100A, 200A, 220A and higher ultra-high currents. The current magnitude directly determines the load capacity, power output and applicable equipment types, forming a clear industry scenario matching system.
Low & Medium Current (20A–60A): Daily Light-Duty Mobility
This current range is the most widely used in the 72V system, suitable for standard electric bicycles, household electric motorcycles, and daily commuter electric tuk-tuks (three-wheelers). These vehicles feature frequent daily start-stop, medium-speed cruising and short-to-medium distance travel. The working load is stable without long-term heavy-load impact, so 20A–60A BMS can fully meet daily power output and battery protection demands, with high cost performance and low standby power consumption.
Medium & High Current (75A–150A): High-Power Electric Motorcycles & Modified Vehicles
Suitable for high-speed electric motorcycles, modified electric two-wheelers and commercial delivery electric vehicles. Such equipment requires strong instantaneous acceleration power, frequent climbing and long-distance continuous driving, resulting in large instantaneous current impact and long-term high-load operation. A 75A–150A high-current BMS is required to ensure stable continuous discharge, avoid overheating protection and power attenuation during high-intensity operation.
Ultra-High Current (200A–300A): Heavy-Load Commercial Mobility Equipment
Ultra-high current specifications are mainly applied to heavy-load golf carts, large scenic sightseeing vehicles, and commercial three-wheel transport vehicles. These devices have heavy body weight, large passenger and cargo load, and require strong climbing torque. They need 200A+ ultra-high current continuous discharge support to adapt to long-term heavy-load operation and complex road condition driving.
Core Protection Priority of 72V Vehicle BMS: Over-Temperature Protection
Different from low-voltage light equipment, 72V high-power electric vehicles face severe heat generation risks in actual use. Long-time high-speed driving, continuous climbing and full-load operation will generate massive heat inside the battery pack. In addition, outdoor parking and long-term sun exposure in summer will further raise the internal temperature of the square battery pack, easily causing battery aging, thermal runaway and even safety accidents.
Therefore, over-temperature protection is the primary safety requirement for 72V vehicle BMS. All XJBMS 20S 72V models are equipped with precision NTC temperature sensing probes, which monitor the battery pack’s real-time temperature in all directions. Once the temperature exceeds the safe threshold, the BMS will automatically cut off charge and discharge loops to stop high-load operation, effectively isolating heat risks and ensuring battery safety in high-temperature environments and long-time working conditions.
Full Functional Protection Mechanism of XJBMS 72V 20S BMS (Detailed Explanation)

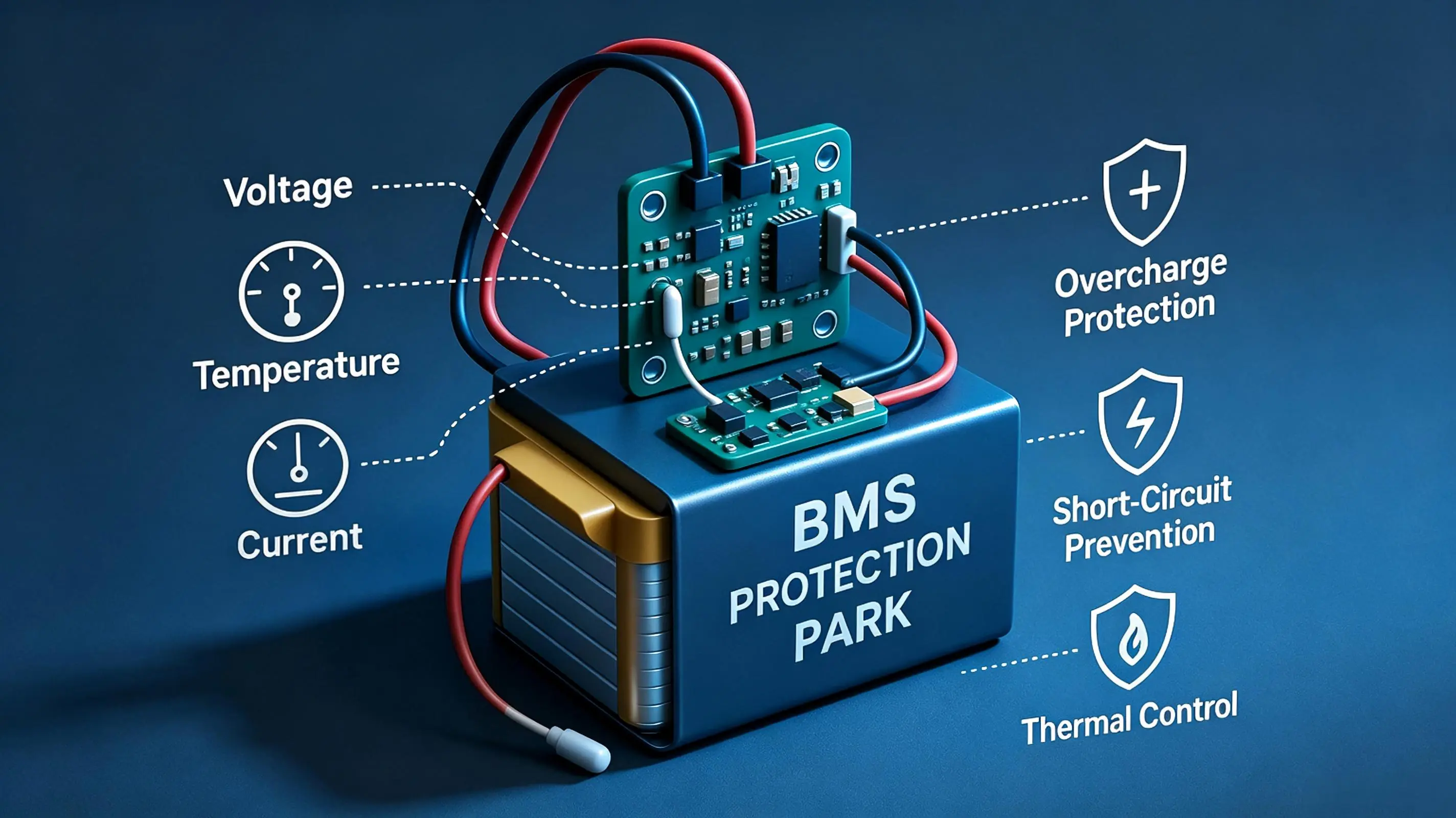

All XJBMS 72V series BMS are equipped with complete basic safety protection, cell balancing function and NTC temperature detection, covering all hidden dangers in the use of high-power lithium batteries. Each core function plays an irreplaceable role in extending battery life and improving equipment safety.
1. Overcharge Protection
During long-term charging or charger failure, the battery cell voltage may exceed the safe threshold, causing cell bulging, capacity attenuation and even thermal runaway. XJBMS overcharge protection precisely monitors the voltage of each single cell. Once any cell reaches the overcharge limit, it immediately cuts off the charging loop to stop power supplementation, ensuring each cell works within the safe voltage range and avoiding damage caused by overcharging.
2. Over-Discharge Protection
Deep discharge of the battery will cause irreversible damage to the lithium cell, greatly reducing cycle life and even leading to battery scrapping. When the vehicle battery power is exhausted and the single cell voltage drops to the low limit, the over-discharge protection function automatically cuts off the discharge output, retains basic battery voltage activity, prevents deep discharge damage, and effectively prolongs the overall service life of the 72V battery pack.
3. Overcurrent Protection
Vehicle acceleration, climbing and overload operation will generate instantaneous high current. Long-term overcurrent will burn the BMS MOS tube and accelerate battery aging. XJBMS overcurrent protection adapts to different current grade models. It accurately identifies abnormal overcurrent output, automatically limits current or shuts down protection, avoids component burnout and battery damage caused by long-term overload operation, and adapts to frequent start-stop and instantaneous current impact of electric vehicles.
4. Short-Circuit Protection
Circuit short circuit caused by wiring errors, equipment aging or external collision is the most dangerous safety hazard for high-power battery packs. XJBMS built-in short-circuit protection responds in microseconds. Once a short-circuit fault is detected, it instantly cuts off the power loop, completely avoids spark, burnout and explosion risks caused by short circuit, and provides the most stringent safety barrier for 72V high-power battery systems.
5. Cell Balancing Protection
A 20S series battery pack consists of 20 single cells. After long-term charge and discharge, individual cells will have voltage inconsistency, resulting in insufficient overall battery capacity, shortened endurance and accelerated partial cell aging. XJBMS balancing function automatically calibrates the voltage of each cell during charging and standby, keeps the voltage difference of all cells within a reasonable range, improves the overall consistency of the battery pack, maximizes battery capacity utilization, and greatly extends the cycle life of the 72V battery pack.
6. NTC Temperature Probe Monitoring
As the core guarantee for high-temperature safety of 72V vehicles, the NTC temperature probe realizes real-time, high-precision temperature collection inside the battery pack. It monitors temperature changes during driving, charging and outdoor exposure in real time, and matches the over-temperature protection mechanism to achieve high-temperature power-off and low-temperature charge-discharge limitation. It solves the safety pain points of easy heat generation and poor heat dissipation of high-power square battery packs in complex working environments.
XJBMS 20S 72V Full Series BMS Models Recommendation
XJBMS 20S 72V series covers hardware basic protection boards and intelligent Bluetooth monitoring boards, with full current coverage from low current 5A to ultra-high current 300A. All models support balancing function and NTC temperature monitoring, perfectly matching daily commuter vehicles, high-power modified vehicles and heavy-load commercial mobility equipment.
Hardware BMS Series (Stable & Cost-Effective)
- XJ-D068: 10A–40A charge & discharge, common port, size 100*60*10mm, low-current universal model for standard 72V electric bicycles and small electric scooters
- XJ-D565: 30A–60A charge & discharge, common port, size 100*60*10mm, medium-current mainstream model for daily 72V electric motorcycles and tuk-tuks
- XJ-D386: 50A–150A charge & discharge, common port, size 110*85*13mm, medium-high current industrial model for high-power electric motorcycles and delivery vehicles
- XJ-D038V5: 150A–300A charge & discharge, common port, size 240*122*10mm, ultra-high current flagship model for heavy-load golf carts and large commercial sightseeing vehicles
Smart Bluetooth BMS Series (Intelligent Monitoring & Precise Protection)
- XJ-F002C: 30A–60A charge & discharge, common port, size 100*65*9mm, compact smart BMS for standard 72V daily commuter vehicles
- XJ-F002: 30A–120A charge & discharge, common port, size 136*63*14mm, universal intelligent BMS with real-time APP battery data monitoring
- XJ-F013: 30A–120A charge & discharge, common port, size 155*70*12mm, upgraded stable smart model for long-term high-frequency operating electric vehicles
- XJ-F002A: 150A–250A charge & discharge, common port, size 210*63*14mm, high-current intelligent BMS for modified high-power vehicles and heavy-load commercial equipment
Conclusion
The 72V 20S square battery pack has flexible BMS compatibility and covers ultra-wide current and scenario ranges. For high-power electric mobility equipment represented by electric motorcycles and golf carts, over-temperature protection and full-set safety protection are the core guarantees of product reliability. All XJBMS 72V 20S BMS are equipped with overcharge, over-discharge, overcurrent, short-circuit, cell balancing and NTC temperature monitoring functions, adapting to light, medium and heavy-load vehicle scenarios. With complete model specifications and stable performance, it is the preferred professional battery management solution for global 72V high-power electric vehicle manufacturers and maintenance markets.
