4S BMS Guide: 4S 5A-300A BMS Compatible Batteries, Applications & XJBMS 4S Models
If you’re searching for a 4S battery protection board (BMS) — ranging from 5A to 300A current ratings — you’re likely asking these key questions:What are the applications of a 4s Bms? Which batteries are compatible with 4S 5A-300A BMS? Can it work with 18650, 21700, or prismatic LiFePO4 cells? And what scenarios are these BMS and batteries used in? Also, can 4S 100A BMS be used for delivery tricycles and electric two-wheelers?
As a professional BMS factory specializing in 4S BMS series (5A to 300A), we’re here to answer all these questions in simple language. We’ll break down 4S BMS compatibility, key applications (including the popular 4S 100A for delivery tricycles and electric two-wheelers), and introduce our hot-selling 4S BMS models. Beyond simple BMS boards, we offer more types (haraware with heat sink and smart BMS) 4S BMS options, and we provide samples, customization, 24-hour response, and free BMS solutions to meet your unique needs.
First: What Is a 4S BMS? Why Choose 4S Configuration?
A 4S BMS refers to a 4-cell series battery protection board. The “S” represents the number of battery cells connected in series — 4 cells in series form a battery pack, and the 4S BMS is engineered to protect this pack from overcharging, over-discharging, overcurrent, short circuits, and overheating (all our 4S BMS models include these core safety protections).
The 4S configuration is one of the most versatile choices for mid-voltage battery packs, thanks to its ideal voltage range:
- 4S NMC/LCO cells (e.g., 18650, 21700): Total nominal voltage = 4 × 3.7V = 14.8V, perfect for consumer electronics, small electric tools, and light electric vehicles.
- 4S LiFePO4 cells (e.g., prismatic LiFePO4): Total nominal voltage = 4 × 3.2V = 12.8V, ideal for small energy storage, industrial devices, and electric vehicles requiring high safety.
- 4S Sodium-ion cells (e.g., Na-ion battery): Total nominal voltage = 4 × 3V = 12V, ideal for motorcycle, tricycle, with high safety, longer cycle life, and excellent low-temperature performance.
Our 4S BMS covers a wide current range of 5A to 300A, making it suitable for everything from small consumer electronics to heavy-duty light electric vehicles — solving all your 4S battery pack protection needs.
4S 5A-300A BMS: Compatible Batteries (18650, 21700, Prismatic LiFePO4)
The 4S 5A-300A BMS is highly adaptable and works seamlessly with three of the most widely used battery cell types: 18650, 21700, and prismatic LiFePO4. Below is a detailed breakdown of compatibility, helping you match the right battery to your 4S BMS:
18650 Battery Cells
18650 cells are cylindrical lithium-ion cells (18mm diameter, 65mm length), widely used in consumer electronics and small devices. They are mostly NMC/LCO chemistry (3.7V per cell), making them a perfect match for 4S BMS (14.8V total nominal voltage).
Compatibility with 4S 5A-300A BMS: 18650 cells typically have a discharge current of 2A-10A (high-drain versions up to 30A). Thus, they are best paired with 4S 5A-40A BMS (our XJ-D209, XJ-D091, XJ-D026, etc.), ideal for low to medium-power applications.
21700 Battery Cells
21700 cells are larger cylindrical lithium-ion cells (21mm diameter, 70mm length) than 18650. They offer higher capacity and discharge current (up to 40A for high-drain models) and remain NMC/LCO chemistry (3.7V per cell), fully compatible with 4S BMS.
Compatibility with 4S 5A-300A BMS: Due to their higher current capacity, 21700 cells work well with 4S 10A-100A BMS (our XJ-D026, XJ-D063, XJ-D301). They are perfect for devices requiring more power, such as electric tools and light electric vehicles.
Prismatic LiFePO4 Battery Cells
Prismatic LiFePO4 cells are rectangular, known for high safety, long cycle life, and stable performance (3.2V per cell). 4 prismatic LiFePO4 cells in series (12.8V nominal voltage) are fully compatible with 4S BMS, making them ideal for industrial and electric vehicle applications.
Compatibility with 4S 5A-300A BMS: Prismatic LiFePO4 cells often have high discharge currents (up to 300A for industrial-grade models), so they can be paired with 4S 40A-300A BMS (our XJ-D063, XJ-D301, and XJ-D038V3). They are the top choice for high-power scenarios like delivery tricycles and heavy-duty small devices.
Key Compatibility Tip
All our 4S BMS models support NMC, LCO, and LiFePO4 batteries — no need to switch BMS for different cell chemistries. To ensure a perfect match, simply confirm two things: the battery cell’s maximum discharge current and your device’s power requirements, then select the corresponding 4S BMS current rating.
Applications & Scenarios of 4S 5A-300A BMS
The 4S 5A-300A BMS is used in a wide range of scenarios, from small consumer electronics to light electric vehicles. Below are the most common application fields, with a focus on the popular 4S 100A BMS for delivery tricycles and electric two-wheelers:
Consumer Electronics (Low Current: 5A-10A)
Scenario: Portable power banks, wireless speakers, handheld scanners, small LED lights, and mini portable devices.
Compatible Batteries: 18650 or 21700 cells (small size, high energy density).

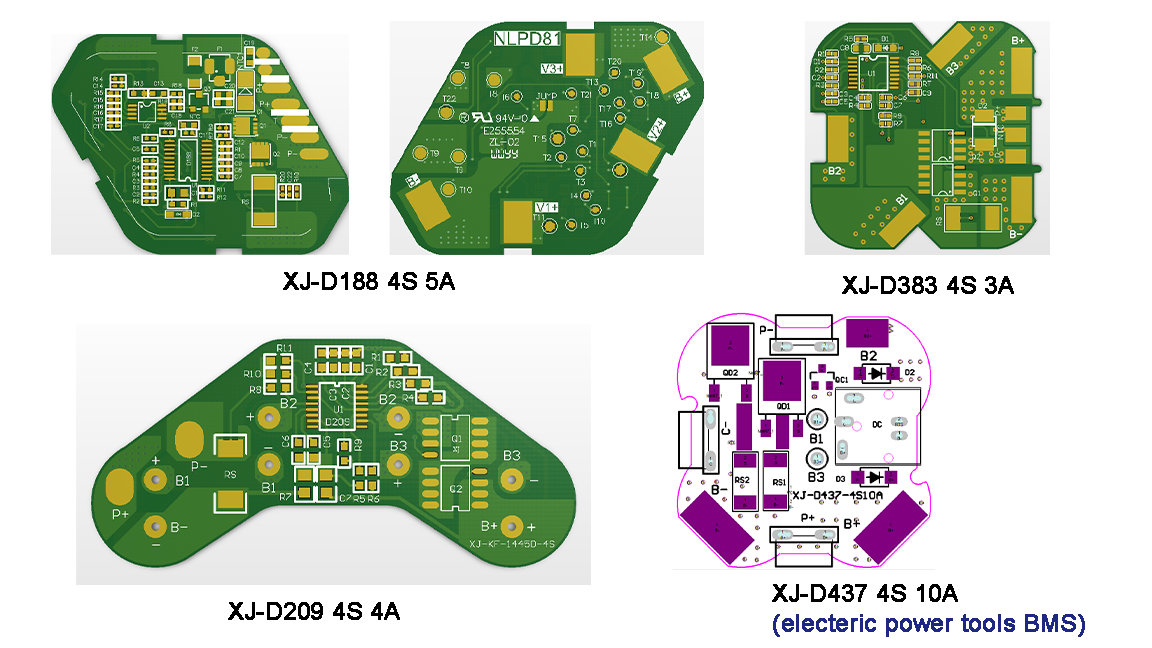

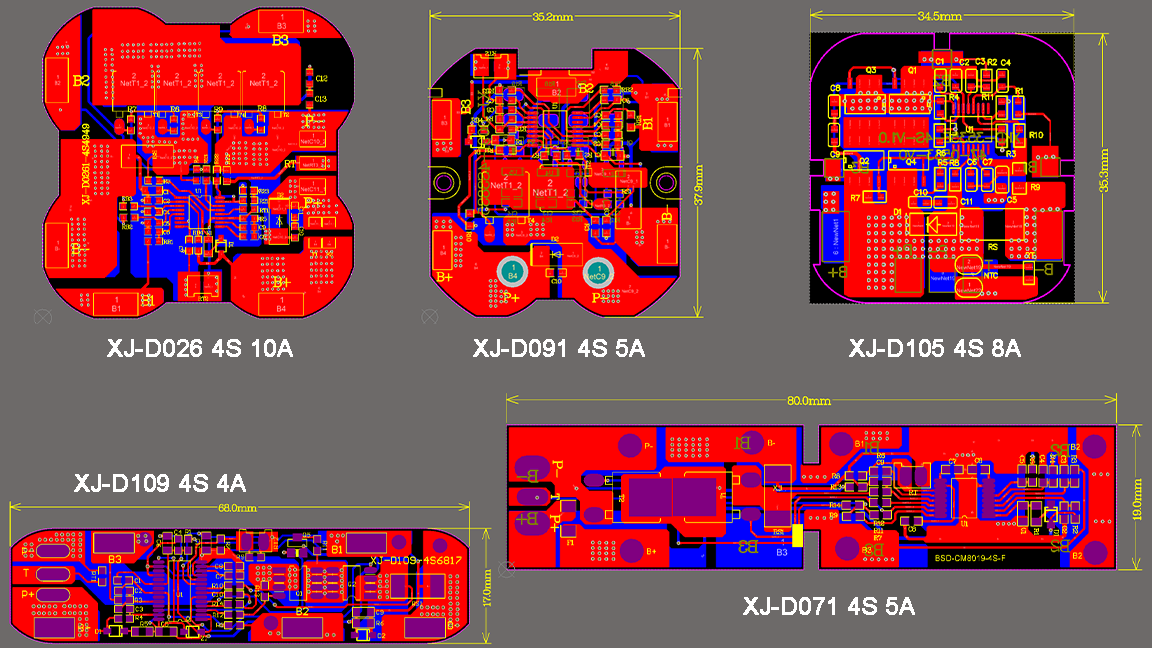

Recommended BMS Models: XJ-D209 (4S 4A), XJ-D091 (4S 5A), XJ-D071 (4S 5A), XJ-D138 (4S 5A), XJ-D026 (4S 10A), XJ-D468 (4S 10A).
Electric Tools (Medium Current: 10A-40A)
Scenario: Handheld electric drills, grinders, pruners, and small portable electric tools (especially our XJ-D0437, designed specifically for electric tools).
Compatible Batteries: High-drain 18650/21700 cells or small prismatic LiFePO4 cells.
Recommended BMS Models: XJ-D026 (4S 10A), XJ-D468 (4S 10A), XJ-D063 (4S 40A), XJ-D096 (4S 40A), XJ-D437 (4S, 1A charge/10A discharge, electric tool dedicated).
Light Electric Vehicles (Medium-High Current: 100A)
Scenario: Delivery tricycles (express delivery small tricycles), electric two-wheelers (electric bikes, electric scooters), and small electric carts — the most popular application for 4S 100A BMS.
Why 4S 100A? These vehicles require stable high current to support daily cruising, climbing, and frequent start-stop. The 4S 100A BMS (our best-selling XJ-D301) provides sufficient current margin and reliable protection, ensuring safe and long-term use.
Compatible Batteries: 21700 cells or prismatic LiFePO4 cells (high current capacity).

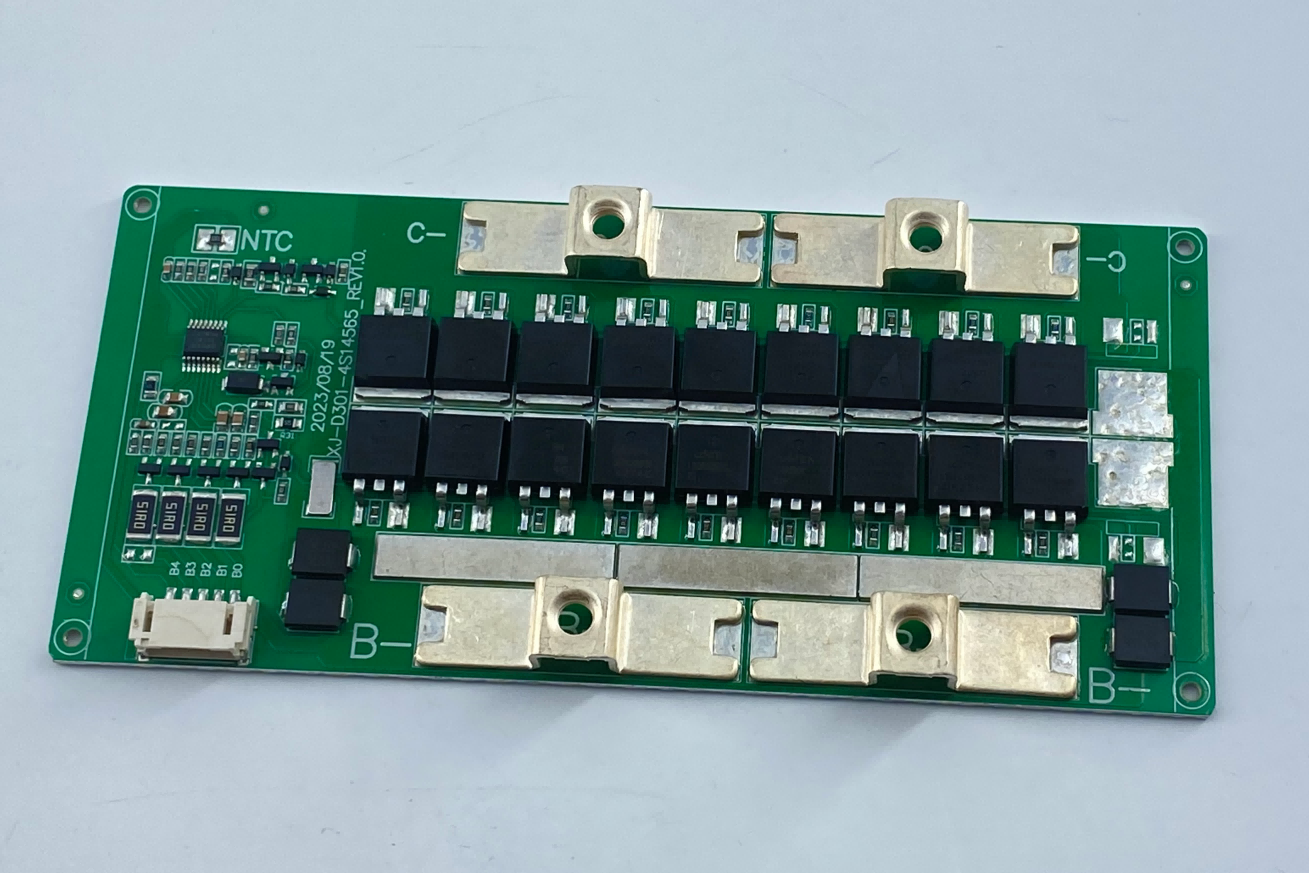

Recommended BMS Model: XJ-D301 (4S 100A, common port, best-selling model) — perfectly matched for delivery tricycles and electric two-wheelers.
Industrial & High-Power Applications (High Current: 100A-300A)
Scenario: Small industrial equipment, low-voltage energy storage modules, and custom high-power small devices requiring stable high current.
Compatible Batteries: High-current prismatic LiFePO4 cells.

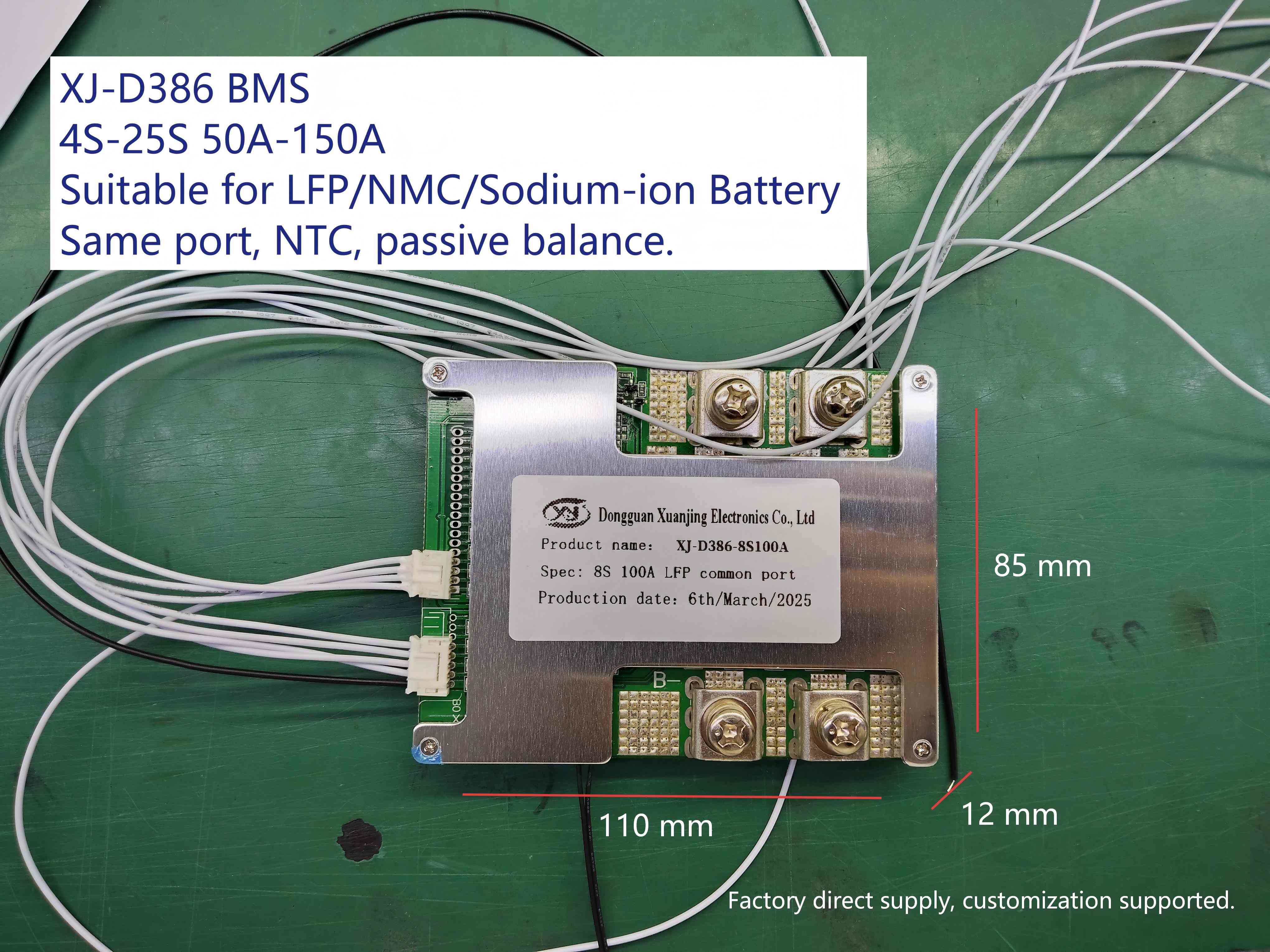

Recommended BMS Models: XJ-D301 (4S 100A), XJ-D386 (4S 150A), XJ-D038V3 (4S 200A-300A).
Our Factory 4S PCBA BMS Board BMS Models: Full Specifications
We offer a complete range of 4S PCBA BMS board BMS models, all with common ports (except no split-port models listed), compact designs to fit different battery compartments, and reliable performance. Below is the detailed specification table of our hot-selling 4S PCBA BMS board BMS models:
| Factory BMS Model | 4S Current Rating (Charge/Discharge) | Port Type | Dimensions (mm) | Special Features & Applications |
| XJ-D209 | 4A | Common Port | 55*26*5 | PCBA BMS board, compact size, suitable for small consumer electronics |
| XJ-D091 | 5A | Common Port | 38*35*4 | PCBA BMS board, small square design, fits mini battery packs |
| XJ-D071 | 5A | Common Port | 80*19*4 | PCBA BMS board, slim long design, suitable for narrow battery compartments |
| XJ-D138 | 5A | Common Port | 46*34*5 | PCBA BMS board, compact, compatible with small 18650 battery packs |
| 10A | Common Port | 49*49*3 | PCBA BMS board, square thin design, ideal for small electric tools | |
| 10A | Common Port | 62*62*1.6 | PCBA BMS board, ultra-thin square, fits space-saving battery packs | |
| 40A | Common Port | 110*62*4 | PCBA BMS board, medium size, suitable for medium-power electric tools | |
| 40A | Common Port | 70*60*6 | PCBA BMS board, compact medium-current, compatible with 21700 battery packs | |
| 100A | Common Port | 150*65*15 | PCBA BMS board, BEST-SELLING model, ideal for delivery tricycles and electric two-wheelers | |
| XJ-D437 | Charge 1A / Discharge 10A | Common Port | 36*36*1.6 | PCBA BMS board, dedicated for electric tools, ultra-thin design |
More 4S BMS Options: Beyond PCBA BMS Boards
The 4S PCBA BMS board BMS models listed above are our hot-selling standard options, but we offer much more diverse 4S BMS series to meet your specific needs. Our 4S BMS lineup includes:
- PCBA BMS Boards: The standard models listed above, cost-effective and suitable for most general applications.
- Hardware BMS with Heat Sink: Designed for high-current scenarios (100A-300A), the built-in heat sink enhances heat dissipation, ensuring stable performance even during long-term high-current operation (perfect for delivery tricycles and industrial devices).
- Smart Software BMS: Equipped with communication interfaces (e.g., CAN/RS485, Bluetooth, GPS) for smart monitoring and control, suitable for applications requiring real-time battery data (e.g., smart electric vehicles, industrial energy storage).
No matter what type, size, or current rating you need, we have the right 4S BMS for you. We also support custom shapes, dimensions, and current ratings to match your unique battery pack and device requirements.
Our Factory Commitments & Services
As a reliable BMS factory, we prioritize customer satisfaction and provide comprehensive services to support your business:
- Samples: We offer 4S BMS samples (PCBA BMS board, heat sink, or smart BMS) for your testing and verification (shipping cost negotiable for bulk sample orders).
- Customization Support: We provide full customization services — adjust current rating (5A-300A), dimensions, port type (common/split), design (PCBA BMS board/heat sink/smart), and more to fit your specific needs.
- 24-Hour Response: Our professional technical and sales team guarantees a response within 24 hours to your inquiries, sample requests, and customization needs — no delays, no waiting.
- Free BMS Solutions: Tell us your battery type (18650/21700/prismatic LiFePO4), device power, and application, and we’ll provide a free, tailored 4S BMS solution for you — no technical expertise required.
- High-Quality Assurance: All our 4S BMS are strictly tested before shipment, with built-in cell balancing and temperature control to ensure stability, safety, and long service life.
Contact Us for Your 4S BMS Needs
Whether you’re looking for standard 4S PCBA BMS board BMS (like our best-selling XJ-D301 for delivery tricycles), heat sink equipped BMS for high-current applications, or custom 4S 5A-300A BMS, we’re your trusted factory partner.
We offer competitive factory prices, high-quality products, and professional services to help you reduce costs, improve efficiency, and meet your customers’ demands. Let us know your requirements, and we’ll deliver the perfect 4S BMS solution for you.
