3S BMS Guide: 3S 5A-100A BMS Compatible Batteries, Applications & XJBMS Factory Models
If you’re looking for a 3S battery protection board (BMS) — whether for consumer electronics, small electric devices, or industrial applications — you probably have these key questions:What are the applications of a 3s Bms? Which batteries are compatible with 3S 5A-100A BMS? Can it work with 18650, 21700, or prismatic LiFePO4 cells? And what scenarios are these BMS and batteries used in?
As a professional BMS factory specializing in 3S BMS series (from 3A to 100A, various sizes and shapes), we’re here to answer all these questions in simple language. We’ll break down 3S BMS compatibility, applications, and introduce our full range of factory 3S BMS models — including top-mounted boards, long strip boards, and special-shaped options. Plus, we offer samples, customization, and 24-hour response to meet your unique needs.
First: What Is a 3S BMS? Why 3S?
A 3S BMS refers to a 3-cell series battery protection board. The “S” stands for the number of battery cells connected in series — 3 cells in series form a battery pack, and the 3S BMS is designed to protect this pack from overcharging, over-discharging, overcurrent, short circuits, and overheating (all our 3S BMS models include these core protections).
Why choose 3S? It’s the most common cell series configuration for mid-voltage battery packs:
- 3S NMC/LCO cells (e.g., 18650, 21700): Total voltage = 3 × 3.7V = 11.1V (nominal), ideal for consumer electronics and small devices.
- 3S LiFePO4 cells (e.g., prismatic LiFePO4): Total voltage = 3 × 3.2V = 9.6V (nominal), perfect for small energy storage and low-voltage electric devices.
Our 3S BMS covers a current range of 3A to 100A (focus on 5A-100A for most applications), compatible with all mainstream 3-cell battery packs — solving your selection and matching worries.
3S 5A-100A BMS: Compatible Batteries (18650, 21700, Prismatic LiFePO4)
The 3S 5A-100A BMS is highly versatile and compatible with three of the most commonly used battery cell types: 18650, 21700, and prismatic LiFePO4. Below is a detailed breakdown of compatibility and why they work together:
18650 Battery Cells
18650 cells are cylindrical lithium-ion cells (18mm diameter, 65mm length), widely used in consumer electronics. They are mostly NMC/LCO chemistry (3.7V per cell), making them a perfect match for 3S BMS (11.1V total voltage).
Compatibility with 3S 5A-100A BMS: 18650 cells have a typical discharge current of 2A-10A (high-drain versions up to 30A). Thus, they work best with 3S 5A-30A BMS (our XJ-D002, XJ-D003, XJ-D164, etc.).
21700 Battery Cells
21700 cells are larger cylindrical lithium-ion cells (21mm diameter, 70mm length) than 18650. They have higher capacity and discharge current (up to 40A for high-drain models), still NMC/LCO chemistry (3.7V per cell), fully compatible with 3S BMS.
Compatibility with 3S 5A-100A BMS: Due to their higher current capacity, 21700 cells pair well with 3S 15A-60A BMS (our XJ-D102, XJ-D005, XJ-D037, etc.), suitable for devices requiring more power.
Prismatic LiFePO4 Battery Cells
Prismatic LiFePO4 cells are rectangular, with high safety, long cycle life, and stable performance (3.2V per cell), ideal for small energy storage and industrial devices. 3 prismatic LiFePO4 cells in series (9.6V nominal voltage) are fully compatible with 3S BMS.
Compatibility with 3S 5A-100A BMS: Prismatic LiFePO4 cells often have higher discharge current (up to 100A for industrial models), so they can use 3S 25A-100A BMS (our XJ-D005, XJ-D102, XJ-D090, etc.), depending on the device’s power needs.
Key Compatibility Tip
All our 3S BMS models support NMC, LCO, and LiFePO4 batteries — no need to switch BMS for different cell chemistries. The only thing to confirm is the battery cell’s maximum discharge current and device’s power requirements, then match the corresponding 3S BMS current rating.
Applications & Scenarios of 3S 5A-100A BMS
3S BMS (5A-100A) is widely used in various scenarios, thanks to its compatibility with 18650, 21700, and prismatic LiFePO4 cells. Below are the most common application fields, paired with our recommended BMS models:
Consumer Electronics (Low Current: 3A-8A)
Scenario: Laptop batteries, portable power banks, wireless speakers, small LED lights, and handheld devices.
Compatible Batteries: 18650 or 21700 cells (small size, high energy density).
Recommended BMS Models: XJ-D007 (3S 3A), XJ-D011 (3S 6A, laptop), XJ-D055 (3S 6A, laptop), XJ-D016 (3S 8A, top-mounted).
Small Electric Tools (Medium Current: 8A-30A)
Scenario: Mini electric drills, small grinders, handheld pruners, and portable air pumps.
Compatible Batteries: High-drain 18650/21700 cells or small prismatic LiFePO4 cells.
Recommended BMS Models: XJ-D003 (3S 15A), XJ-D005 (3S 25A), XJ-D089 (3S 10A, top-mounted), XJ-D115 (3S 5A, top-mounted).
Small Electric Devices (Medium-High Current: 30A-60A)
Scenario: Electric scooters (mini), balance bikes, small AGVs (load < 100kg), and portable inverters (< 500W).
Compatible Batteries: 21700 cells or prismatic LiFePO4 cells (higher current capacity).
Recommended BMS Models: XJ-D001 (3S 45A), XJ-D037 (3S 60A, split port), XJ-D090 (3S 30A, long strip).
Industrial & Special Applications (High Current: 60A-100A)
Scenario: Small industrial equipment, low-voltage energy storage modules, and custom high-power small devices.
Compatible Batteries: High-current prismatic LiFePO4 cells.
Recommended BMS Models: XJ-D037 (3S 60A, split port), XJ-D301 (3S 50A-100A).
Our Factory 3S BMS Models (3A-100A): Full Specifications
We offer a complete range of 3S BMS models, including top-mounted boards, long strip boards, special-shaped (triangular) boards, and more. All models are common-port (except XJ-D037, split-port), with compact designs to fit different battery compartments. Below is the detailed specification table of our hot-selling 3S BMS models:
| XJ Factory BMS Model | 3S Current Rating | Port Type | Dimensions (mm) | Special Features & Applications |
| 45A | Common Port | 90*45*4.5 | Compact size, suitable for small electric devices and medium-power tools | |
| 6A | Common Port | 55*15*4 | Slim design, ideal for small consumer electronics (e.g., wireless speakers) | |
| 15A | Common Port | 44*44*4.5 | Square compact, compatible with 18650/21700 battery packs for small tools | |
| 25A | Common Port | 45*45*4.5 | Square design, suitable for medium-power small electric devices | |
| 6A | Common Port | 52*17*4.5 | Slim and compact, fits narrow battery compartments | |

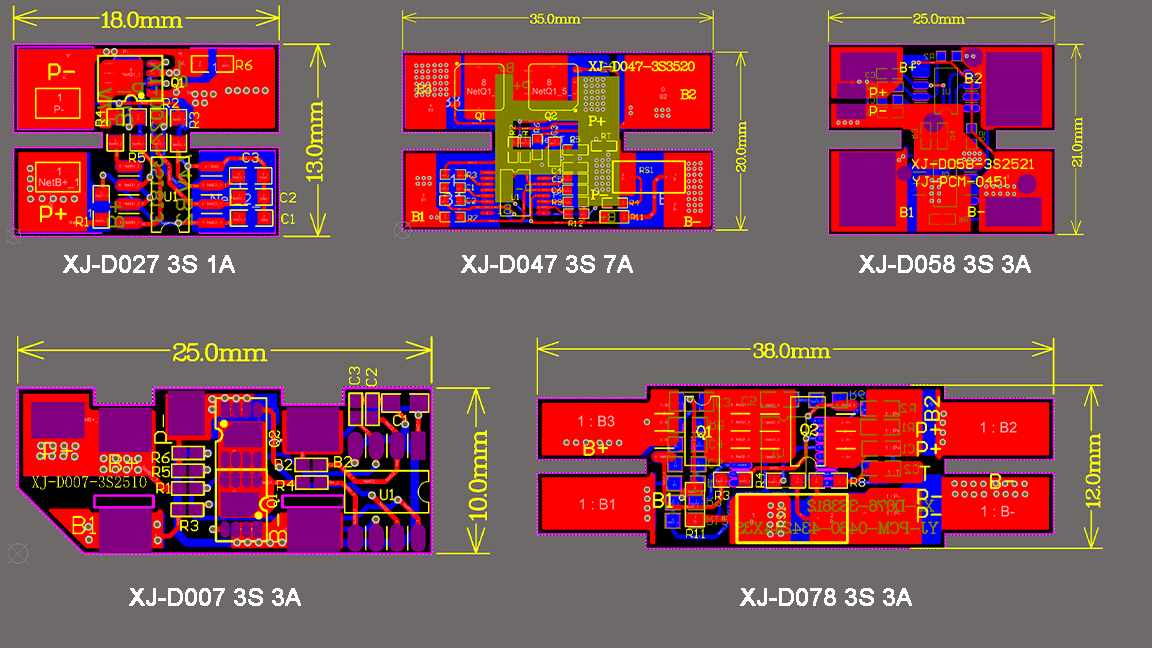

| XJ-D007 | 3A | Common Port | 25*10*2.5 | Ultra-small size, perfect for mini consumer electronics (e.g., small LED lights) |
| 6A | Common Port | 206*6*3.5 | Long strip design, specifically for laptop batteries | |
| 6A | Common Port | 254*7*4 | Long strip design, suitable for laptop batteries (large size) | |

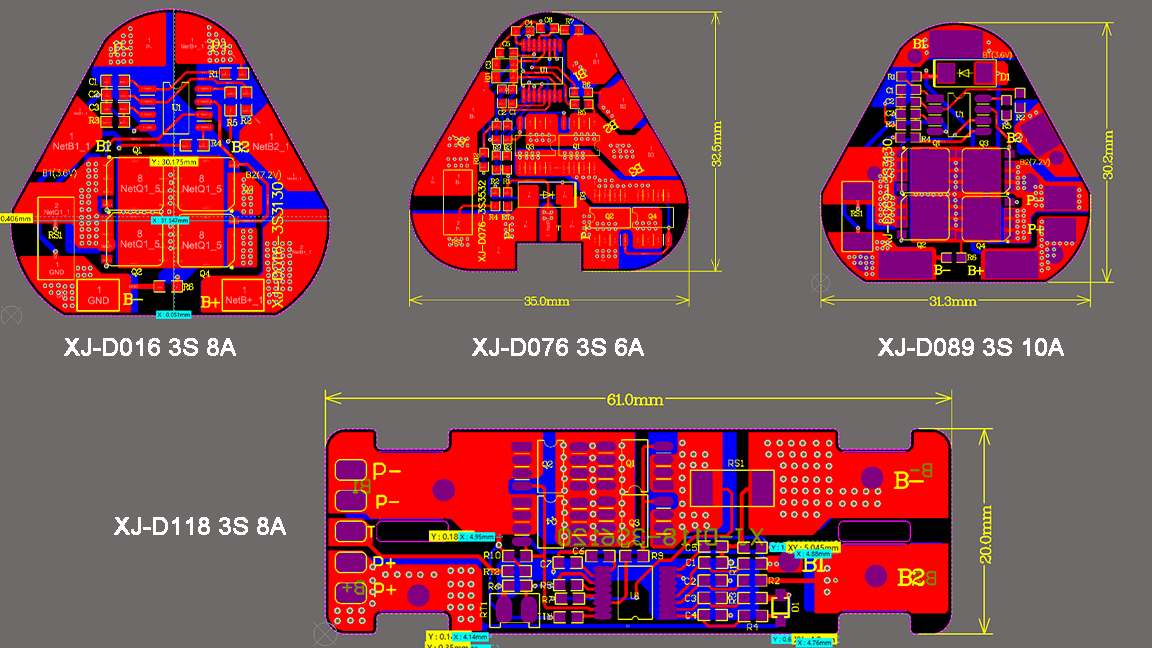

| 8A | Common Port | 31*30*2.6 | Triangular top-mounted board, placed on the top of the battery pack | |
| XJ-D076 | 6A | Common Port | 35*32*3 | Triangular top-mounted board, placed on the top of the battery pack |
| XJ-D089 | 10A | Common Port | 31*30*4 | Triangular top-mounted board, placed on the top of the battery pack |
| XJ-D115 | 5A | Common Port | 54.6*18*4 | Top-mounted board, placed on the top of the battery pack |
| 60A | Split Port | 128*68*5 | High current capacity, suitable for high-power small industrial devices | |
| 15A | Common Port | 122*20*4 | Long strip design, fits long battery packs | |
| XJ-D090 | 30A | Common Port | 210*20*4 | Long strip design, suitable for long battery packs and small electric scooters |
More 3S BMS Options: Customization & Factory Advantages
Beyond the models listed above, we offer a wide variety of 3S BMS series to meet your diverse needs. Whether you need top-mounted boards, long strip boards, or special-shaped boards (custom shapes), we can provide exactly what you’re looking for — no matter the size or current rating (up to 100A).
Our Factory Commitments & Services
- Samples: We provide 3S BMS samples for your testing and verification (shipping cost negotiable for bulk sample orders).
- Customization Support: We offer full customization services — adjust dimensions, current rating, port type (common/split), shape (triangular, square, long strip), and more to match your battery pack and device.
- 24-Hour Response: Our professional technical and sales team guarantees a response within 24 hours to your inquiries, samples, and customization requests.
- Free BMS Solutions: We provide free 3S BMS matching solutions — tell us your battery type (18650/21700/prismatic LiFePO4), device power, and application, and we’ll recommend the perfect 3S BMS model or customize one for you.
- High-Quality Assurance: All our 3S BMS are strictly tested before shipment, with built-in cell balancing and temperature control to ensure stability, safety, and long service life.
Contact Us for Your 3S BMS Needs
Whether you’re looking for standard 3S BMS models (XJ-D001 to XJ-D090) or custom 3S 5A-100A BMS, we’re your reliable factory partner. We offer competitive factory prices, high-quality products, and professional services to help you reduce costs and improve efficiency.
Let us know your requirements, and we’ll provide the best 3S BMS solution for you — quickly and efficiently.
