1S-4S Small Battery BMS: Low-Cost, High-Volume Solutions for India’s Booming Electronics Industry

India’s manufacturing sector is growing at an unprecedented pace—fueled by its large population, rising demand for affordable electronics, and a thriving ecosystem of small to medium-sized enterprises (SMEs). From solar street lights illuminating rural areas to electric toothbrushes and toys in urban households, the demand for small, rechargeable lithium-ion batteries (and the BMS that protect them) is skyrocketing. For Indian manufacturers, distributors, and buyers, the key need is clear: low-cost, reliable 1S-4S small battery BMS that can be ordered in large quantities to meet the country’s massive electronics demand.

Our 1S-4S battery protection boards are tailored specifically for this market—affordable, compact, and designed for high-volume production. They are compatible with the most common cylindrical rechargeable lithium-ion batteries (18650 and 21700) and power a wide range of low-current electronic products. In this guide, we’ll break down their applications, how to choose the right 1S-4s Bms (including series vs. parallel battery configurations), and our top-recommended models for high-volume Indian buyers.

What Are 1S-4S Small Battery BMS?

1S-4S battery protection boards (BMS) are compact, low-cost devices designed to protect small lithium-ion battery packs—specifically those made with 18650 and 21700 cylindrical cells. The “1S-4S” refers to the number of battery cells connected in series: 1S for 1 cell, 2S for 2 cells, 3S for 3 cells, and 4S for 4 cells. These BMS are ideal for low-current applications (typically up to 100A, depending on the model) and are engineered for affordability—making them perfect for high-volume orders, a key requirement for Indian manufacturers.

Unlike high-end BMS for industrial or EV applications, our 1S-4S BMS focus on core protection features (overcharge, over-discharge, short circuit protection) at a competitive price—without compromising reliability. This makes them the go-to choice for businesses looking to scale production of low-cost electronics in India.

Key Applications of 1S-4S BMS (18650 & 21700 Batteries)

18650 and 21700 cylindrical lithium-ion batteries are the backbone of India’s small electronics market—they are compact, affordable, and rechargeable. Our 1S-4S BMS are perfectly matched to these batteries and power a wide range of daily-use products, including:

Solar Street Lights

A critical application in India’s rural and semi-urban areas, where reliable lighting is essential. Solar street lights use 18650 or 21700 battery packs (often 2S–4S) to store solar energy, and 1S-4S BMS protect the battery from overcharging (from solar panels) and over-discharging (during nighttime use). Our low-cost BMS ensure long battery life, reducing maintenance costs for solar light manufacturers.

Portable Lighting (Flashlights, Torches)

Flashlights and torches are ubiquitous in India, especially in areas with inconsistent power supply. Most use 1–2 18650 cells (1S–2S), requiring compact, affordable BMS. Our 1S-2S models are small enough to fit in handheld devices while providing reliable protection.

Personal Care Devices

The demand for affordable personal care electronics (electric toothbrushes, shavers/razors, facial cleansers/face wash devices) is growing rapidly in India. These devices use small 18650 battery packs (1S–2S) and require low-current BMS to ensure safe, long-lasting operation. Our 1S-2S BMS are designed to fit in the compact bodies of these devices.

Electric Toys

India’s toy industry is booming, with electric toys (remote-controlled cars, dolls, drones) becoming increasingly popular. These toys use 18650 or 21700 batteries (1S–4S, depending on the toy’s power needs), and our 1S-4S BMS provide cost-effective protection—critical for high-volume toy manufacturers looking to keep prices competitive.

How to Choose the Right 1S-4S BMS: Series vs. Parallel Configurations

Choosing the right 1S-4S BMS starts with understanding how your 18650/21700 batteries are configured—series, parallel, or a combination. The key is to match the BMS to the number of cells in series (1S–4S) and the total current required by your device. Let’s break down the basics, using 18650 cells as an example (the most common in Indian electronics):

Basic Rule: How Many Cells = Which BMS?

It’s simple: the “S” in 1S-4S corresponds to the number of cells connected in series.

1 cell (1865021700) → 1S BMS

2 cells in series → 2S BMS

3 cells in series → 3S BMS

4 cells in series → 4S BMS

This is non-negotiable—using a BMS with the wrong “S” rating will not protect your battery pack and can lead to damage or safety hazards.

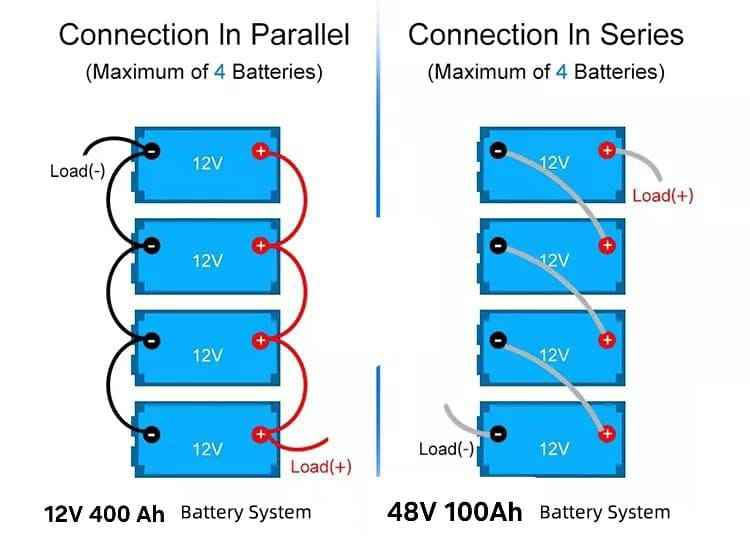

Series vs. Parallel: Voltage, Current, and How to Choose

When building a battery pack with 18650/21700 cells, you can connect them in series, parallel, or both. The choice depends on your device’s voltage and current needs. Here’s a simple breakdown to remember:

Series Connection: Voltage doubles, current stays the same.

Parallel Connection: Voltage stays the same, current doubles.

Example: 4 x 18650 Cells (5A Discharge Current Each)

Let’s use 4 18650 cells (each with a 5A discharge current) to illustrate the difference—this is a common configuration for electronics like solar street lights or electric toys:

Parallel Configuration: 4 cells in parallel → 3.7V (same as 1 cell) + 20A (5A x 4).

Series Configuration: 4 cells in series → 14.8V (3.7V x 4) + 5A (same as 1 cell).

Mathematically, both configurations have the same power (Voltage x Current = Power: 3.7V x 20A = 74W; 14.8V x 5A = 74W). The choice comes down to your device’s load—and the biggest factor affecting load is voltage. A 3.7V load (e.g., a small flashlight) cannot use a 14.8V battery pack, and vice versa. Your device’s voltage requirement will dictate whether you use series, parallel, or a combination.

Series vs. Parallel: Advantages, Disadvantages, and BMS Selection

To help you choose the right configuration (and matching BMS), here’s a clear breakdown of the pros and cons of series and parallel connections, plus how to select the right 1S-4S BMS:

Series

• Increases voltage (critical for devices needing higher voltage, e.g., solar street lights).
• Simpler wiring (fewer connections).
• Lower current draw (reduces BMS current requirements).
• Current remains the same (not ideal for devices needing high current).
• If one cell fails, the entire pack fails.
• Choose BMS with “S” rating matching the number of cells in series (e.g., 4 cells in series → 4S BMS).
• Match BMS current rating to the cell’s discharge current (e.g., 5A cells → BMS rated for 5A+). Solar street lights, electric toys (high-voltage), small power tools.

Parallel

• Increases current (ideal for devices needing high current, e.g., powerful flashlights).
• If one cell fails, the pack still works (better reliability).
• Extends battery runtime (higher capacity).
• Voltage remains the same (not ideal for high-voltage devices).
• More complex wiring (more connections).
• Requires BMS with higher current rating.
• BMS “S” rating matches the number of cells in series (parallel cells don’t change the “S” rating—e.g., 4 cells in parallel → 1S BMS).

Choose BMS current rating matching the total parallel current (e.g., 4x 5A cells → 20A BMS). Flashlights, electric toothbrushes, shavers, small portable devices.

Our Top 1S-4S BMS Models for High-Volume Indian Buyers

We’ve curated a range of 1S-4S BMS models specifically for India’s high-volume, low-cost electronics market. All models are compatible with 18650 and 21700 cylindrical cells, offer core protection features, and are priced for bulk orders. Below are our main models, organized by series (1S–4S), with key specs to help you choose the right one for your application:

1S Series BMS (For 1x 18650/21700 Cell): Ideal for small devices like flashlights, electric toothbrushes, and single-cell toys. Compact, affordable, and available in a range of current ratings:

XJ-18-6H: 1S 1A, 18*3.5*0.6 MM (ultra-compact for tiny devices)

XJ-1836-8: 1S 1.5A, 28*3.7*0.6 MM (affordable for high-volume toy production)

XJ-2237: 1S 2A, 22.5*3.7*0.6 MM (perfect for electric toothbrushes/shavers)

XJ-2837-04: 1S 3A, 28*3.7*0.6 MM (great for small flashlights)

XJ-3580: 1S 4A-9A, 40*8*1.0 MM (higher current for more powerful single-cell devices)

XJ-1S60: 1S 15A, 60*16.6*1.2 MM (heavy-duty single-cell BMS for high-current devices)

2S Series BMS (For 2x 18650/21700 Cells in Series): Perfect for devices needing 7.4V (2x 3.7V cells), like solar street lights, small electric toys, and portable speakers:

XJ-5008-2S: 2S 5A, 50*8*0.8 MM (compact for small 7.4V devices)

XJ-5014-2S-NTC: 2S 9A, 50*14*1.0 MM (with NTC temperature protection for outdoor use)

XJ-7.4V-25A: 2S 15A*25A, 60*25*1.0 MM (high-current 2S option for powerful devices)

3S Series BMS (For 3x 18650/21700 Cells in Series): Designed for 11.1V devices, like larger solar street lights, electric toys, and small power tools:

XJ-D164: 3S 10A, 52*17*5 MM (compact for 11.1V devices)

XJ-D005: 3S 10A-20A, 45*45*4.5 MM (adjustable current for versatile use)

XJ-D001: 3S 30A-45A, 90*45*4.5 MM (high-current 3S BMS for powerful 11.1V devices)

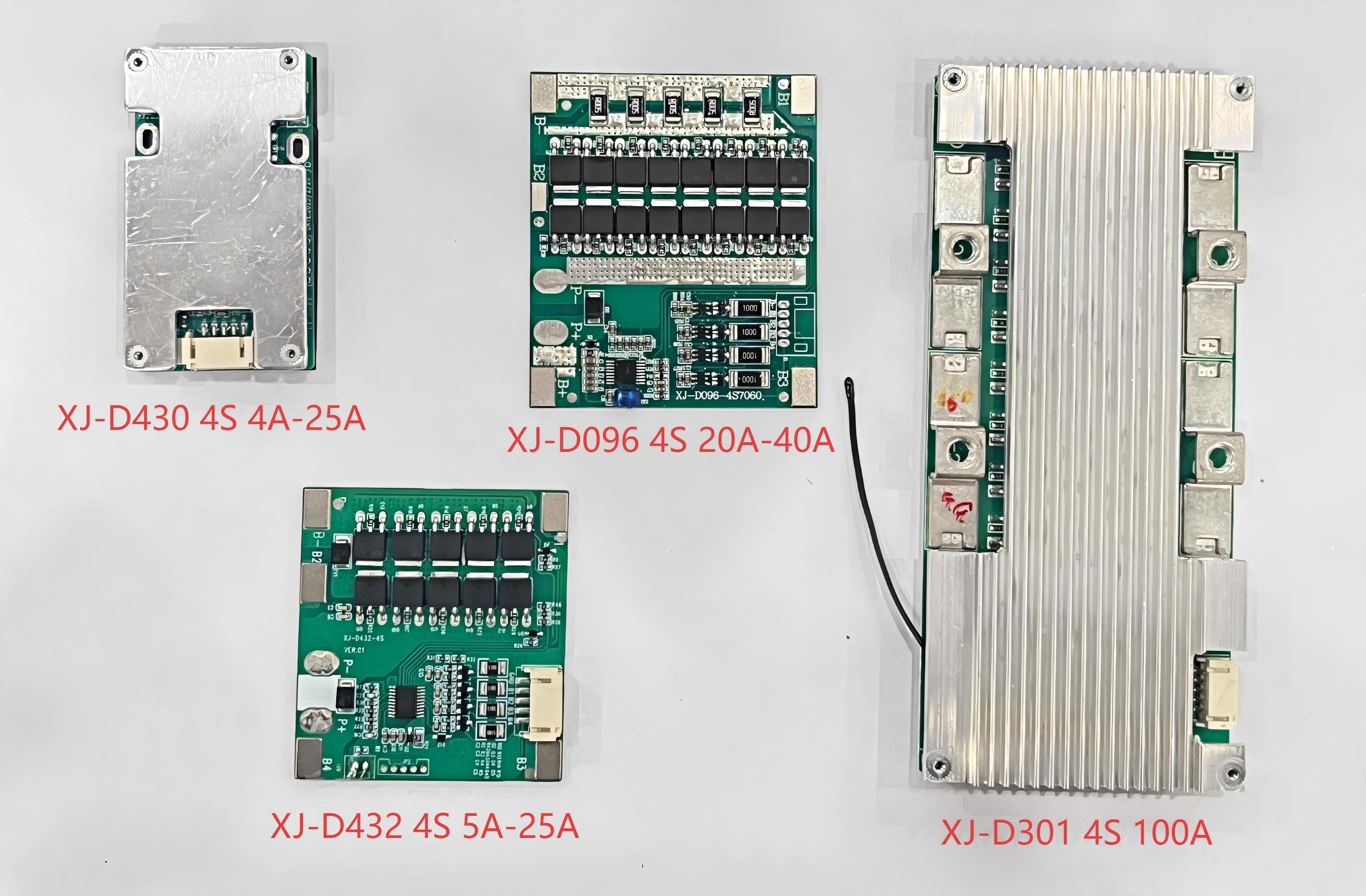

4S Series BMS (For 4x 18650/21700 Cells in Series): Ideal for 14.8V devices, like large solar street lights, electric toys, and small portable appliances:

XJ-D096: 4S 20A-40A, 52*17*5 MM (compact for 14.8V devices)

XJ-D430: 4S 10A-25A, 45*45*4.5 MM (adjustable current for versatile 14.8V applications)

XJ-D432: 4S 10A-25A, 45*45*4.5 MM (affordable high-volume option for 14.8V devices)

XJ-D301: 4S 50A-100A, 90*45*4.5 MM (heavy-duty 4S BMS for high-power 14.8V devices)

Why Choose XJBMS?

Low Cost, High Quality: Affordable pricing for bulk orders (perfect for India’s price-sensitive market) without compromising core protection features (overcharge, over-discharge, short circuit protection).

High-Volume Availability: We specialize in large-quantity production, ensuring you can meet India’s massive demand for small electronics.

Compact & Versatile: All models are compact, fitting in small device enclosures, and compatible with 18650/21700 cells—the most common in Indian electronics.

Tailored for India’s Needs: Designed for the applications driving India’s electronics growth (solar street lights, toys, personal care devices) with the right current/voltage ratings.

High-Volume Discounts: Competitive pricing for bulk orders (10,000+ units) to help you keep costs low and profits high.

Free Samples: Test our 1S-4S BMS models before placing large orders (shipping cost negotiable for Indian buyers).

Fast Delivery: Optimized logistics to ensure timely delivery to India, reducing lead times for your production.

24-Hour Support: Our technical and sales teams are available 24/7 to answer your questions, help you select the right BMS, and support your high-volume orders.
