12V BMS Complete Guide: Cell Strings, Current Grades, Applications
The 12V battery system is the most common, versatile, and widely used low-voltage power solution across consumer electronics, portable devices, industrial equipment, outdoor energy storage, and automotive auxiliary power systems. When selecting a 12V BMS (Battery Management System), most buyers are confused: Is 12V a precise voltage value or a general industry term? Are 12V battery packs 3S or 4S lithium cells? What are the application differences between low-current, medium-current, high-current, and ultra-high-current 12V BMS from 10A to 300A? What battery capacity is required for a 12V 300A high-current system? What safety rules must be followed for 12V lithium battery operation?
Is 12V a Precise Number or a General Concept?
In the battery industry, 12V is a general market nominal voltage concept rather than an absolute precise value. It refers to low-voltage battery packs whose working voltage covers the standard 12V lead-acid battery operating range, compatible with all traditional 12V electrical equipment. Different lithium battery chemistries have different actual nominal voltages but are uniformly defined as 12V systems in the market:
- 3S NMC Ternary Lithium: Nominal 11.1V, full charge 12.6V, universally called 12V battery
- 4S LiFePO4 Lithium Iron Phosphate: Nominal 12.8V, full charge 14.6V, also classified as standard 12V system battery
Both 3S and 4S lithium packs can replace traditional 12V lead-acid batteries, which is why 12V is a unified industry general specification for low-voltage energy storage and power supply systems.
12V Battery: 3S or 4S Lithium Cells?
The string count depends entirely on battery chemistry, which is the core basis for 12V BMS selection:
3S Cells (3 Series) — 12V NMC System
Each ternary lithium cell is 3.7V nominal. 3S combination obtains 11.1V nominal voltage and 12.6V full voltage, perfectly matching the traditional 12V lead-acid voltage range. It features high energy density and light weight, widely used in portable consumer devices.

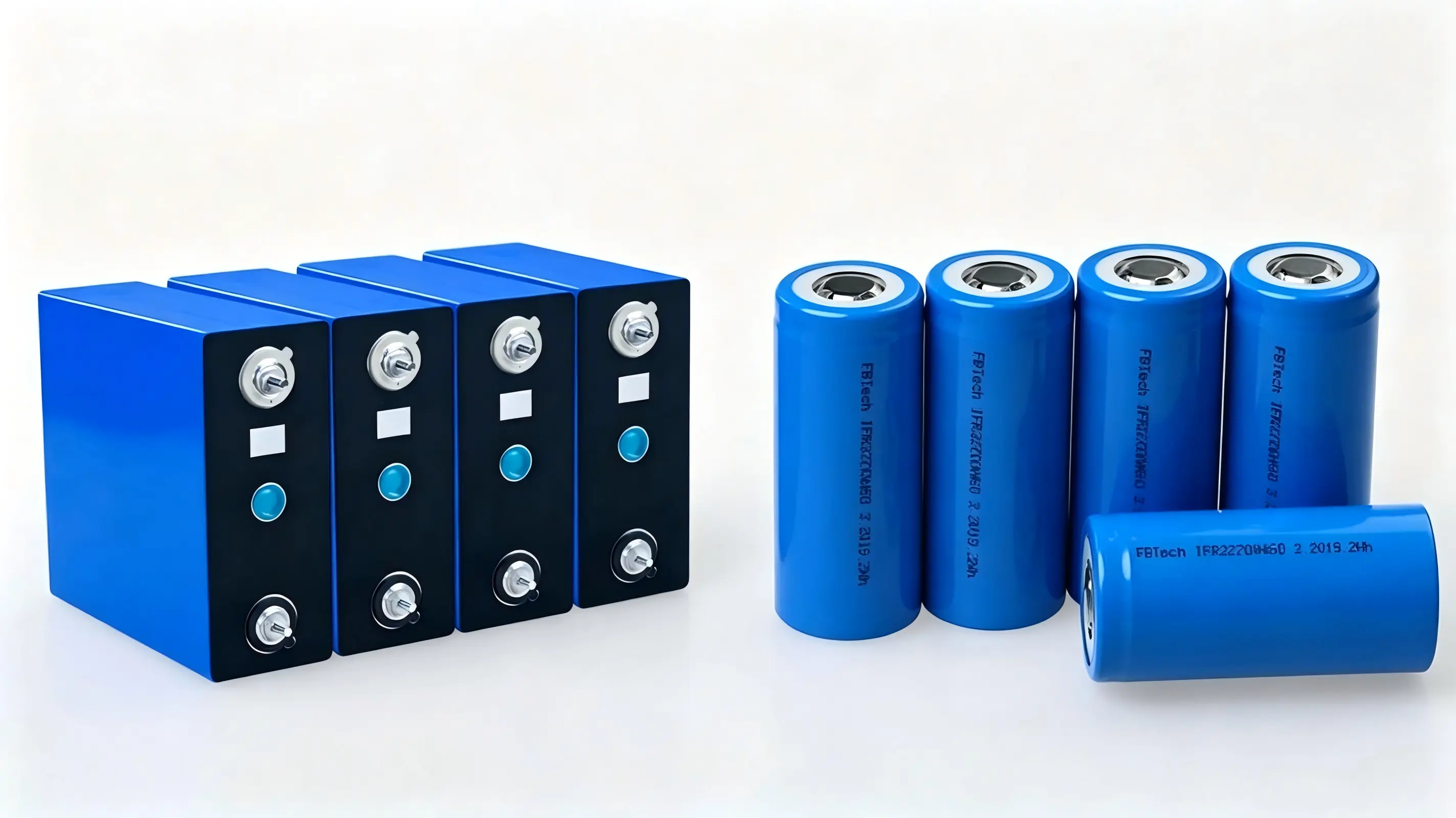

4S Cells (4 Series) — Standard 12V LiFePO4 System
Each LiFePO4 cell is 3.2V nominal. 4S combination reaches 12.8V nominal voltage, the most authentic standard 12V lithium battery system in the industry. With higher safety, longer cycle life and better stability, 4s 12v LiFePO4 batteries dominate industrial energy storage, automotive backup power, and long-cycle equipment.
Conclusion: Civil portable 12V devices mostly use 3S ternary lithium, while industrial and long-life 12V equipment uniformly adopts 4S LiFePO4 batteries. All 12V high-current industrial scenarios in this article apply to 4S BMS.
Full Current Range Application Scenarios of 12V BMS (10A–300A)
Different current grades of 12V BMS correspond to completely different load equipment and application scenarios. The higher the current, the larger the battery capacity and the higher the equipment power demand.
Low Current: 10A–40A (Small Power & Standby Devices)
Suitable for low-power, intermittent working, and standby 12V equipment. No instantaneous high current impact, stable low-load operation.
Typical scenarios: Solar street lamps, garden lights, portable small fans, monitoring backup power, miniature household tools, wireless speakers, and small medical devices.
Matched battery capacity: 2Ah–12Ah
Medium Current: 40A–100A (Medium Power Portable & Daily Equipment)
Adapt to equipment with frequent start-stop and certain instantaneous power demand, requiring stable continuous discharge performance.
Typical scenarios: Medium-power electric tools, portable energy storage power stations, car emergency start power, small cleaning equipment, and household mobile power supplies.
Matched battery capacity: 12Ah–50Ah
High Current: 100A–200A (High Power Industrial & Mobile Equipment)
Used for high-power equipment with large instantaneous current and long-time continuous operation, requiring strong overcurrent resistance and heat dissipation performance of BMS.
Typical scenarios: Large outdoor portable energy storage, small vehicle auxiliary power, high-power cleaning robots, and industrial standby power supplies.
Matched battery capacity: 50Ah–100Ah
Ultra-High Current: 200A–300A (Heavy-Duty Industrial & Starting Equipment)
12V 300A is an ultra-high current specification, mainly used for heavy-load starting and high-power continuous discharge scenarios. It requires large-capacity battery support — the minimum matched battery capacity is 100Ah, and mainstream configurations are 120Ah–200Ah 12V LiFePO4 battery packs. Small-capacity batteries cannot withstand 300A instantaneous discharge and will cause severe voltage drop, cell damage or thermal runaway.
Typical scenarios: Heavy-duty vehicle startup power, large industrial energy storage backup, marine 12V power system, high-power inverter load equipment, and engineering machinery auxiliary power.
Low-Current vs High-Current 12V BMS Core Usage Differences
- Low-current BMS (10A–40A): Focus on miniaturization, low self-consumption, cost performance and basic safety protection. Suitable for light-load, long standby, and low-frequency use civil equipment.
- High-current BMS (100A–300A): Focus on overcurrent resistance, heat dissipation stability, instantaneous impact resistance and continuous load capacity. Suitable for industrial heavy-load, high-frequency startup, and long-time continuous operation equipment.
Critical Safety Precautions for 12V Lithium Battery & BMS
Although 12V is a low-voltage safe system, improper matching and operation will still cause battery damage and safety hazards. The key safety rules are as follows:
- Current matching priority: Never use low-current BMS for high-power heavy-load equipment, which will cause MOS tube burnout and board failure.
- Capacity and current matching: 12V 300A ultra-high current must be matched with 100Ah+ large-capacity LiFePO4 batteries to avoid cell overheating and aging.
- Strict string matching: 3S BMS is only for 11.1V ternary batteries, 4S BMS only for 12.8V LiFePO4 batteries; string mismatch will lead to protection failure.
- Temperature protection monitoring: High-current discharge generates serious heat, and BMS must retain temperature detection function to prevent overheating and thermal runaway.
- Avoid long-term over-discharge: 12V lithium batteries should not be over-discharged for a long time to prevent irreversible capacity loss.
- Standard heat dissipation design: High-current 100A–300A BMS needs reserved heat dissipation space and good ventilation environment.

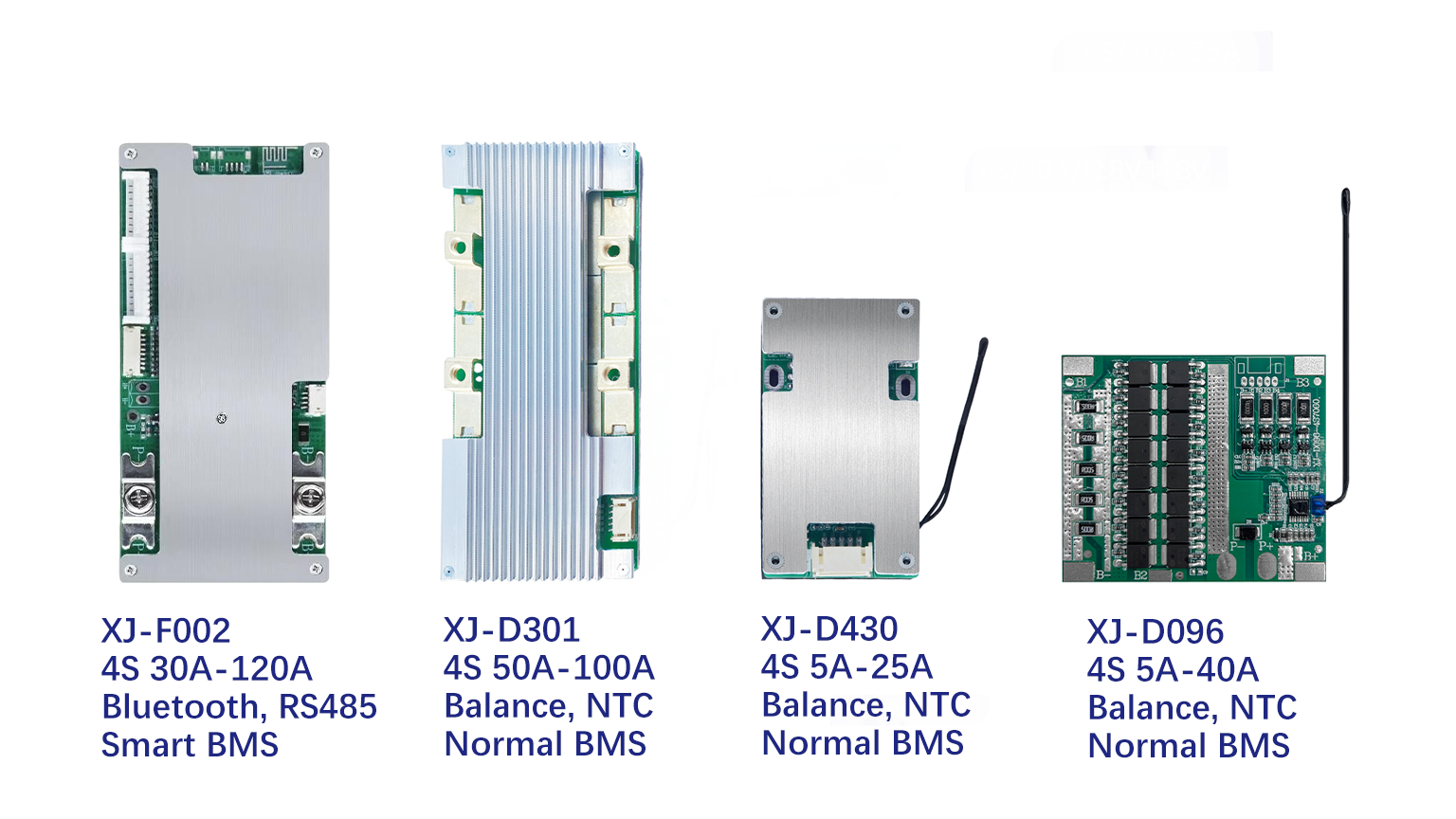

XJBMS Full Range 4S 12V Dedicated BMS Recommendation
All the following models are professional 4S 12V lithium battery BMS, perfectly matching 12.8V LiFePO4 standard systems, covering full current grades from low power 5A to ultra-high power 300A, including hardware basic protection versions and intelligent Bluetooth communication versions, suitable for all 12V civil and industrial scenarios.
Hardware BMS Series (Basic Safety Protection, High Cost-Effective)
- XJ-D430: 4S 5A–25A, low-current universal model for small 12V lighting and portable devices
- XJ-D432: 4S 5A–25A, stable low-current BMS for miniature 12V battery packs
- XJ-D096: 4S 20A–40A, medium-low current, suitable for household medium-power 12V equipment
- XJ-D068: 4S 10A–40A, wide current range, universal for most 12V civilian battery systems
- XJ-D098: 4S 20A–50A, upgraded medium-current version, stronger load capacity
- XJ-D301: 4S 50A–100A, medium-high current, dedicated for 12V portable energy storage and power tools
- XJ-D386: 4S 100A–150A, high-current industrial grade for 12V high-power mobile equipment
- XJ-D038V5: 4S 150A–300A, ultra-high current flagship model, exclusive for 12V heavy-load industrial and starting equipment
Smart Bluetooth BMS Series (Intelligent Monitoring & Data Management)
- XJ-F002C: 4S 30A–60A, compact smart version for medium and small power 12V intelligent devices
- XJ-F002: 4S 30A–120A, universal intelligent BMS with Bluetooth APP real-time battery data monitoring
- XJ-F002A: 4S 150A–250A, high-current smart BMS for 12V high-power intelligent energy storage systems
Conclusion
12V is a general low-voltage system specification in the battery industry, including 3S ternary lithium and 4S LiFePO4 two mainstream configurations. Different current-grade 12V BMS correspond to completely different application scenarios and battery capacity matching standards. Low current suits miniature civil equipment, while 100A–300A ultra-high current must be matched with large-capacity LiFePO4 batteries and strictly follow safety specifications. XJBMS full-series 4S 12V BMS covers all scenario demands from household portable devices to industrial heavy-load equipment, providing the safest and most professional battery management solutions for global 12V low-voltage systems.
