Hardware BMS

XJ-D038V3 BMS, 4S-20S 150A-300A, same port, supports LifePO4, NMC, Sodium-ion battery—this model with balance, NTC Temperature sensor, and weak current switch.

This device supports 4 - 25 strings of battery cells. With a maximum continuous working current of 100A/150A and a peak current reaching up to 450A, it's compatible with ternary lithium, lithium iron phosphate, and sodium ion battery packs. It's widely applied in low - speed electric vehicles, two - wheelers, three - wheelers, and forklifts. By offering enhanced protection, it improves battery safety and stability, thus extending battery life significantly.

This model, XJ-D301, 4S 100A, supports LiFePO4 and NMC batteries. Max working current is 100A, with balance, NTC temperature sensors, and a double-layer heat sink. Support LCD, display the battery data, voltage, current, and battery capacity.

This model XJ-D068 is designed for electric two-wheelers and electric three-wheelers, and is suitable for ternary batteries, lithium iron phosphate batteries, and sodium batteries. It supports battery packs with 4 to 21 cells, working current of 40A.

This model XJ-D494 BMS, 6S-16S 10A-60A, is designed for electric two-wheelers and three-wheelers. Separate port, the charge current is 5A, and the discharge current is 10A to 60A, it depends on your need. With balance, NTC temperature sensors, weak current switch, over-short, over-discharge, over-voltage, and over-current protection. Suitable for NMC 3.7V batteries and LiFePO4 3.2V batteries.

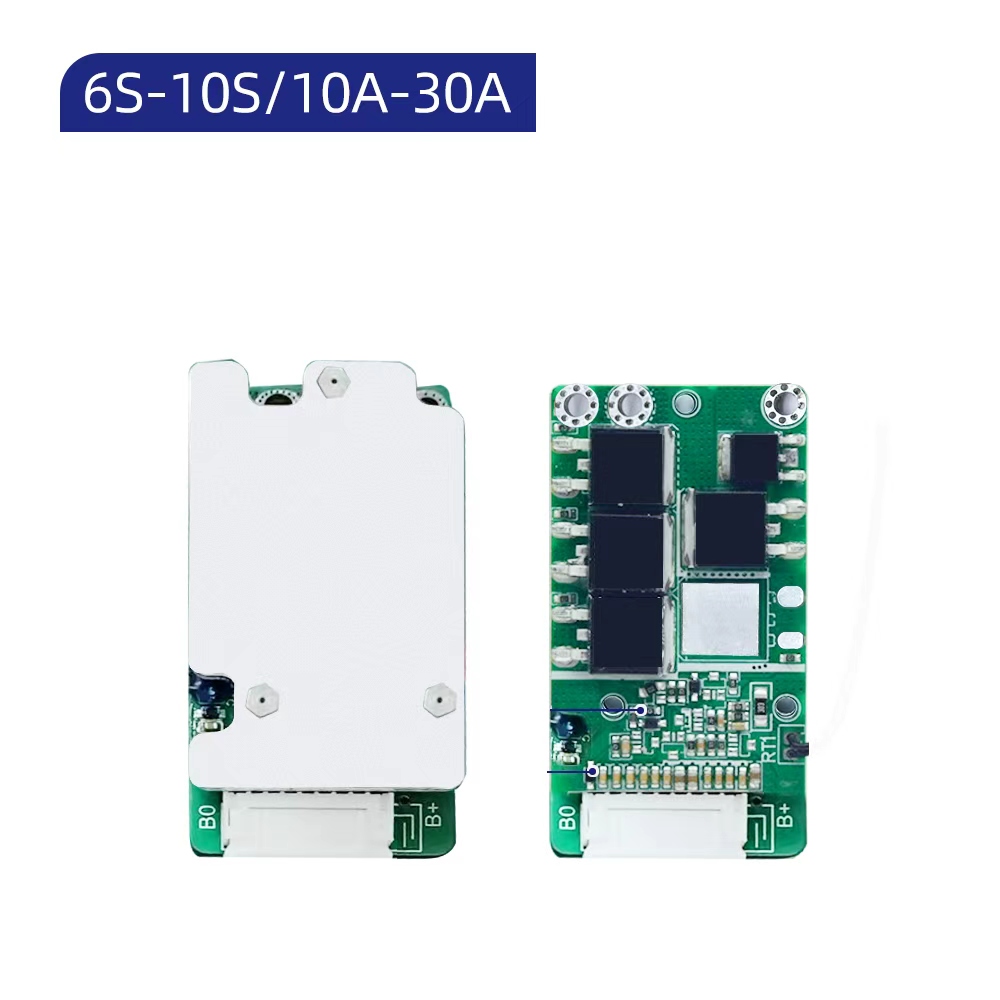

This model XJ-D318 is designed for electric scooters, and is suitable for lifePO4 and Li-ion batteries, lithium iron phosphate batteries. It supports battery packs with 6 to 10 cells, working current of 10A-30A. With balance, NTC, and available weak current switch.

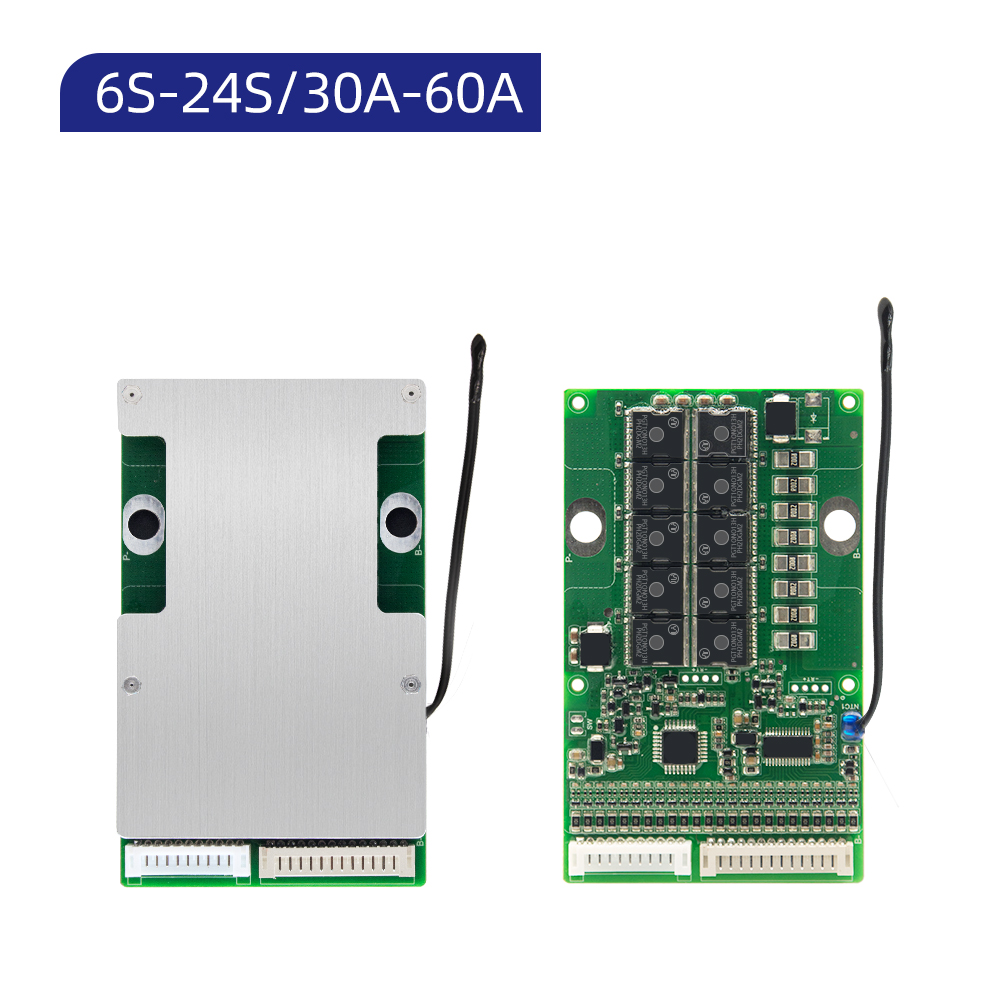

This model XJ-D565 BMS, 6S-24S 30A-60A, is designed for electric two-wheelers and three-wheelers, low speed electric vehicle, electric power tools . Common port, the charge current and the discharge current is 30A to 60A, it depends on your need. With passive balance, NTC temperature sensors, over-short, over-discharge, over-voltage, and over-current protection. Suitable for LifePO4, Lithium-ion (NMC) and Sodium-ion (Na-ion) batteries.

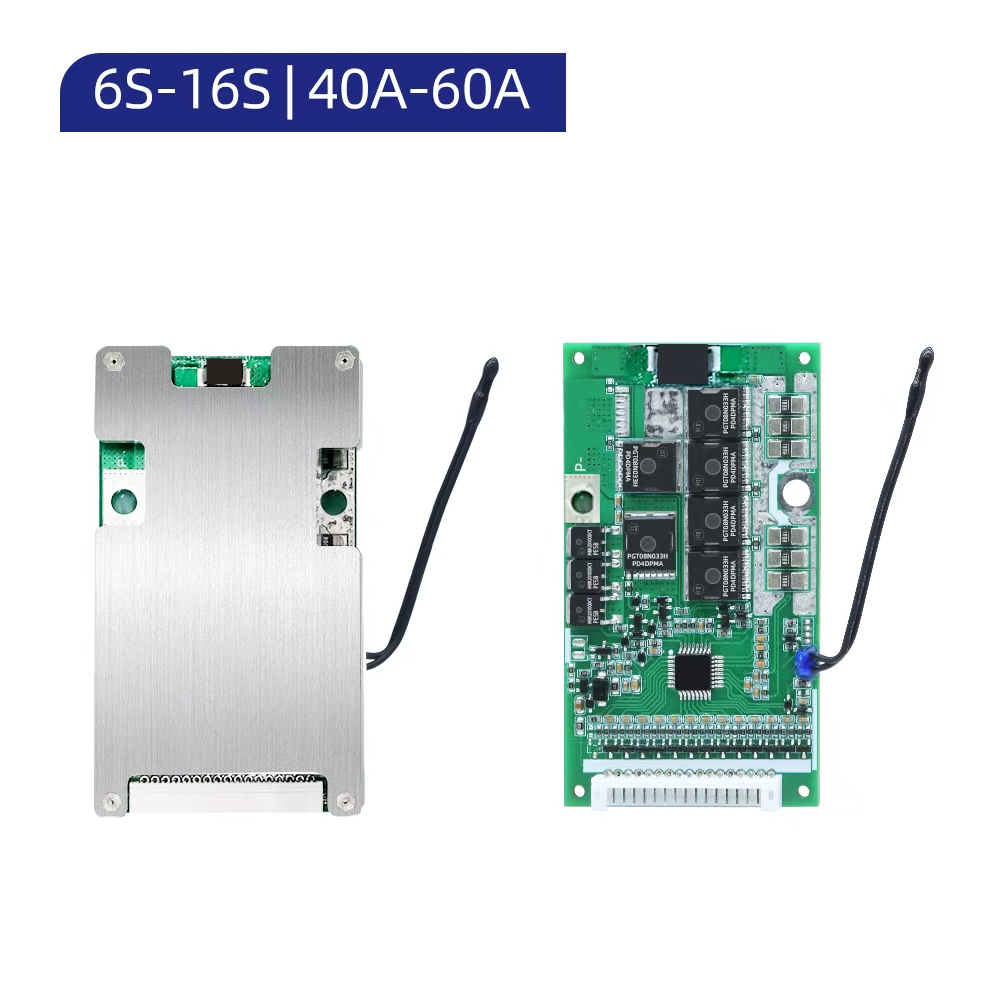

This model XJ-D495 BMS, 6S-16S 10A-60A, is designed for electric two-wheelers and three-wheelers. Common port, the charge current and the discharge current is 10A to 60A, it depends on your need. With balance, NTC temperature sensors, over-short, over-discharge, over-voltage, and over-current protection. Suitable for NMC 3.7V batteries and LiFePO4 3.2V batteries.

This model XJ-D042 3S 12V 8A, support 3-cell LifePO4/NMC/L-ion battery. Application to electric power tools, sweeping robot, etc. With overcharge/overdischarge/overcurrent/short-circuit protection and NTC, optional with nickel strip or without nickel strip.

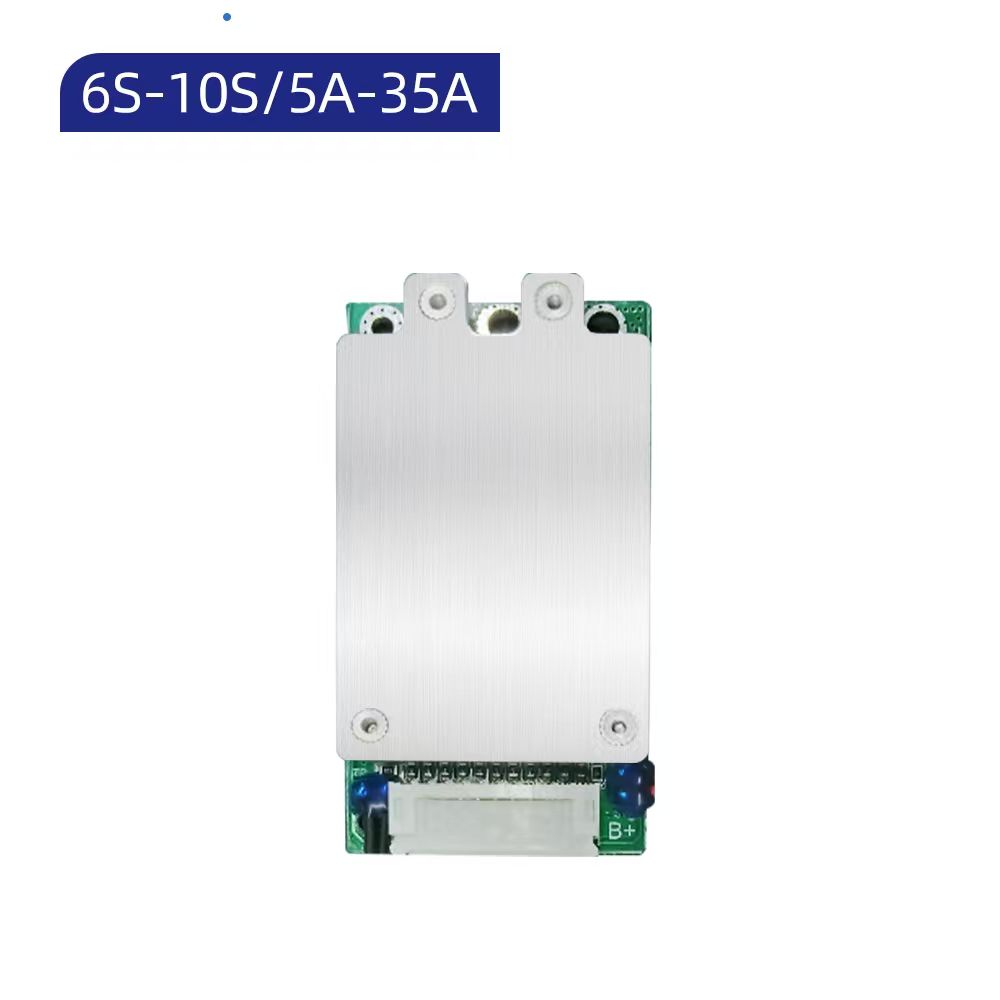

This model XJ-D307 is designed for electric scooters, and is suitable for lifePO4 and Li-ion batteries, lithium iron phosphate batteries. It supports battery packs with 6 to 10 cells, split port, charge 5A, discharge 20A-35A. With NTC, and available weak current switch. Application electric scooters and e-bikes.

XJ-D145, 4S 5A/10A, support 4-cell 3.2V LifePO4, 3.7V NMC (Li-ion) battery. Application to small Bluetooth speakers, small power tools, children's electric scooters, outdoor camping mini energy storage boxes (power ≤100W), small electrical appliances (such as camping lights, small fans), medical small devices such as portable blood glucose meters. Small oxygen generator (household mini version), etc.

With overcharge/overdischarge/overcurrent/short-circuit protection, optional with nickel strip or without nickel strip.

XJ-D133, 4S 4A/8A, support 4-cell 3.2V LifePO4, 3.7V NMC (Li-ion) battery. Application to small Bluetooth speakers, small power tools, children's electric scooters, outdoor camping mini energy storage boxes (power ≤100W), small electrical appliances (such as camping lights, small fans), medical small devices such as portable blood glucose meters. Small oxygen generator (household mini version), etc.

With overcharge/overdischarge/overcurrent/short-circuit protection and NTC, optional with nickel strip or without nickel strip.
