Electric Power Tools BMS

From 4S to 25S, 10A to 300A, application LifePO4, NMC, sodium-ion, lead-to-lithium batteries. Smart BMS and hardware BMS.

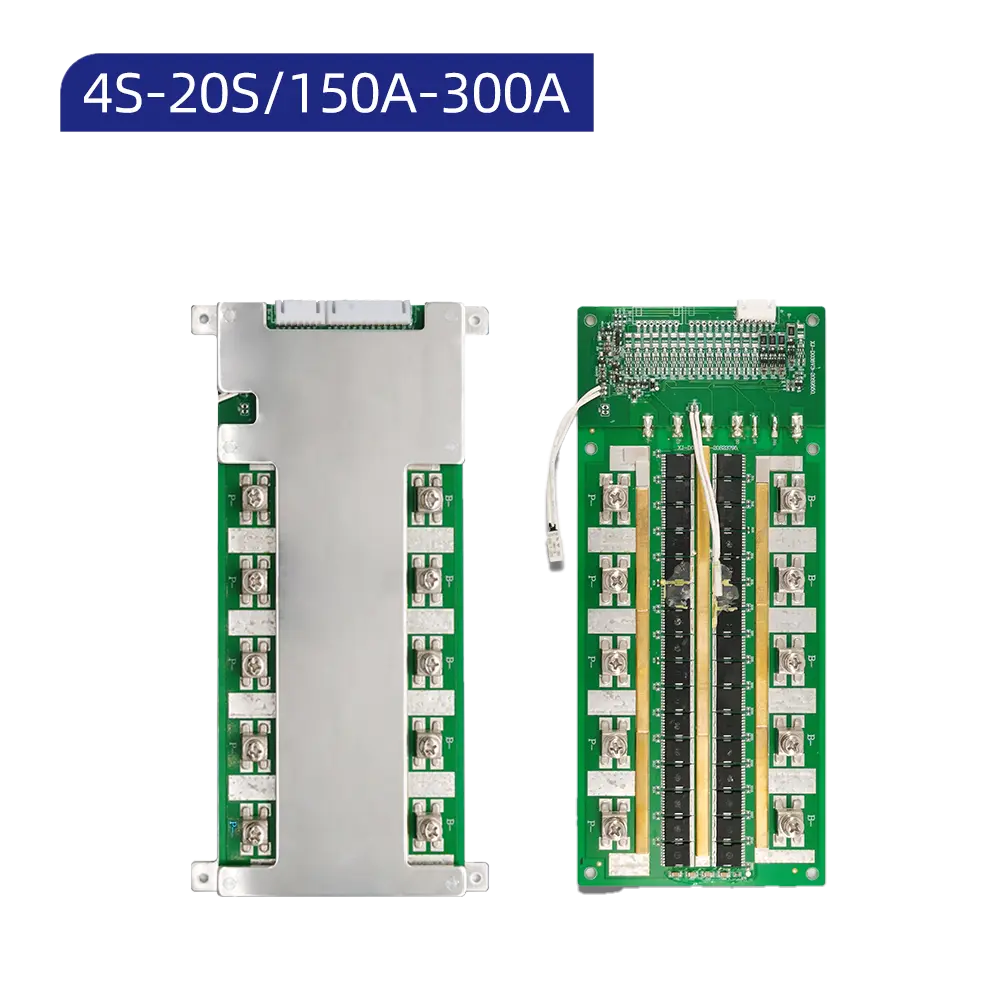

XJ-D038V3 Hardware BMS

4S-20S, 150A-300A.

Passive balance. 2 NTC, temperature protection, better heat dissipation function.

BMS size 154*85*13mm, weight 550g (4S 250A).

Over-charge/over-discharge/over-current/over-voltage/short circuit/temperature protection.

Applicable to LifePO4, Li-ion (NMC), sodium-ion batteries.

Suitable for high-power electric tools, such as lawn mowers, with large current and high temperature.

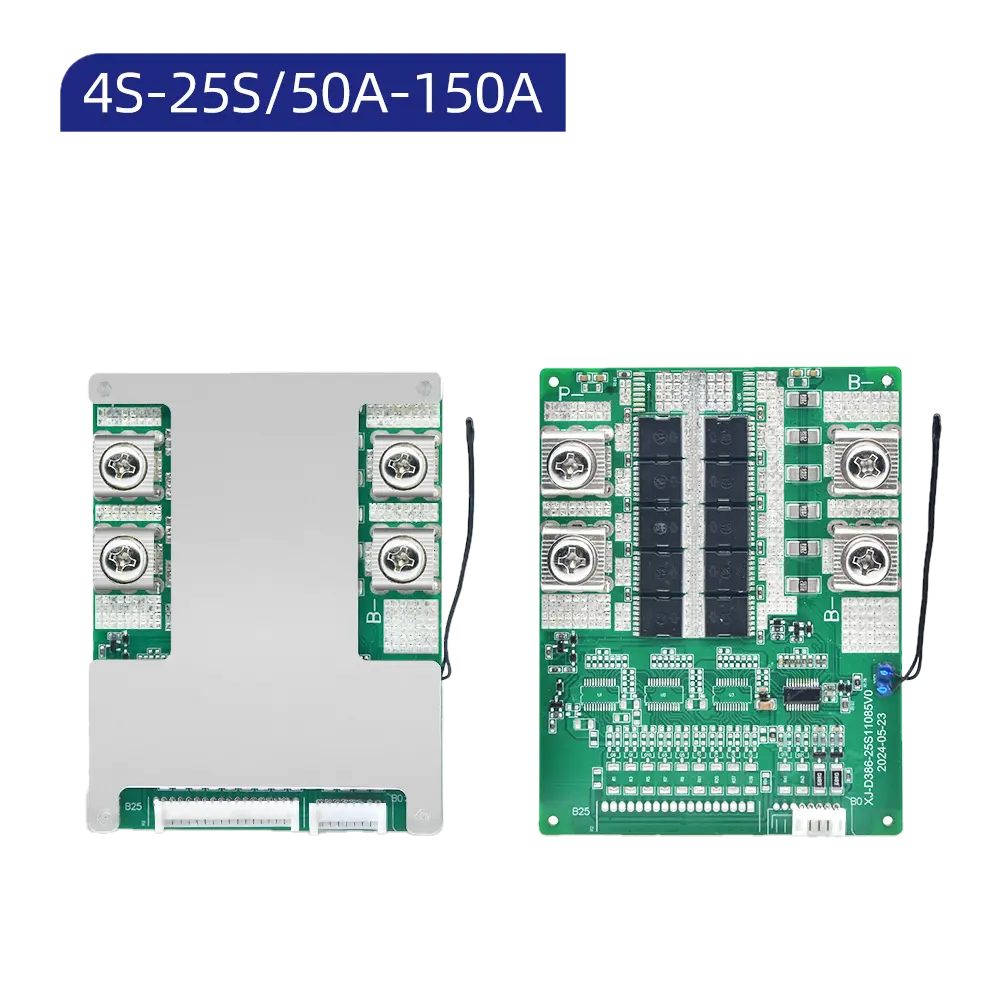

XJ-D386 Hardware BMS

4S-25S, 50A-150A.

Passive balance. NTC, temperature protection.

BMS size 110*85*16mm, weight 177g (4S 100A).

Over-charge/over-discharge/over-current/over-voltage/short circuit/temperature protection.

Applicable to LifePO4, Li-ion (NMC), sodium-ion batteries.

Suitable for electric gardening tools, angle grinders and other tools with high working current.

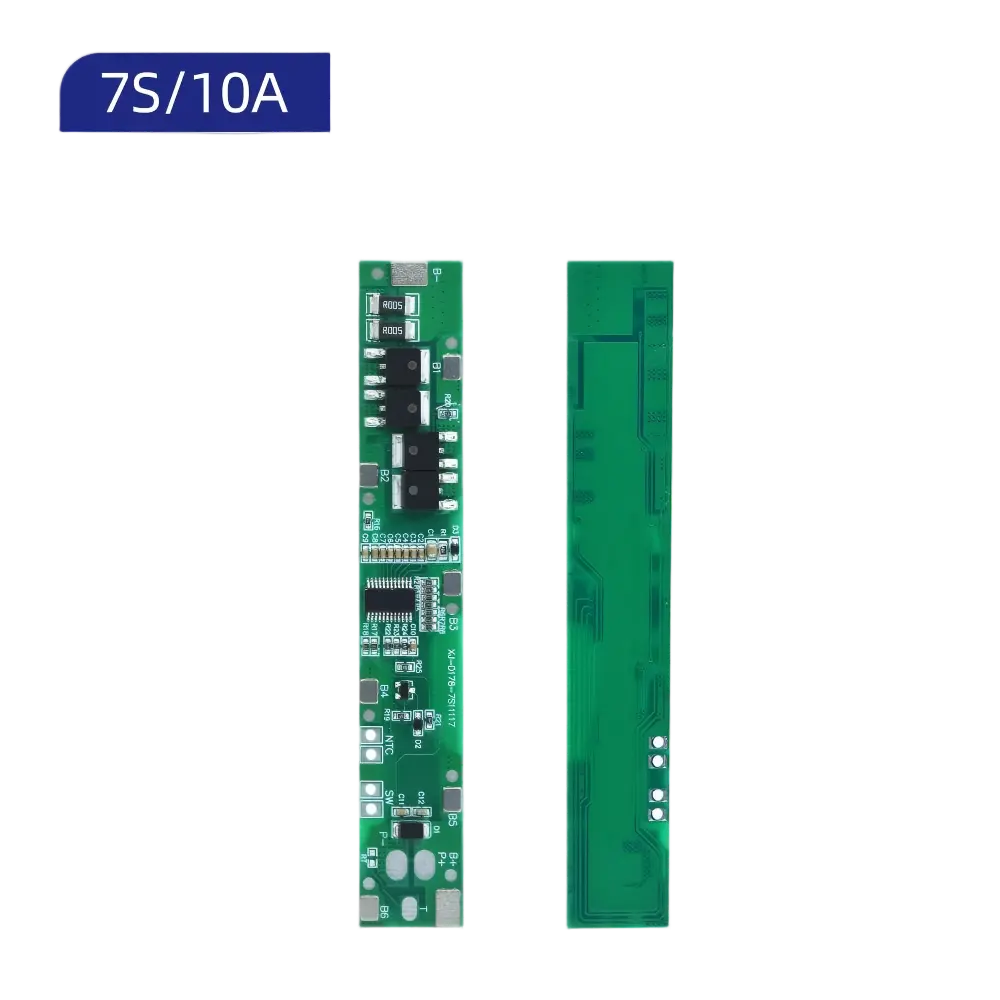

XJ-D178 BMS

7S, 5A-10A. Common port.

NTC, temperature protection. Weak current switch.

BMS size 111.3*17.5*1mm, weight 6.6g.

Over-charge/over-discharge/over-current/over-voltage/short circuit/temperature protection.

Applicable to Li-ion (NMC) batteries.

Suitable for electric drills, electric screwdrivers, small electric saws, small lawn mowers, hair dryers, small UPS units, LED emergency lights, etc.

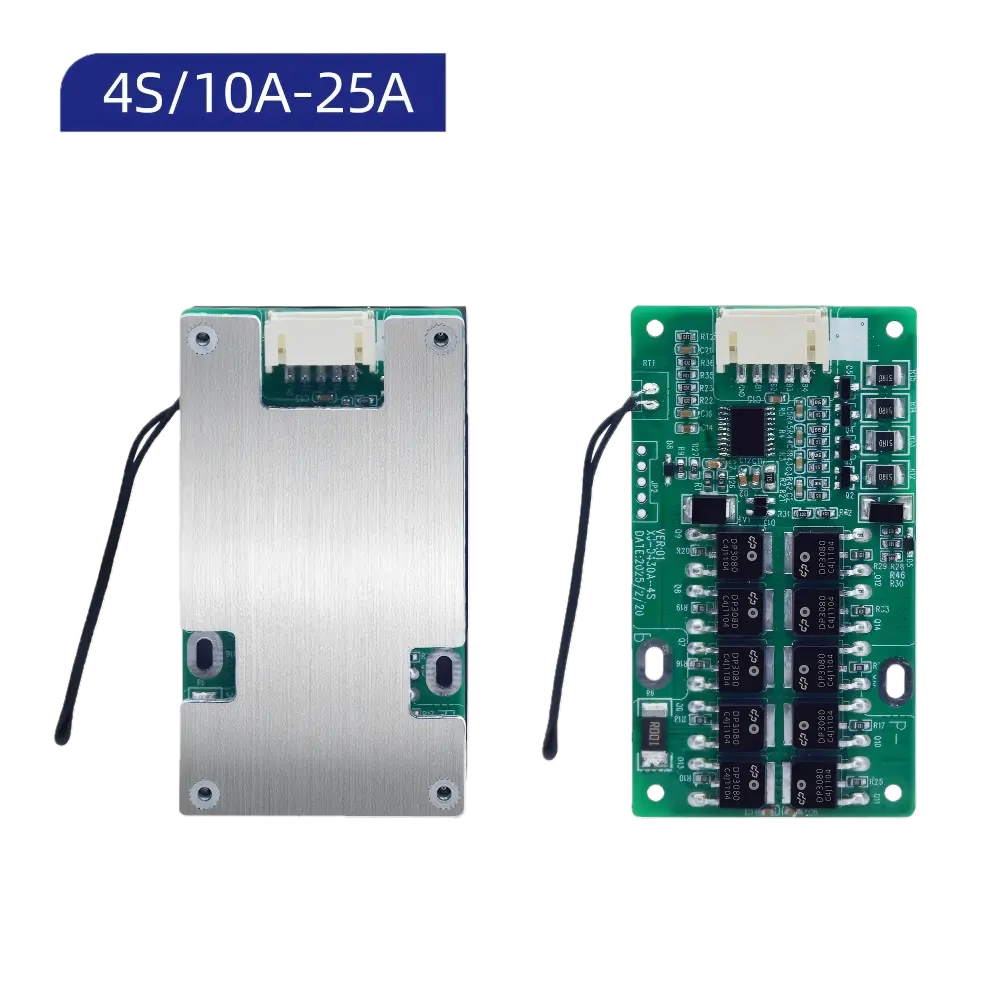

XJ-D430 BMS

4S, 10A-25A.

Passive balance. NTC, temperature protection.

BMS size 65*36*8mm, weight 31g.

Over-charge/over-discharge/over-current/over-voltage/short circuit/temperature protection.

Applicable to LifePO4, Li-ion (NMC), sodium-ion batteries.

Suitable for high-power vacuum cleaners, electric mops, floor scrubbers, audio equipment, outdoor power storage, and folding electric vehicles...

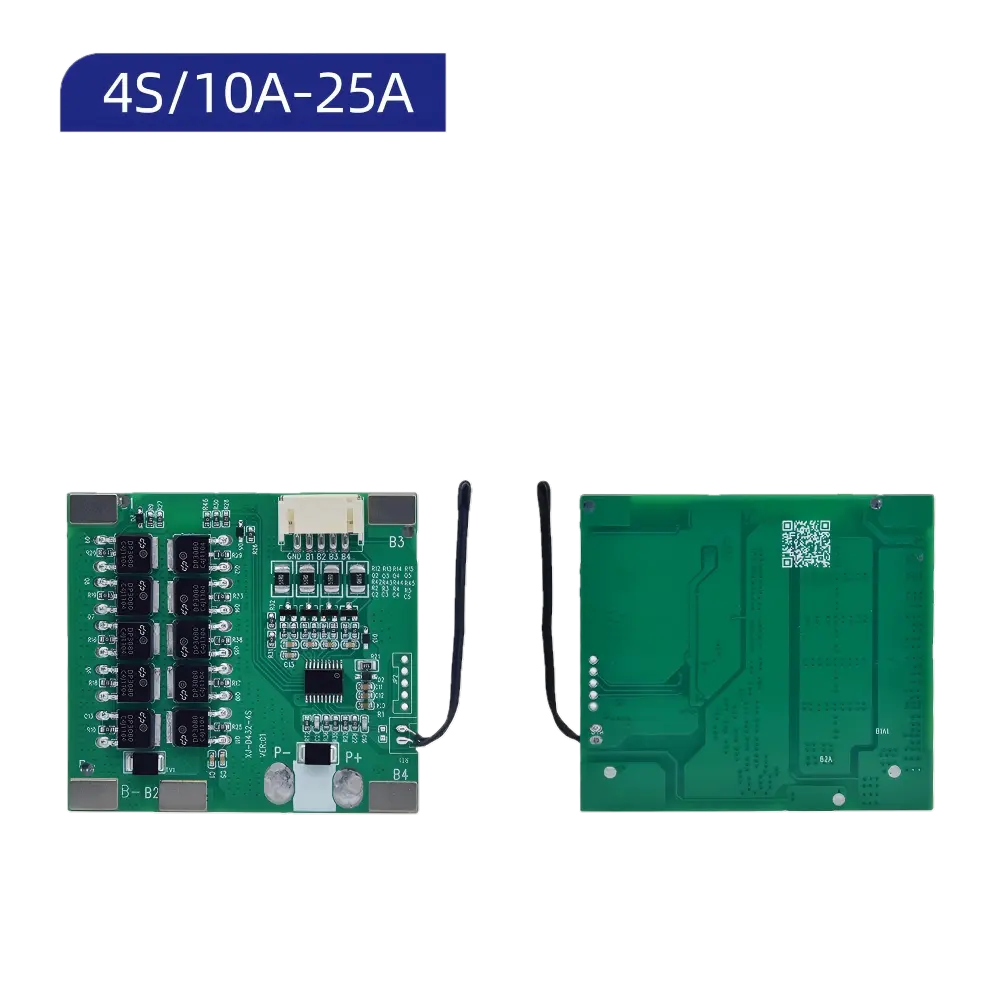

XJ-D432 BMS

4S, 10A-25A.

Passive balance. NTC, temperature protection.

BMS size 59*54*4mm, weight 20g.

Over-charge/over-discharge/over-current/over-voltage/short circuit/temperature protection.

Applicable to LifePO4, Li-ion (NMC), sodium-ion batteries.

Suitable for high-power vacuum cleaners, electric mops, floor scrubbers, audio equipment, outdoor power storage, and folding electric vehicles...

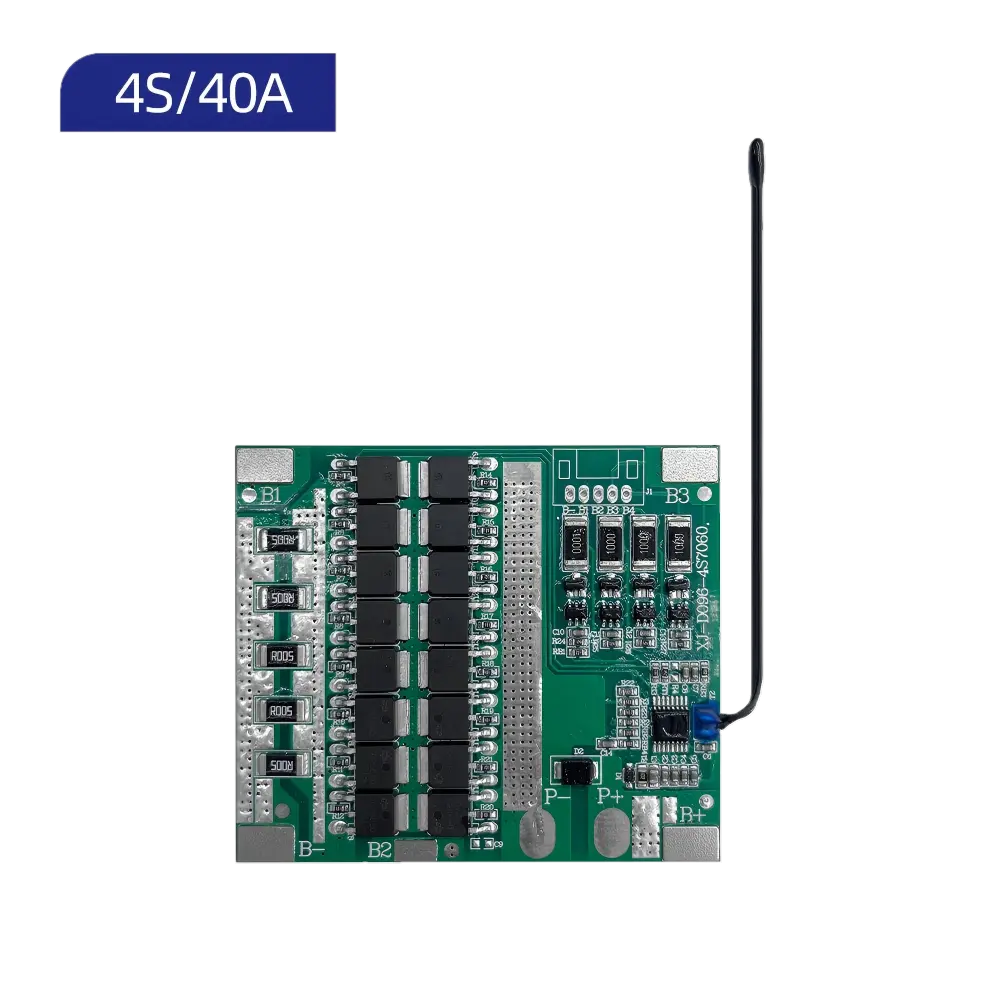

XJ-D096 BMS

4S, 5A-40A.

Passive balance. NTC, temperature protection.

BMS size 70*60*6mm, weight 24.7g.

Over-charge/over-discharge/over-current/over-voltage/short circuit/temperature protection.

Applicable to LifePO4, Li-ion (NMC) batteries.

Suitable for electric tools, gardening tools, portable power storage devices, household appliances, and children's skateboards...

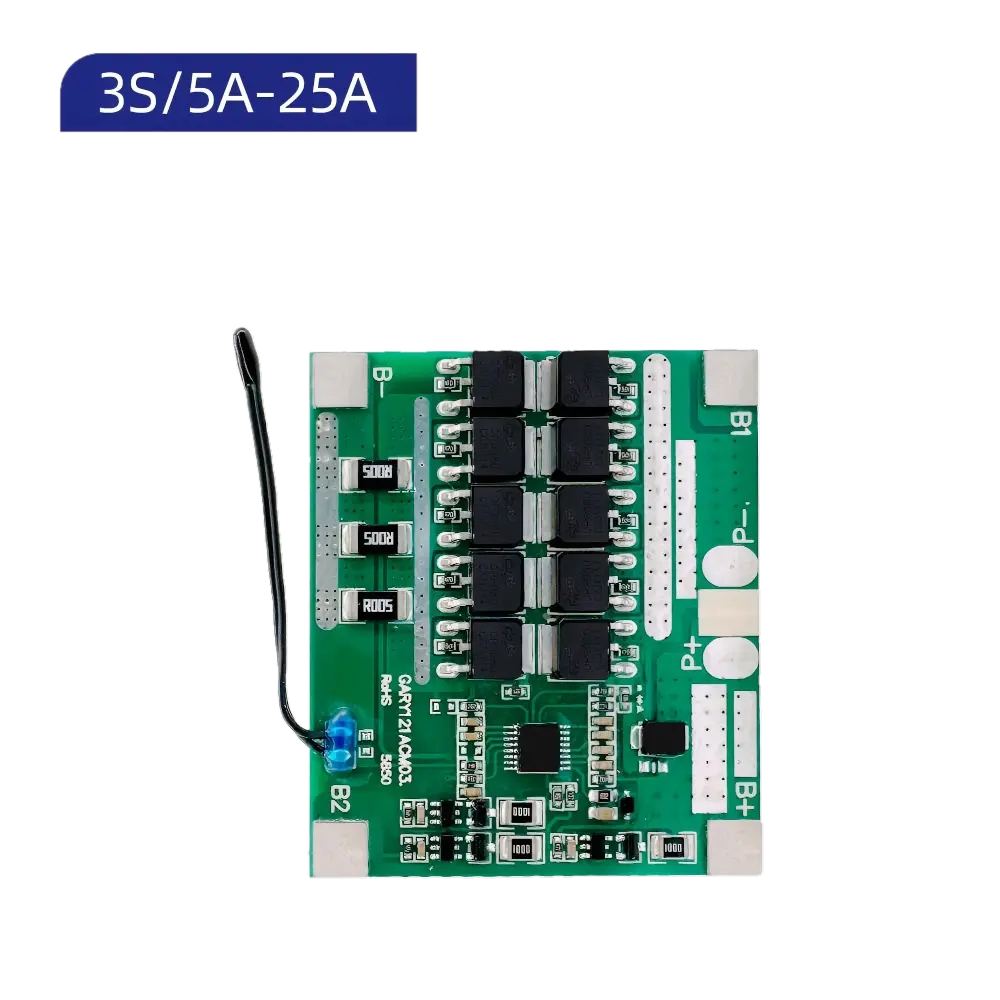

XJ-D102 BMS

3S, 5A-25A.

Passive balance. NTC, temperature protection.

BMS size 58*50*6mm, weight 13g.

Over-charge/over-discharge/over-current/over-voltage/short circuit/temperature protection.

Applicable to LifePO4, Li-ion (NMC) batteries.

Suitable for electric tools, gardening tools, portable power storage devices, household appliances, and children's skateboards...

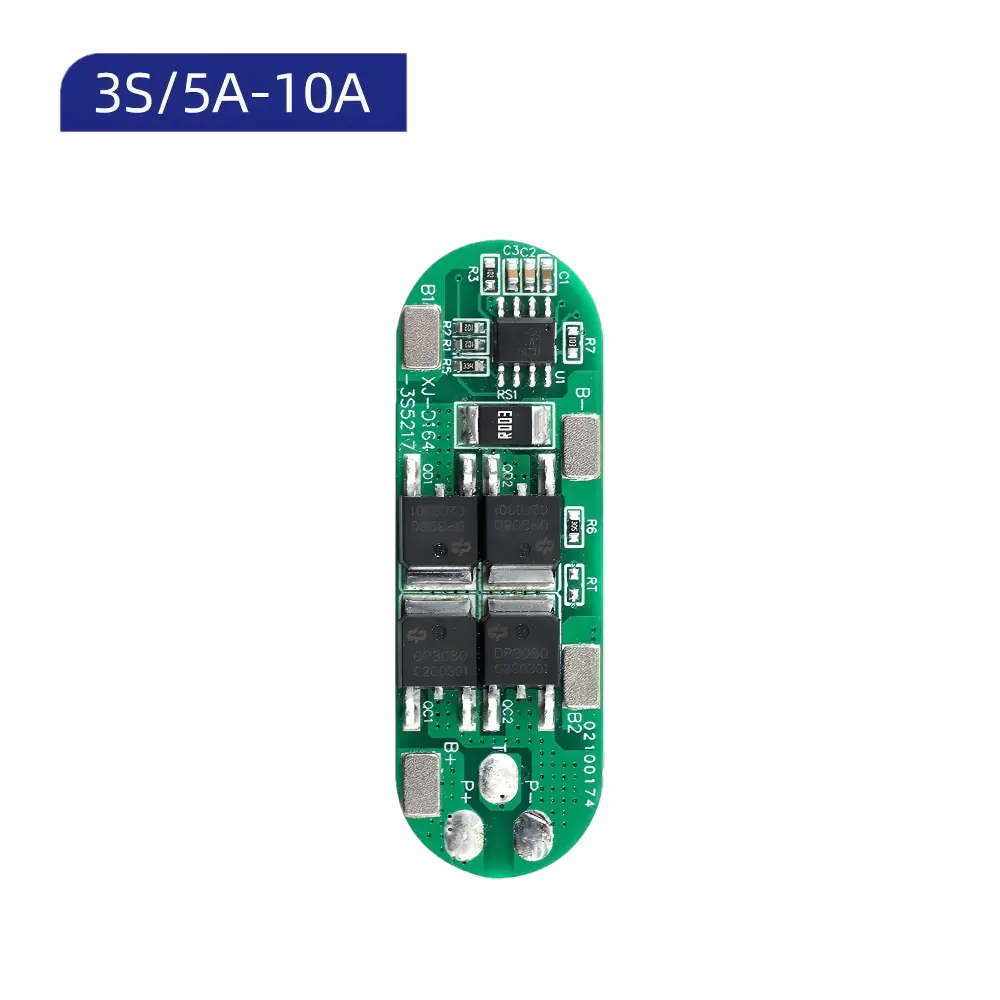

XJ-D164 BMS

3S, 5A/10A. Common port.

NTC, temperature protection.

BMS size 52*17*5mm, weight 3.7g.

Over-charge/over-discharge/over-current/over-voltage/short circuit/temperature protection.

Applicable to Li-ion (NMC) batteries.

Suitable for electric tools, gardening tools, portable power storage devices, household appliances, and children's skateboards...

Application

XJBMS provides you with a perfect BMS solution for high-performance battery protection!

Electric Tricycle BMS

Many tricycles use 13S-24S 40A-120A batteries, lithium iron phosphate or ternary lithium batteries, with equalization/overcharge/over-discharge/overcurrent/short circuit/high and low temperature protection. XJ BMS meets all these requirements.

Electric 2-Wheeled BMS

BMS for electric two-wheelers depends on the intended use of the vehicle. Electric two-wheelers include electric bicycles, electric scooters, and electric motorcycles, and the required specifications are mostly 7S-24S 15A-50A, with balancing. The battery types are lithium iron phosphate and ternary lithium.

Starter BMS

For starting power supplies (BMS): XJ-D426 4S 100A/120A, peak current up to 1000A; XJ-D549 8S 150A-250A, peak current up to 2000A, these two models are used in four-wheeled vehicles. XJ-D444 4S 30A-40A, peak current up to 650A, used in motorcycles, with sales exceeding 100,000 units.

Electric Power Tools BMS

The BMS depends on the case. For small power tools, a 4S-8S 10A-40A BMS is sufficient. For larger tools such as lawnmowers, heat dissipation and temperature control protection are essential because the high operating current can cause heat generation. A good BMS can extend battery life.
