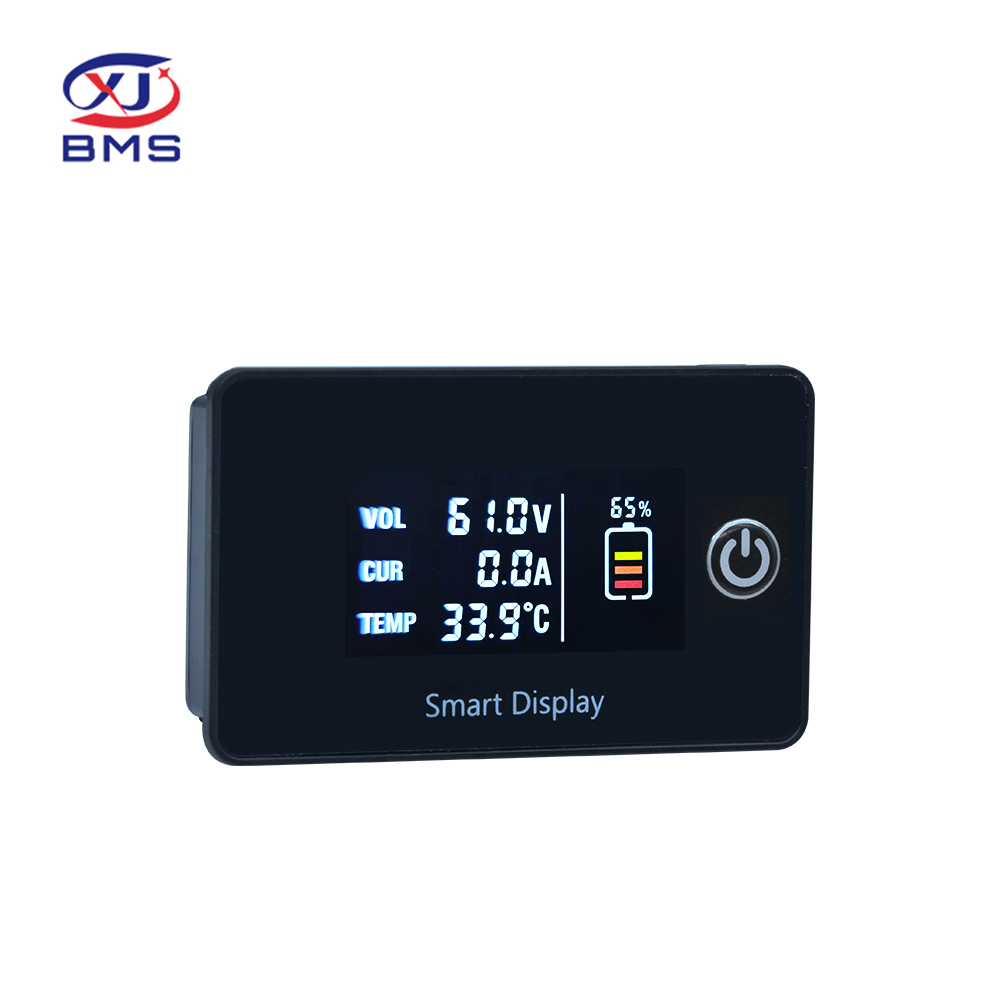

The display screen is used as a serial port screen: GND is connected to B-, TX, RX is connected to RX, TX of BMS, VCC is connected to B+, and the serial port UART baud rate "9600; When the display screen is used as a Bluetooth screen, connect GND to B- and VCC to B+. VCC voltage range: 6V to 100V.

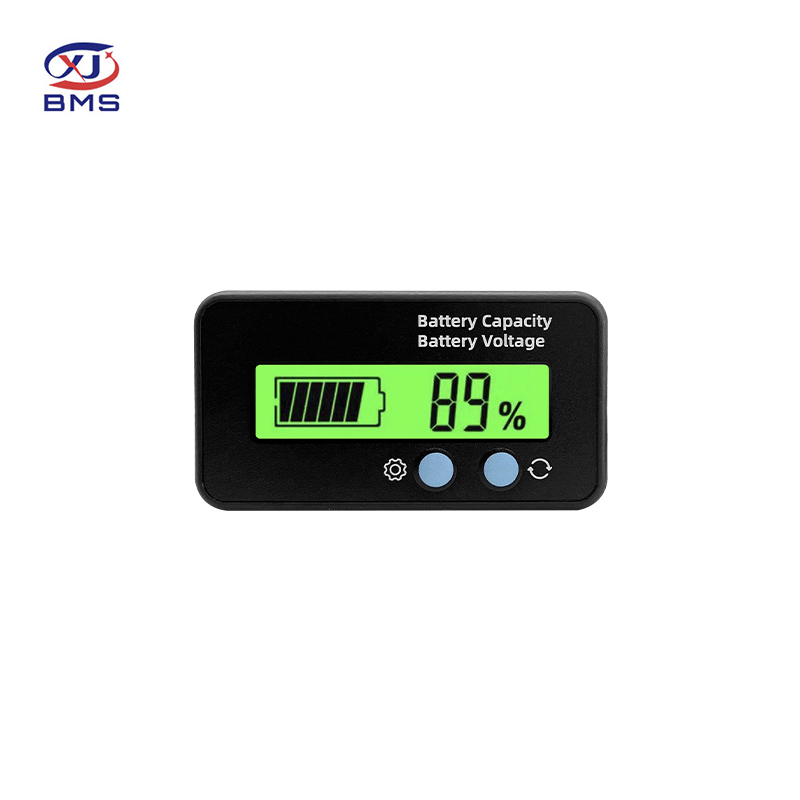

Size: 63.8 x 38.6 x 15.3 mm (2.51 x 1.52 x 0.60 inch)

• Voltage Test Range: 6-100V
• Operating Current <12mA, Standby Current < 5mA.
• Display: LCD
• Color: Green, White, Blue
• Test Accuracy: 1%
• Measurement Speed: Approximately 2 times per second.
• Dimensions: 61.3*33.3mm
• Wiring Length: 30cm
• Cutout Dimensions: 58.5*29.5mm
• Weight: 20g
