9S-16S 2A Active Balance BMS for LifePO4 NMC Sodium-ion Battery
|
Type |
Specification |
|
(1) 16S 2A Active balancer |

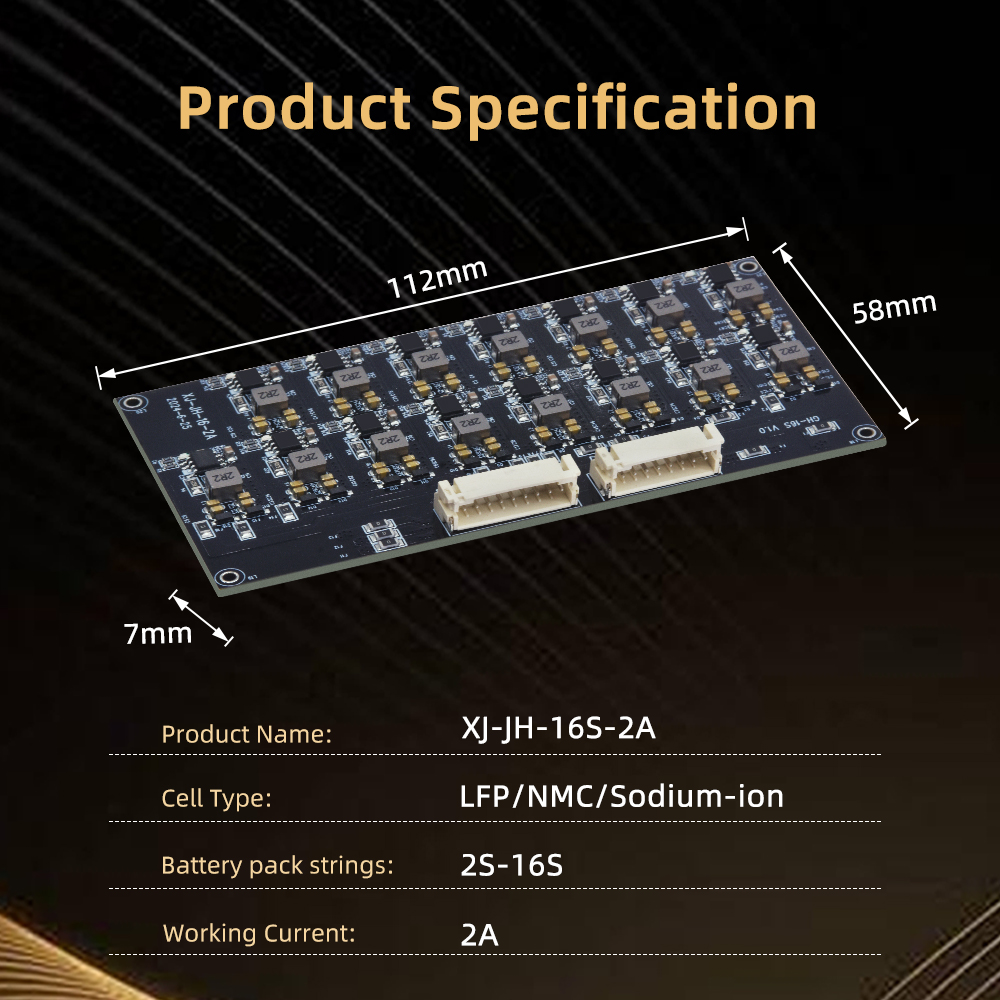

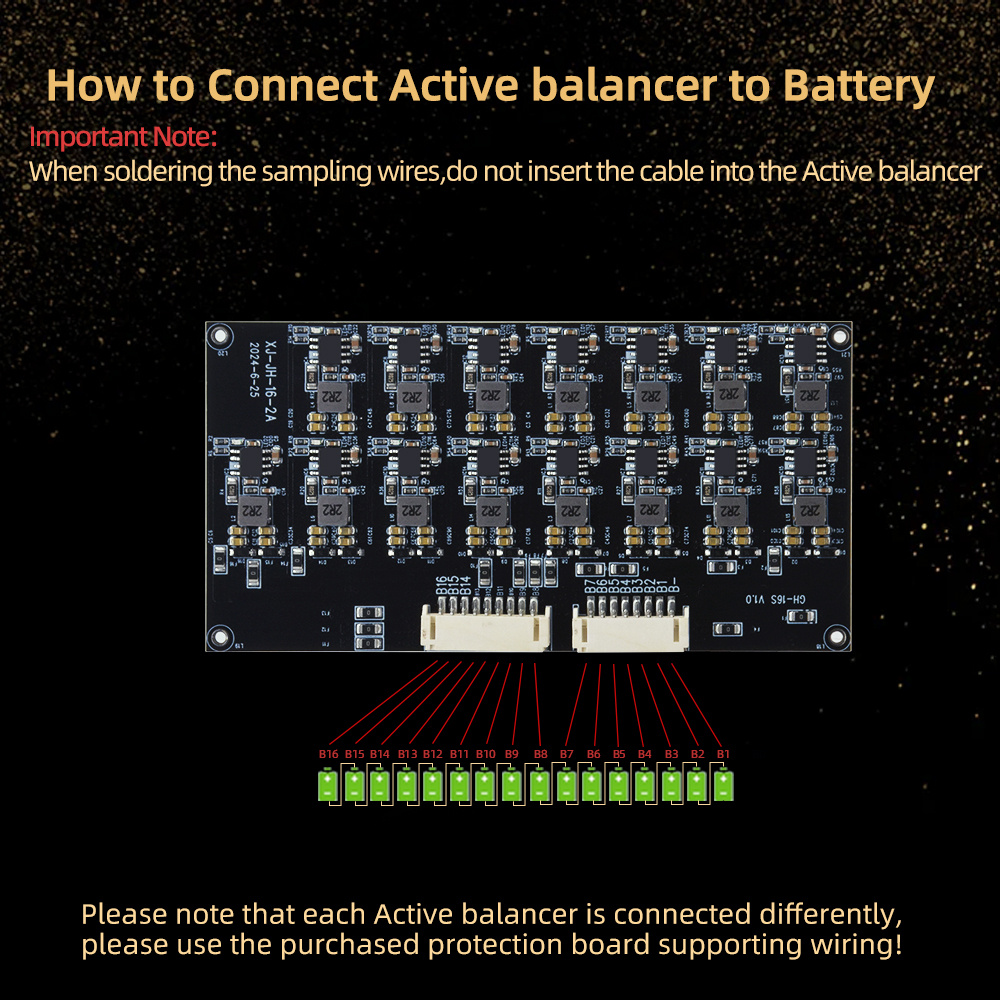

Supports 9S-16S Batteries. Battery Type: NMC/LFP/Na-ion Dimension: 112*58*7mm |
|
Project |
Symbol |
The detailed content |
Standard |
|
Input voltage range |
VDET1 |
Single battery voltage |
2.8V-4.20V |
|
|
tVDET1 |
4 series total voltage |
11.2V－16.8V |
|
Power balance start condition |
VBU |
Voltage difference between batteries |
Voltage Difference ≧45mV±15mV |
|
Equilibrium stop condition |
VDET2 |
The average battery voltage is less than |
11.2V±15mV |
|
|
tVDET2 |
The voltage of a single battery is less than |
2.8V±15mV |
|
equalizing current |
IDP1 |
Single node current(The balance current is proportional to the voltage difference between cells) |
2A(MAX) |
|
Accuracy of equalization |
tVDET1 |
Voltage difference between batteries |
50mV |
|
Balanced static power consumption |
IDP |
(Power consumption during balanced startup) |
5uA |
|
Environment requirement
|
℃ |
Operating/storage temperature |
-15℃-65℃ |
|
|
0%RH |
Operating/storage humidity |
10%RH－70%RH |
|
PCB Size |
|
PCB Length, Width, Thickness |
≦33X45X4.5mm |

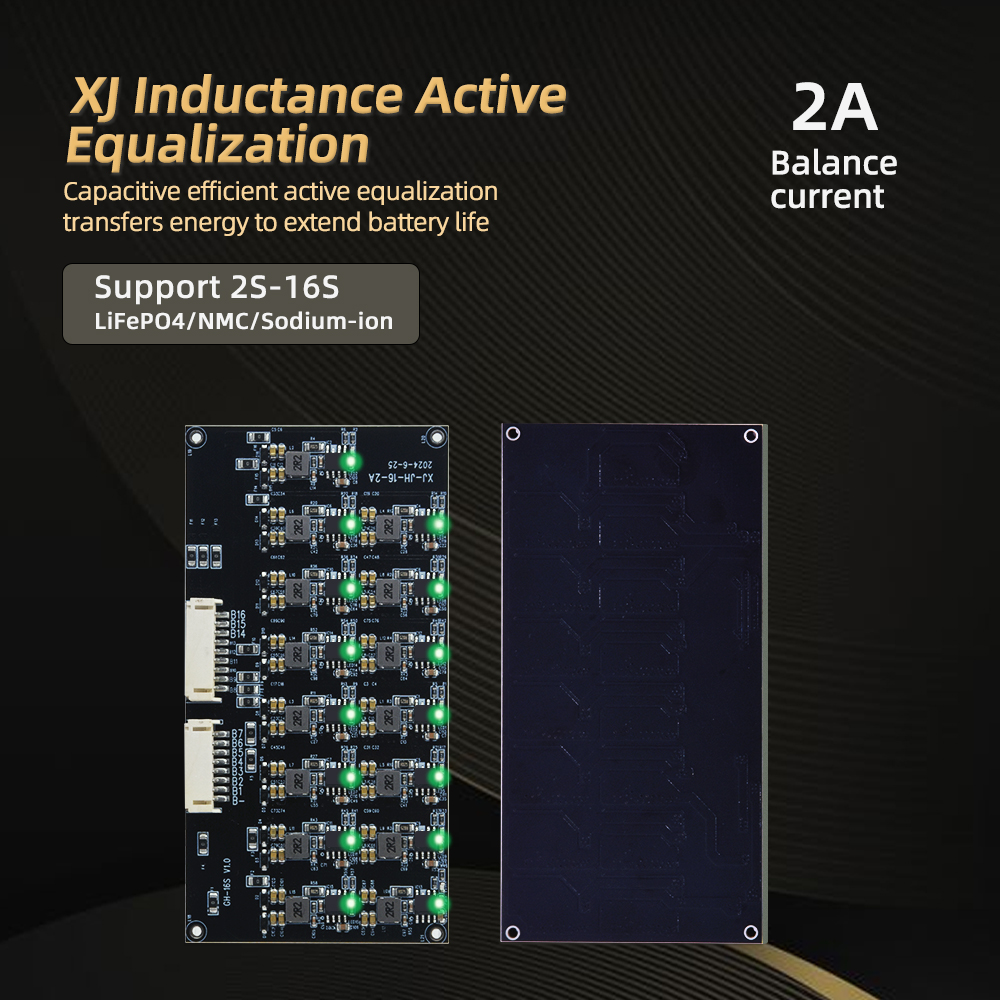

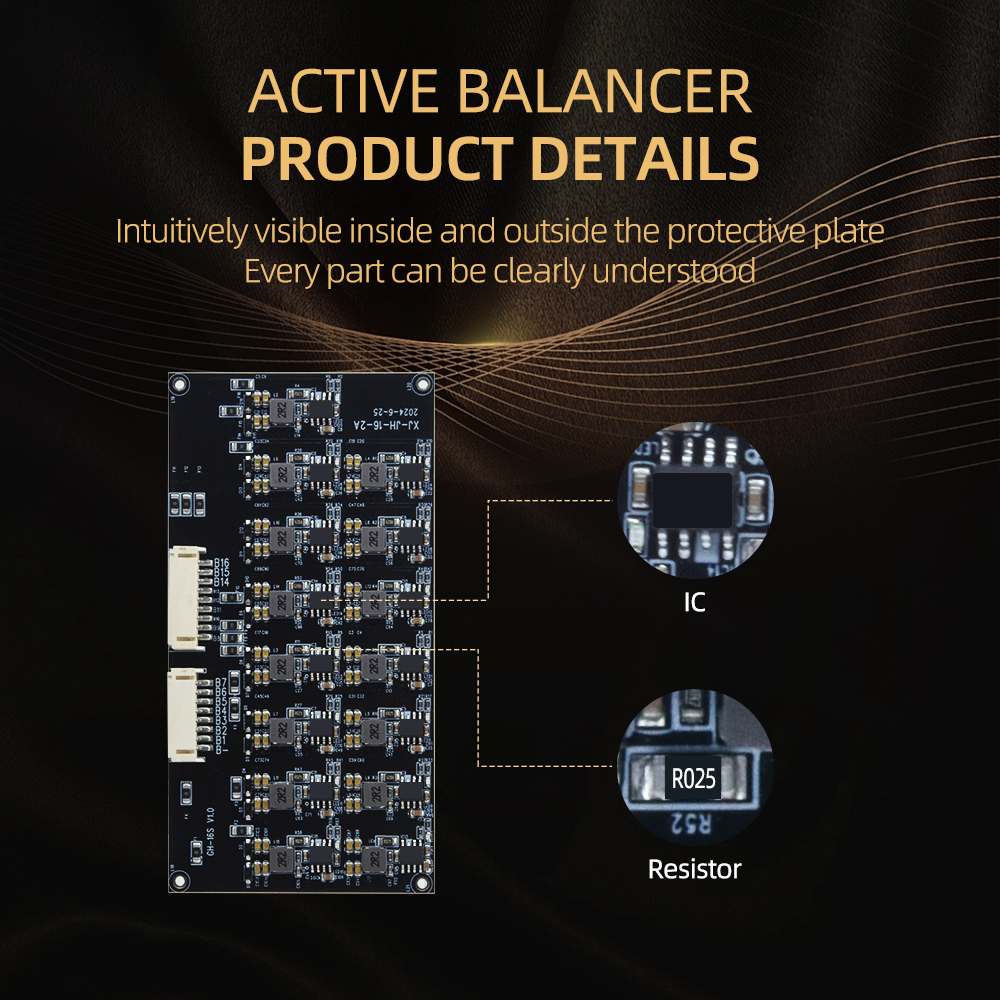

16S 2A Inductive Active Balancing is a technology that uses the characteristics of inductance to achieve charge and voltage balance among each cell in a lithium battery pack. It uses circuits to balance the charge and voltage between cells to achieve the best performance.
Features:
1.Fast Response Speed
The inductor 16S 2A active balancing board quickly adjusts each cell’s voltage to stay within a safe range. Its rapid response effectively minimizes voltage differences between cells.
2.Good Balancing Effect

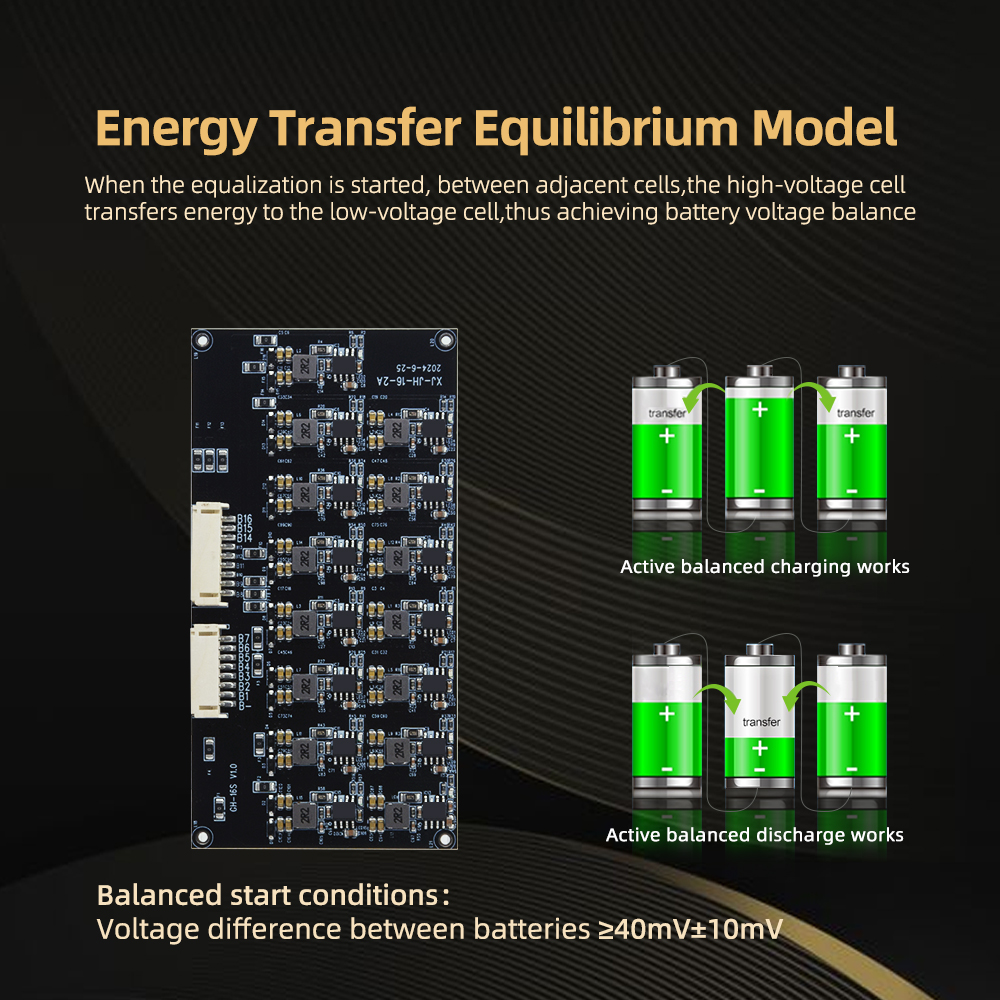

By transferring excess energy from high-voltage cells to low-voltage ones, this board achieves a consistent state acoss the battery pack. This enhances overall performance and stability.
3.Low Energy Loss
Unlike passive balancing, which wastes energy through resistor discharge, this board uses inductive energy transfer. It moves power from high-energy cells to low-energy ones, reducing waste and improving efficiency.

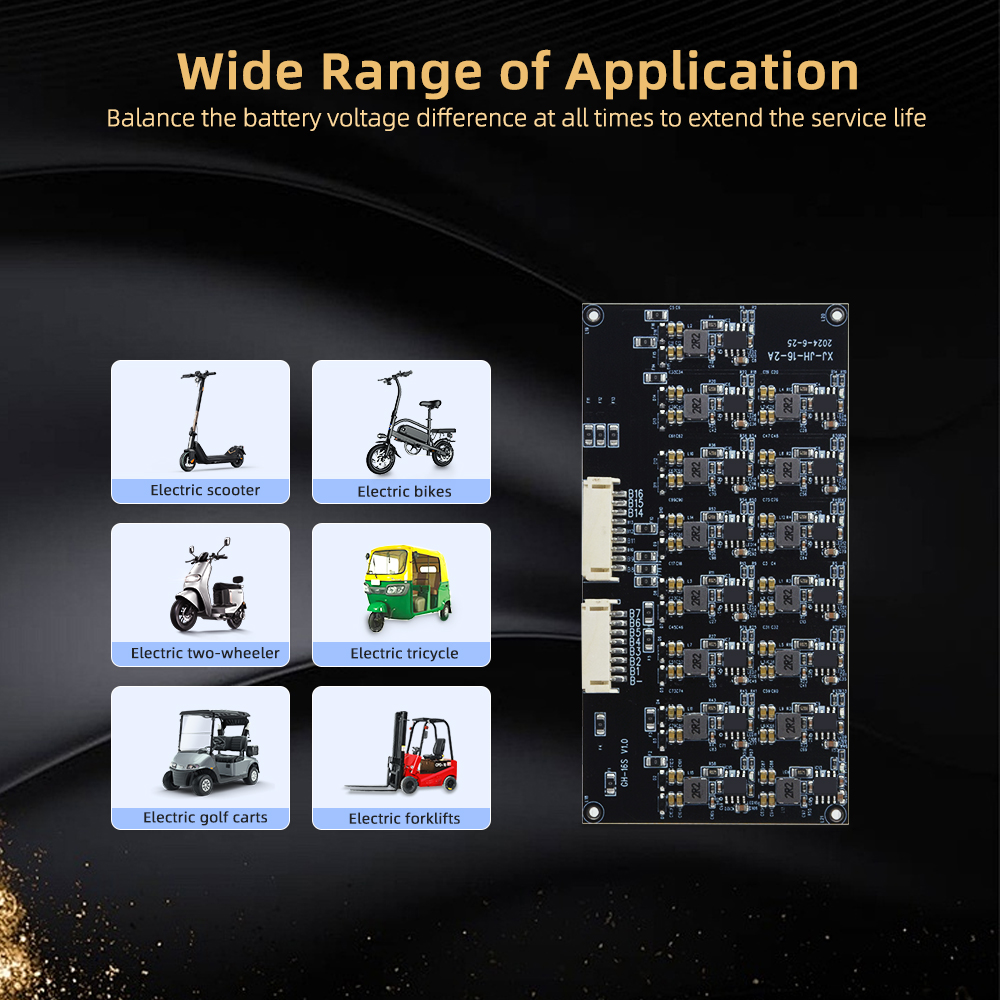

Application
The 16S 2A active equalizer is designed for large-capacity lithium battery packs, providing precise voltage regulation and equalization control. It handles 2A current, managing large fluctuations and ensuring stable output, making it ideal for high-current applications like electric vehicles and home energy storage
