Active Balancer
01

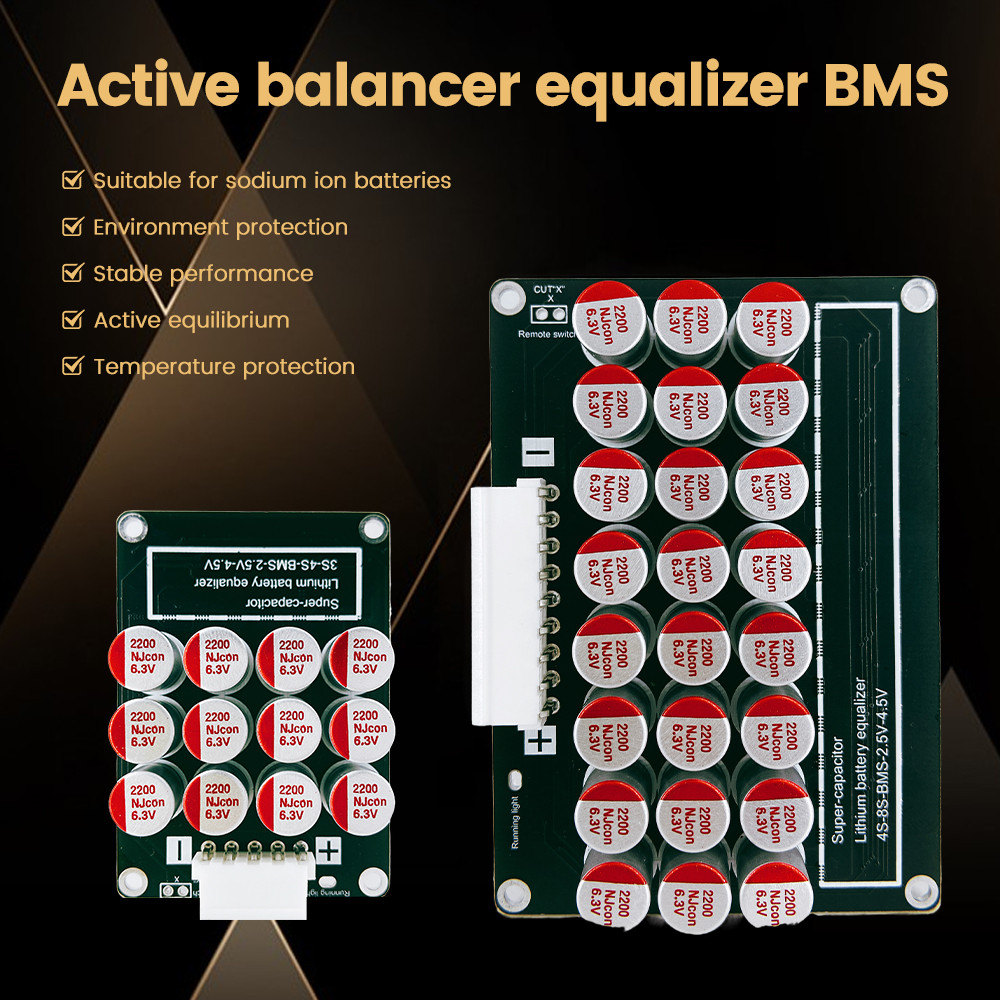

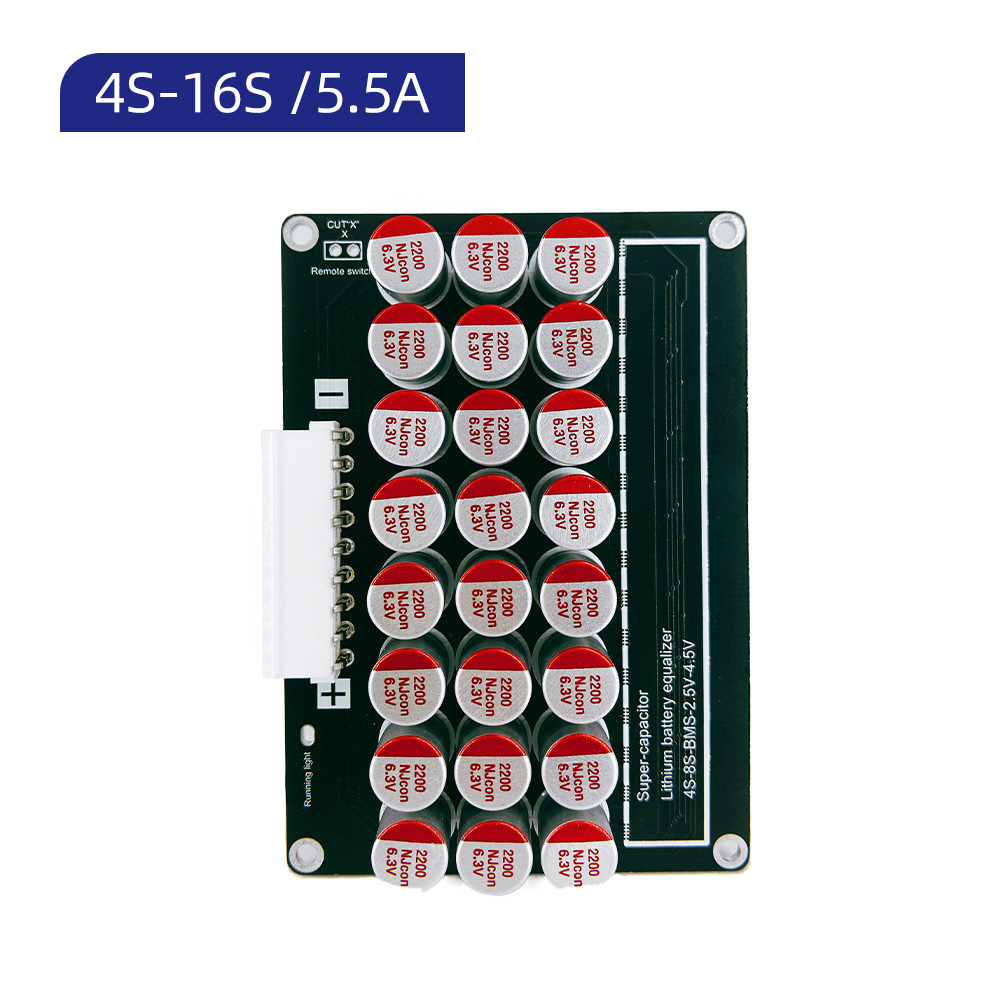

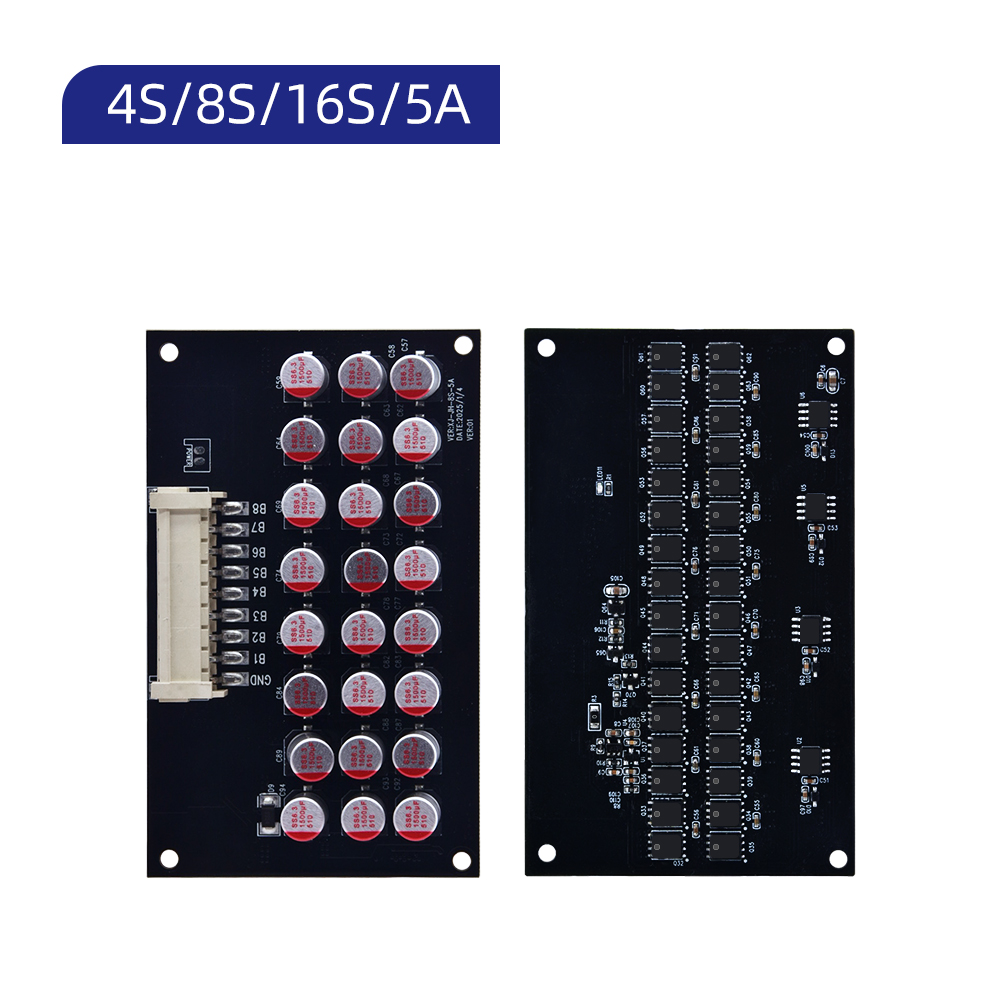

4S 8S 16S 5A active balancer suitable for 4S 8S 16S NMC/LFP/LTO battery packs
Features
High-precision voltage detection circuit range
1, Working voltage 2.5v-4.5V
2, Ultra-low power consumption 2uA;
3, This product will start as long as the adjacent voltage difference reaches 0.1 when charging, discharging or idle
4, Enters a completely dormant state when it is lower than 2.0v;
5, Higher than 4.5V will cause the product to burn out;

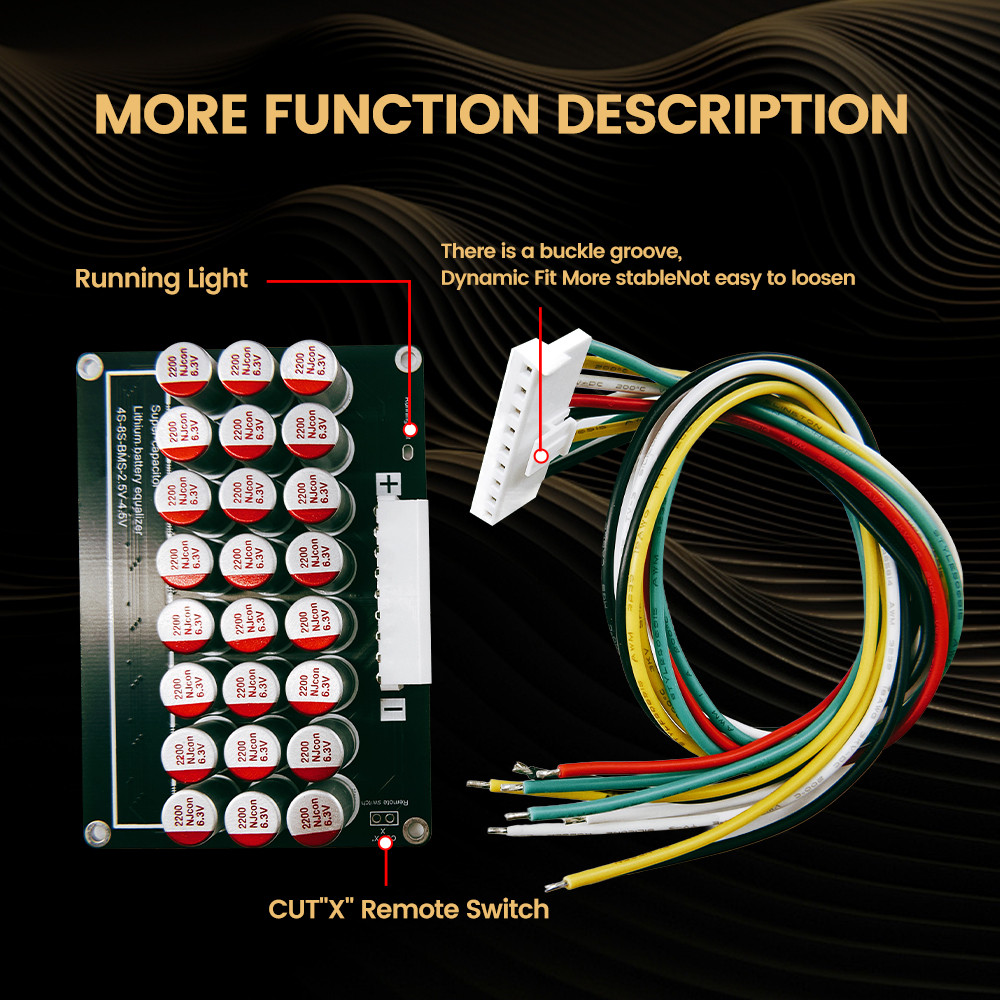

6, If the balance acquisition line is not connected, or the module indicator light will flash intermittently if it is accidentally disconnected;
7, Suitable for ternary batteries and lithium iron phosphate batteries
8, Active balancing board, can be used with the original protection board or the protection board with passive balancing, without conflict,
9, Cannot be used alone instead of the protection board, and can be used in parallel with the original protection board of the battery
Startup conditions

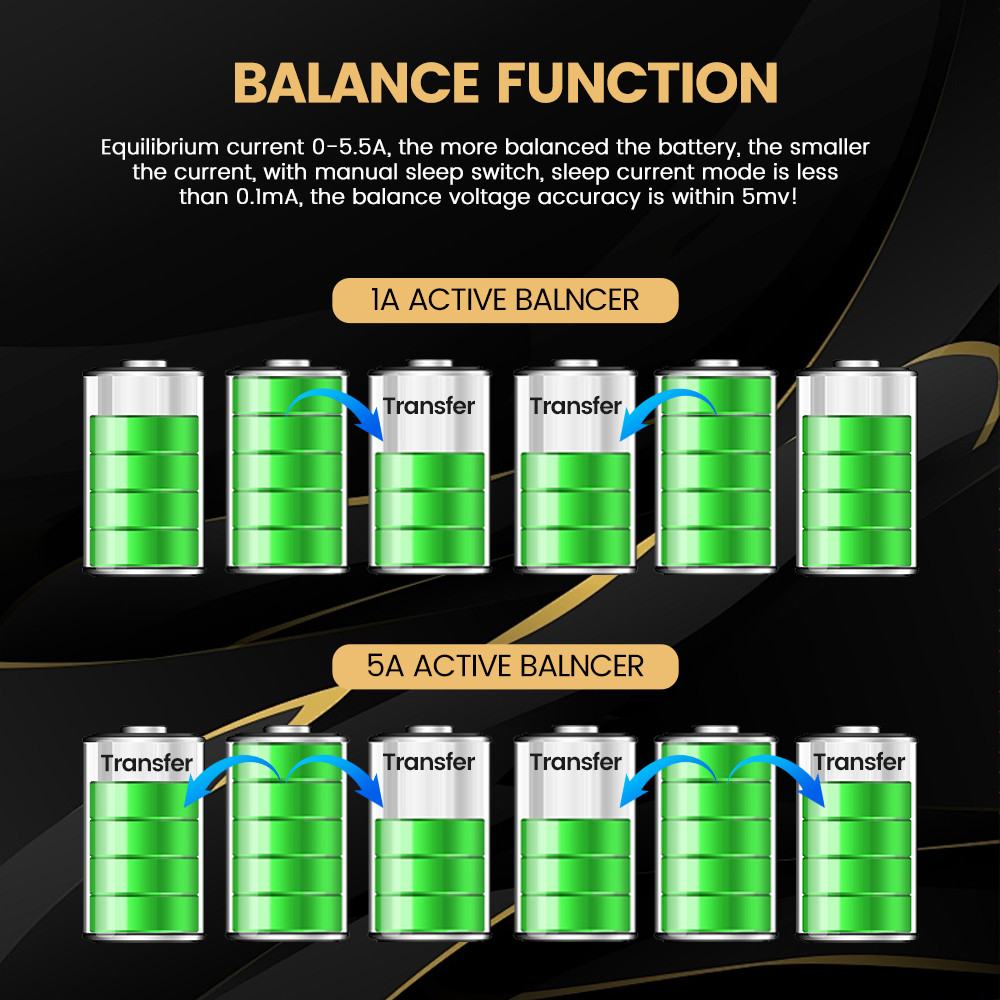

When the voltage difference between two adjacent strings is greater than 0.1V, balancing will start automatically. When the voltage difference between two adjacent strings is greater than 0.1V, balancing will start automatically. When balancing reaches about 0.03V, it will stop working automatically. Balancing current: The balancing current will be automatically selected according to the voltage difference and capacity of the battery. The balancing current will be automatically selected between 0.5A and 5.5A. The maximum balancing current does not exceed 5.5A. The balancing light is on, indicating normal operation. The balancing light is off and in standby mode. The balancing light flashes to remind you that the string is missing.
Application

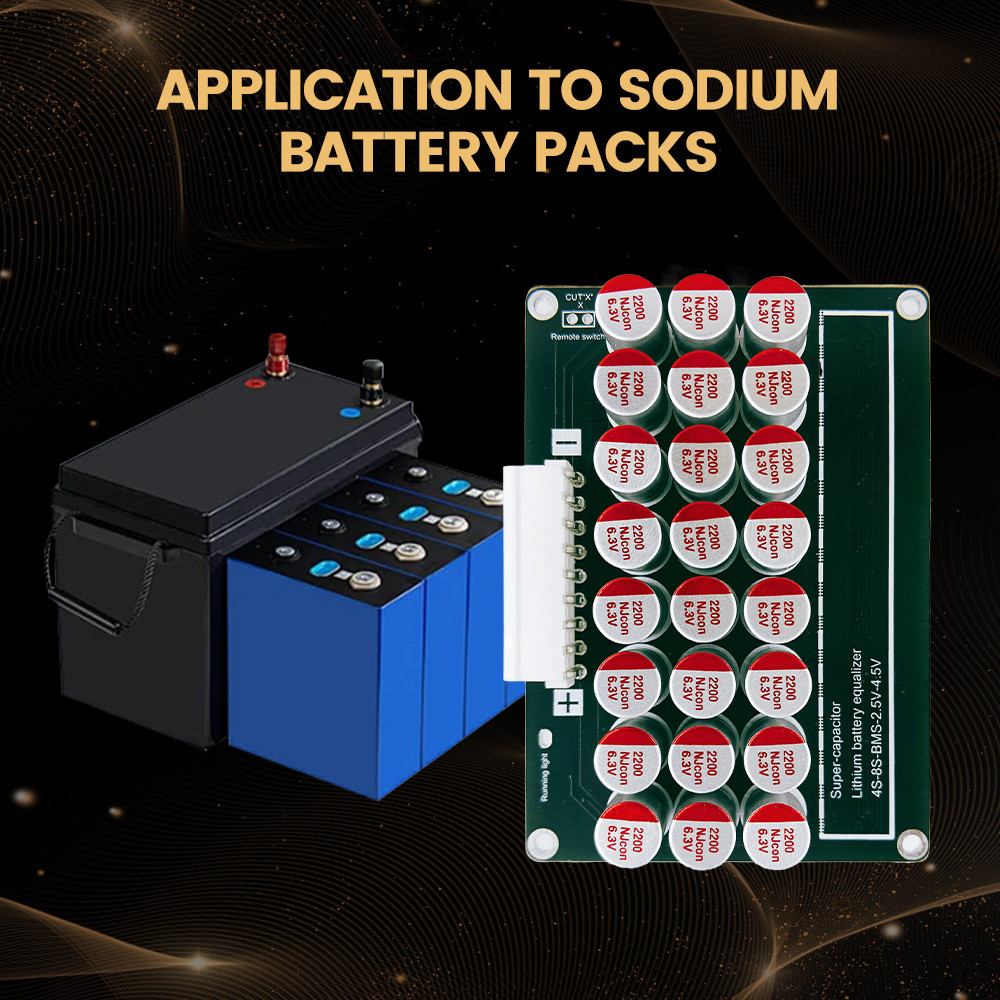

It is mostly used in large-capacity battery packs for outdoor energy storage, household energy storage, industrial and commercial energy storage, RV modification, low-speed vehicles, solar photovoltaic and other products. It can also be temporarily used for battery equalization maintenance and repair. It mainly plays the role of repairing the battery.
Type |
Specification |
(1) 4S 8S 16S 5A Active balancer |

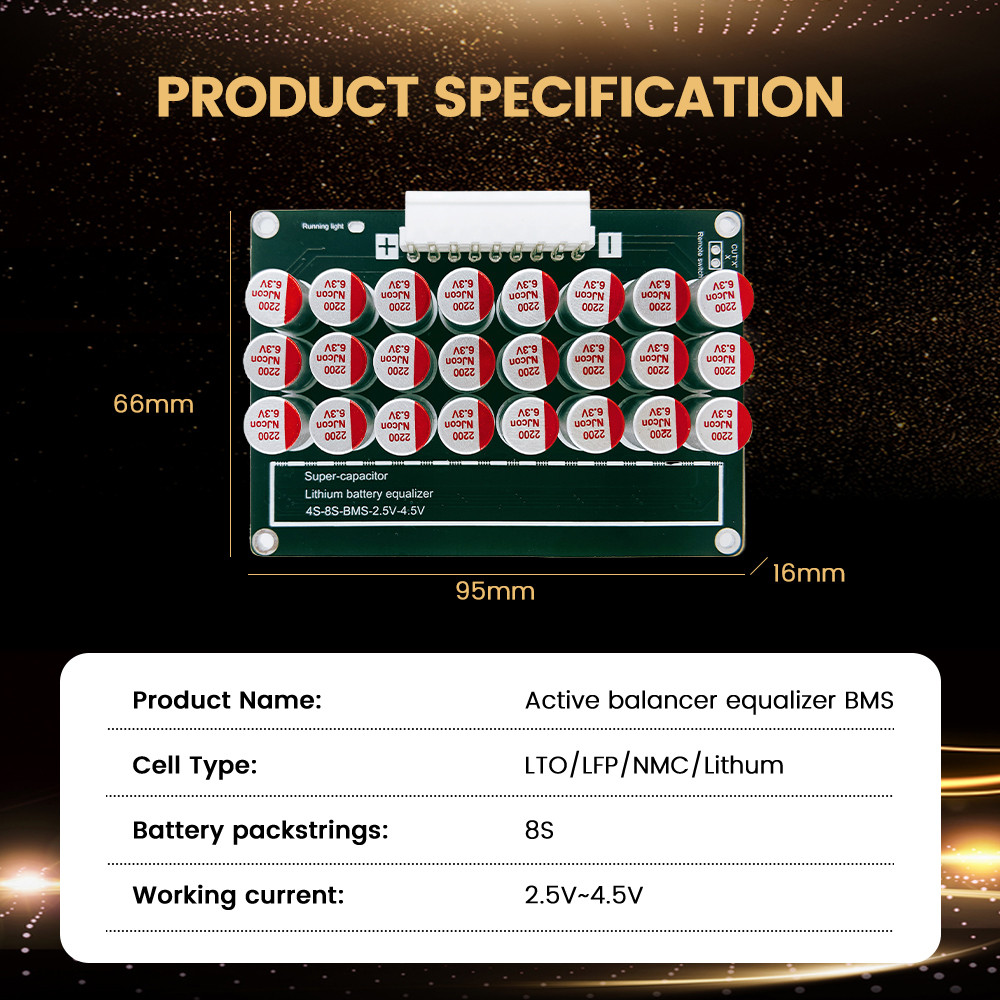

Supports 4S 8S 16S Batteries. Battery Type: NMC/LFP/LTO 4S Dimension:47.5*66 * 16mm 8S Dimension95*66*16mm 16S Dimension:121*66 * 16mm |
