3S BMS

This model XJ-D042 3S 12V 8A, support 3-cell LifePO4/NMC/L-ion battery. Application to electric power tools, sweeping robot, etc. With overcharge/overdischarge/overcurrent/short-circuit protection and NTC, optional with nickel strip or without nickel strip.

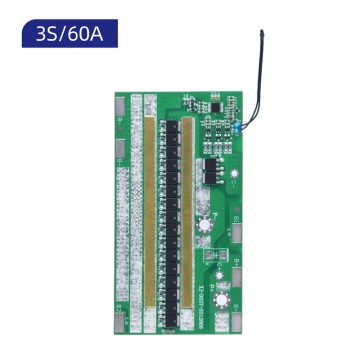

This model XJ-D037 3S 12V 60A, support 4-cell LifePO4/NMC/L-ion battery. Seperate port, charge 10A discharge 60A, with balance and NTC temperature sensors. Passive balance, balance current is 50±10mA.With charge and discharge current protection. Application to electric power tools and electric drills, portable power supply...

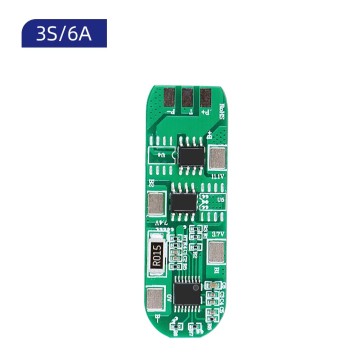

This model XJ-3S18650-T-4M 3S 12V 6A, support 3-cell LifePO4/NMC/L-ion battery. Application to electric power tools, sweeping robot...With overcharge/overdischarge/overcurrent/short-circuit protection and NTC, optional with nickel strip or without nickel strip.

This model XJ-D171 3S 12V 3A, support 3-cell LifePO4/NMC/L-ion battery. Application to electric power tools, sweeping robot...With overcharge/overdischarge/overcurrent/short-circuit protection and NTC.

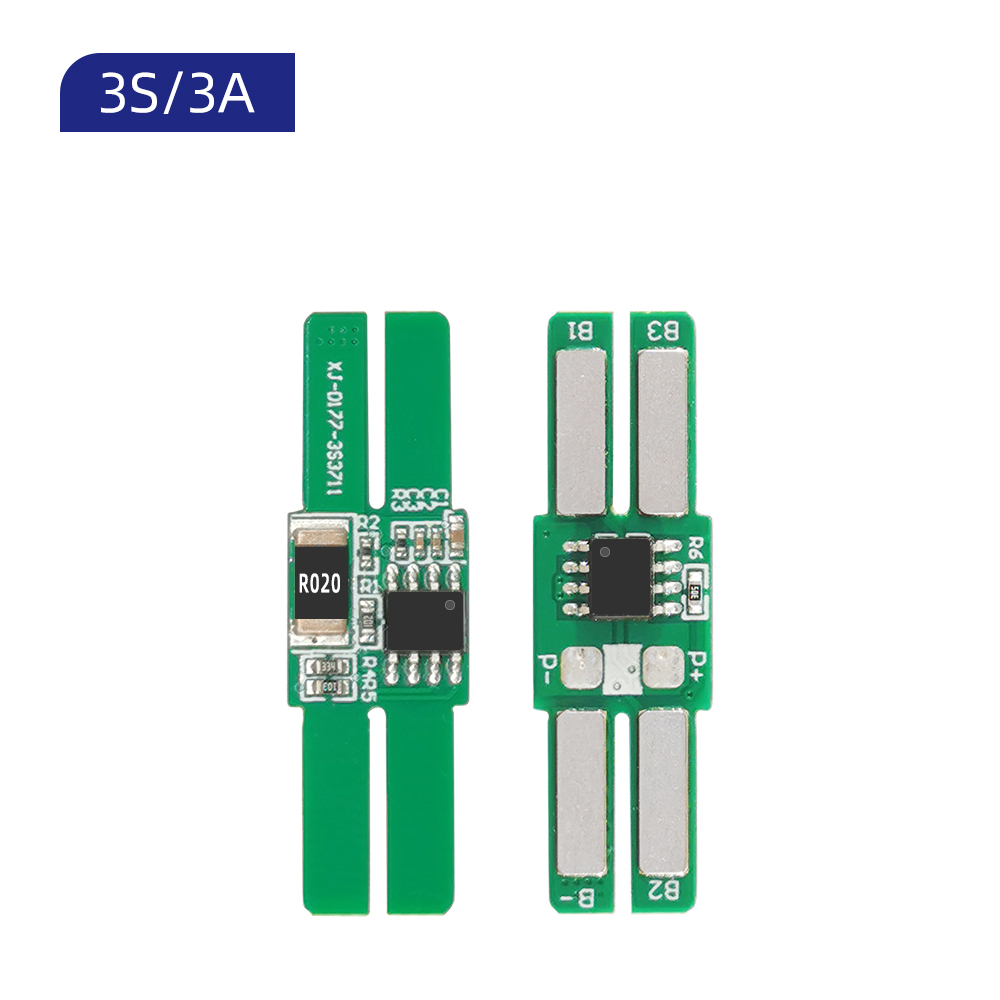

This model XJ-D177 3S 12V 3A, support 3-cell LifePO4/NMC/L-ion battery. A common port has the same continuous discharge and charge current. Application to electric power tools...

This model XJ-D047 3S 12.6V 3A/7A, support 3-cell LifePO4/NMC/L-ion battery. A common port has the same continuous discharge and charge current. Continuous 3A output current with a maximum temperature of 40℃. The operating temperature range of this BMS is -40 to 85℃.

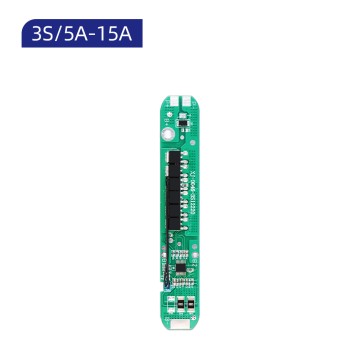

This model XJ-D046 3S 12V 5A/10A/15A, support 3-cell LifePO4/NMC/L-ion battery. Common port, the continuous discharge and charge current are the same. Charging low-temperature protection -10℃±3℃. Charging high-temperature protection 50℃±3℃. Discharge high-temperature protection 70℃±3℃. The recovery hysteresis temperature is 10℃ for both.

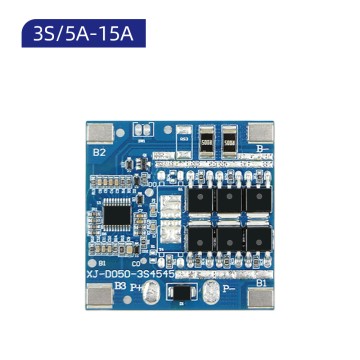

This model XJ-D050 3S 12V 10A/15A, support 3-cell LifePO4/NMC/L-ion battery. Common port, the continuous discharge and charge current are the same. Discharge overcurrent protection is 40±5A, overcurrent protection delay is 100±50mS. Application to electric power tools and electric drills...

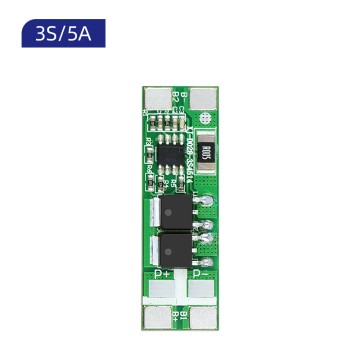

This model XJ-D028, 3S 5A, supports 3-cell lifePO4/NMC/lithium battery. The continuous discharge/charger current of the battery pack is 5A. Application to small electric power tools for 3-cells battery... PCB board size: 45*14*3.4MM, application electri power tools, solar street light...

This model XJ-D009, 3S 3A, supports 3-cell LiPO4/NMC/lithium battery. The continuous discharge/charger current of the battery pack is 3A. Application to electric power tools for 3-cells battery... Used in digital products for 3-cell battery, and 3A continuous working current.

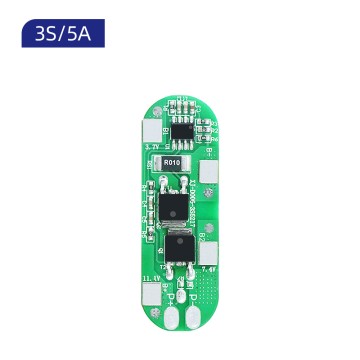

This model XJ-D006, 3S 5A, supports 3-cell lifePO4/NMC/lithium battery. The continuous discharge/charger current of the battery pack is 5A. Application to electric power tools for 3-cells battery...

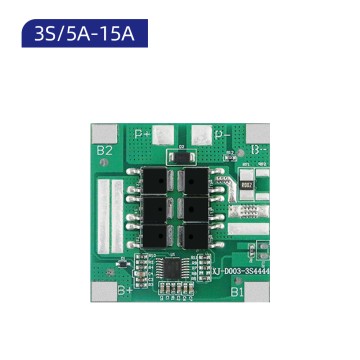

This model XJ-D003, 3S 5A/10A/15A, supports 3-cell lifePO4/NMC/lithium battery. The continuous discharge/charger current of the battery pack is 5A/10A/15A. Application to electric power tools for 3-cells battery...
